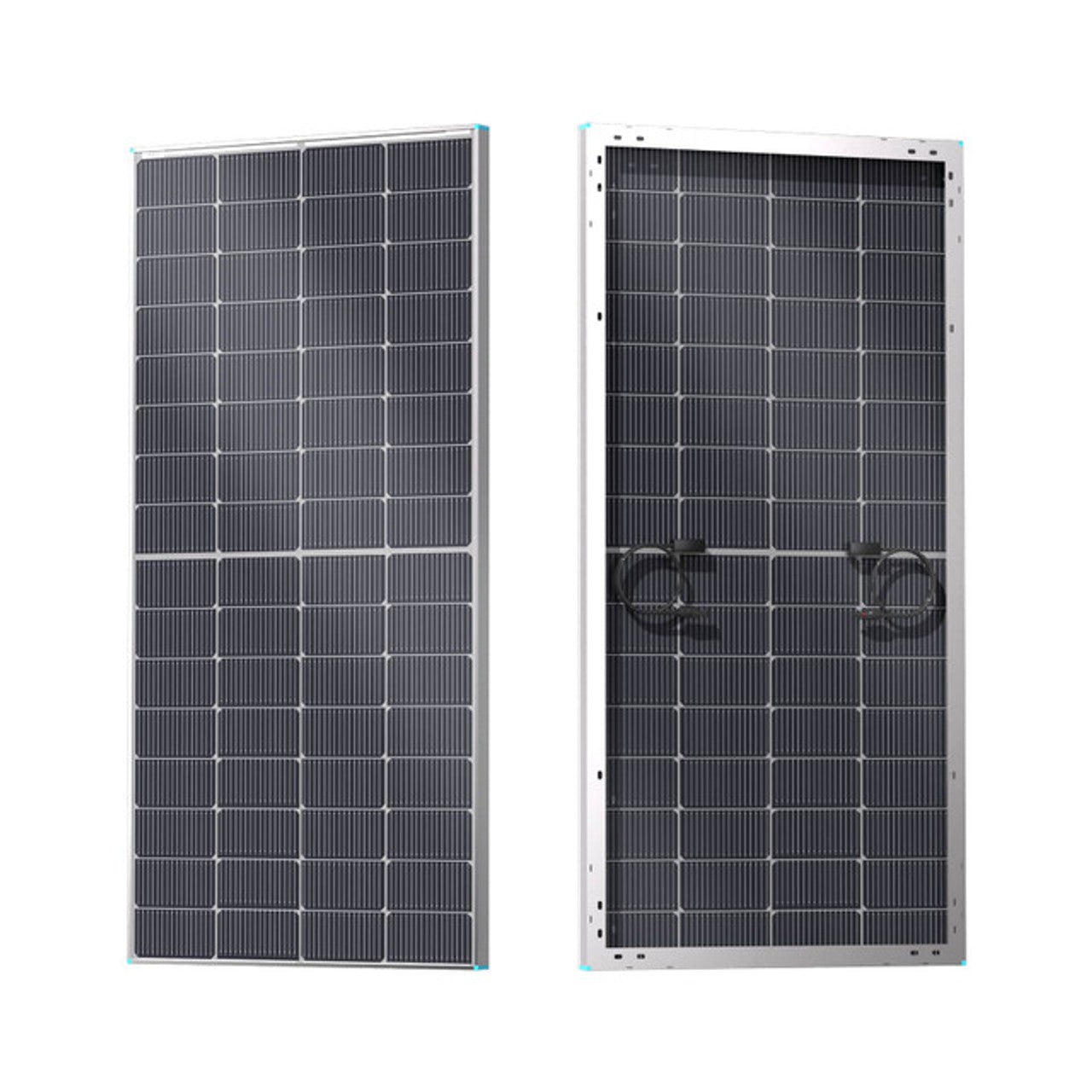

Renogy 16BB N-Type 250 Watt Bifacial Fixed Solar Panel

Renogy TOPCon Solar Panels: Unrivalled Efficiency, Consistent Performance

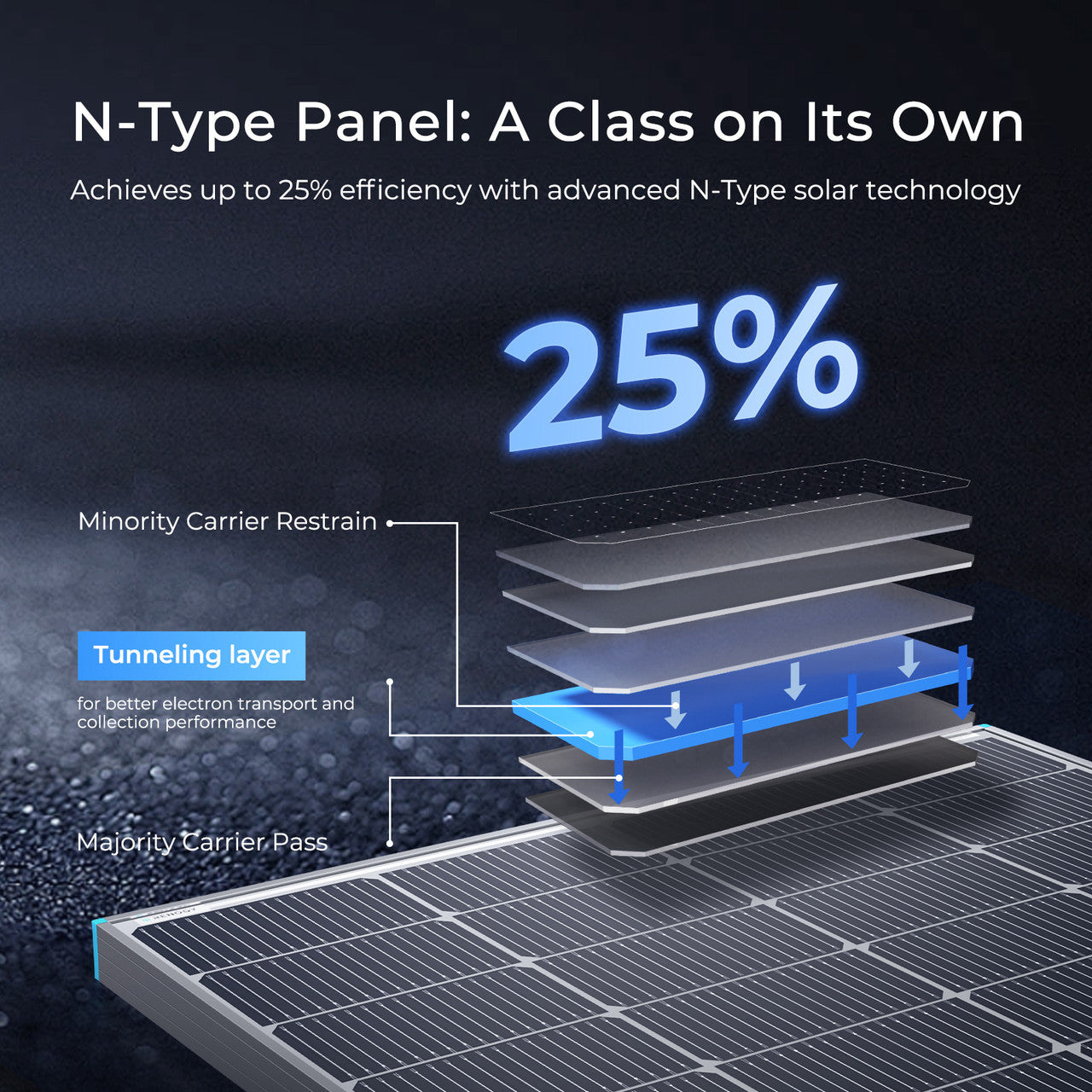

Renogy’s N-Type Solar Panels surpass traditional p-type PERC panels with their higher cell efficiency, extended lifespan, and consistent high performance, even in challenging conditions.

Increased Output and Bifacial Advantage
The N-Type Bifacial Solar Panel delivers 10% higher bifaciality and an additional 20W power output compared to conventional p-PERC panels, maximising energy production.

Engineered for Premium Quality
Built with precision, this panel includes low-iron tempered glass, POE film, N-Type solar cells, a transparent backsheet, and a robust aluminum frame. These materials ensure unmatched durability and long-lasting performance.

Optimised for Hot Climates
Featuring a temperature coefficient of -0.29%/°C, Renogy’s N-Type panels maintain cooler operations in high temperatures, providing superior energy generation in hot climates compared to PERC panels.

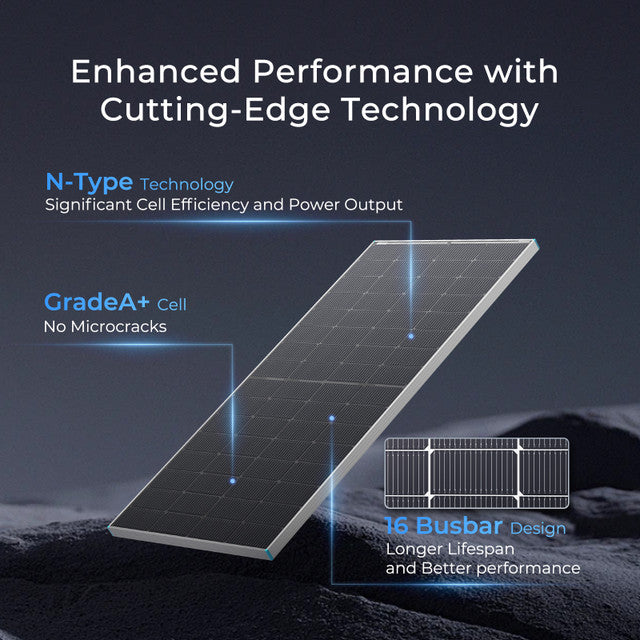

Advanced 16-Busbar Technology
Equipped with 16-busbar (16BB) cell technology, these panels enhance energy conversion efficiency and improve durability by minimising the risk of microcracks.

Reinforced Frame for Greater Durability
With an aluminium alloy frame over 1.1mm thick, this panel offers superior structural strength, outperforming competitors and withstanding harsh weather conditions.

Broad Charge Controller Compatibility
Renogy’s 100W 12V N-Type Solar Panels are designed with an open-circuit voltage of less than 25V, making them compatible with 99% of MPPT and PWM charge controllers.

Effortless Power, Compactly Installed
This 100W TOPCon solar panel is 8% lighter and 11% smaller than a PERC 100W solar panel. This makes installation easier and allows for more space for panel expansion.
Premier Choice for Multiple Applications

Specifications

Max Power at STC: 250W

Module Efficiency: 21.2%

Open Circuit Voltage: 22.35V

Short Circuit Current: 13.49A

Optimum Operating Voltage: 19.52V

Optimum Operating Current: 12.81A

Maximum System Voltage: 1000VDC

Maximum Series Fuse Rating: 30A

Operating Temperature: -40°F~194°F / -40℃~90℃

Dimensions: 1547x763x30mm/60.9x30.0x1.2in

Weight: 12.4kg/27.3 lbs

Warranty

Material and workmanship warranty: 10 Years

Performance Warranty: 5-year 95% output warranty 10 10-year 90% output warranty 25 25-year 80% output warranty
