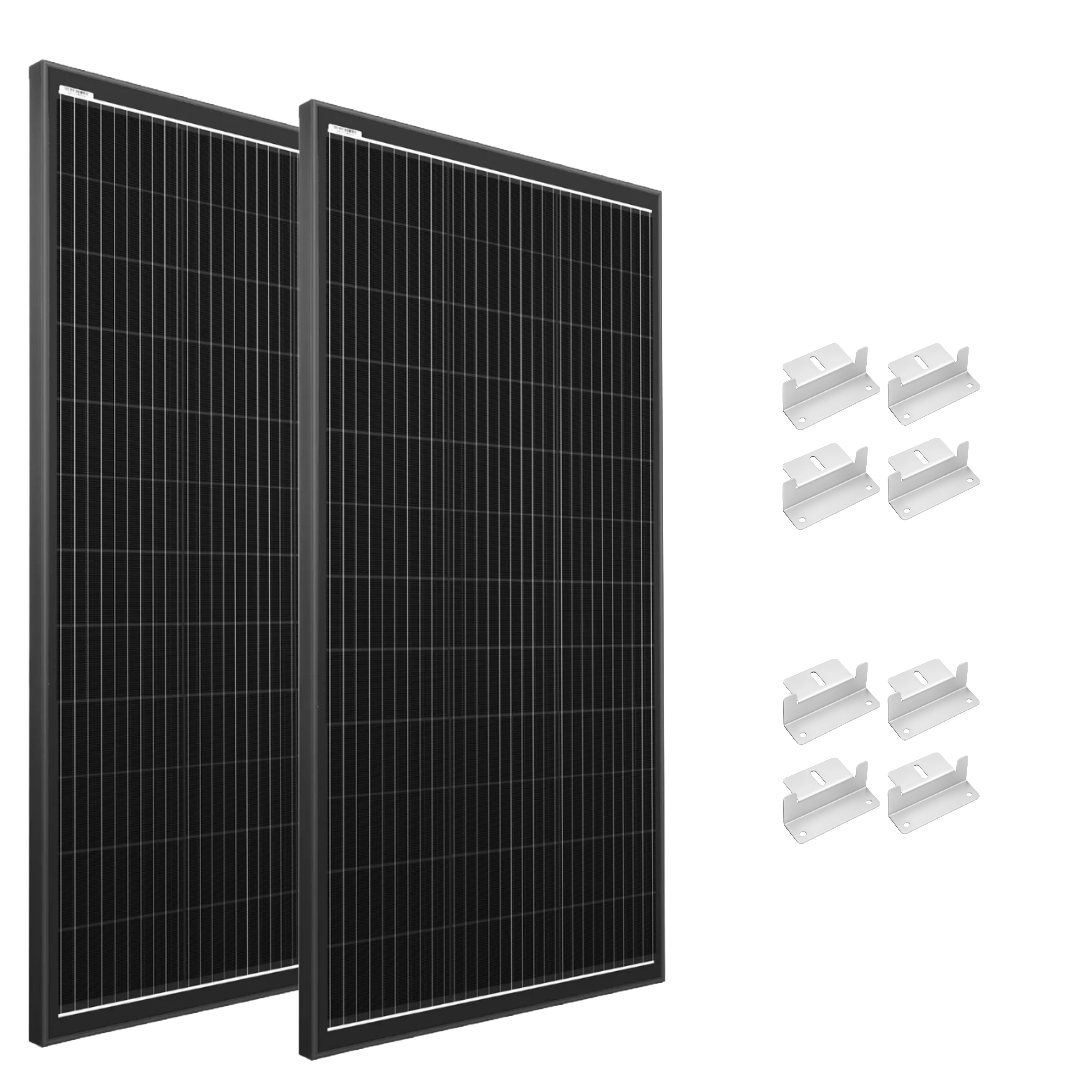

2 × 400W 12V Fixed Shingled Mono Panels + 2 Sets Mounting Brackets

Power your off-grid adventures with confidence. This premium 800 W solar panel bundle includes two high-efficiency 400 W 12 V Fixed Shingled Mono Solar Panels and two sets of heavy-duty aluminium mounting brackets, providing a complete solution for caravans, camper trailers, RVs, 4WD setups, boats, and off-grid cabins across Australia.

✅ What’s Included

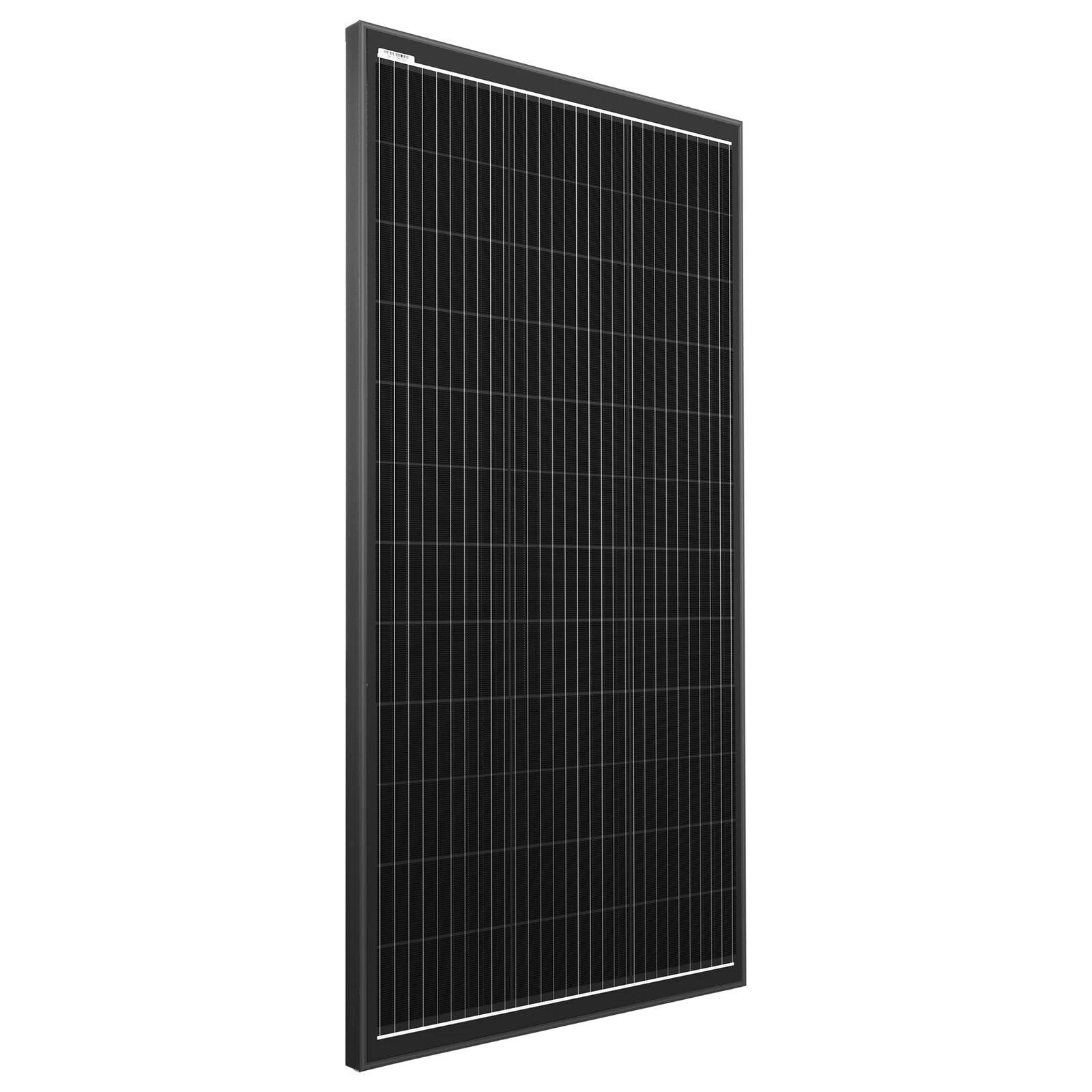

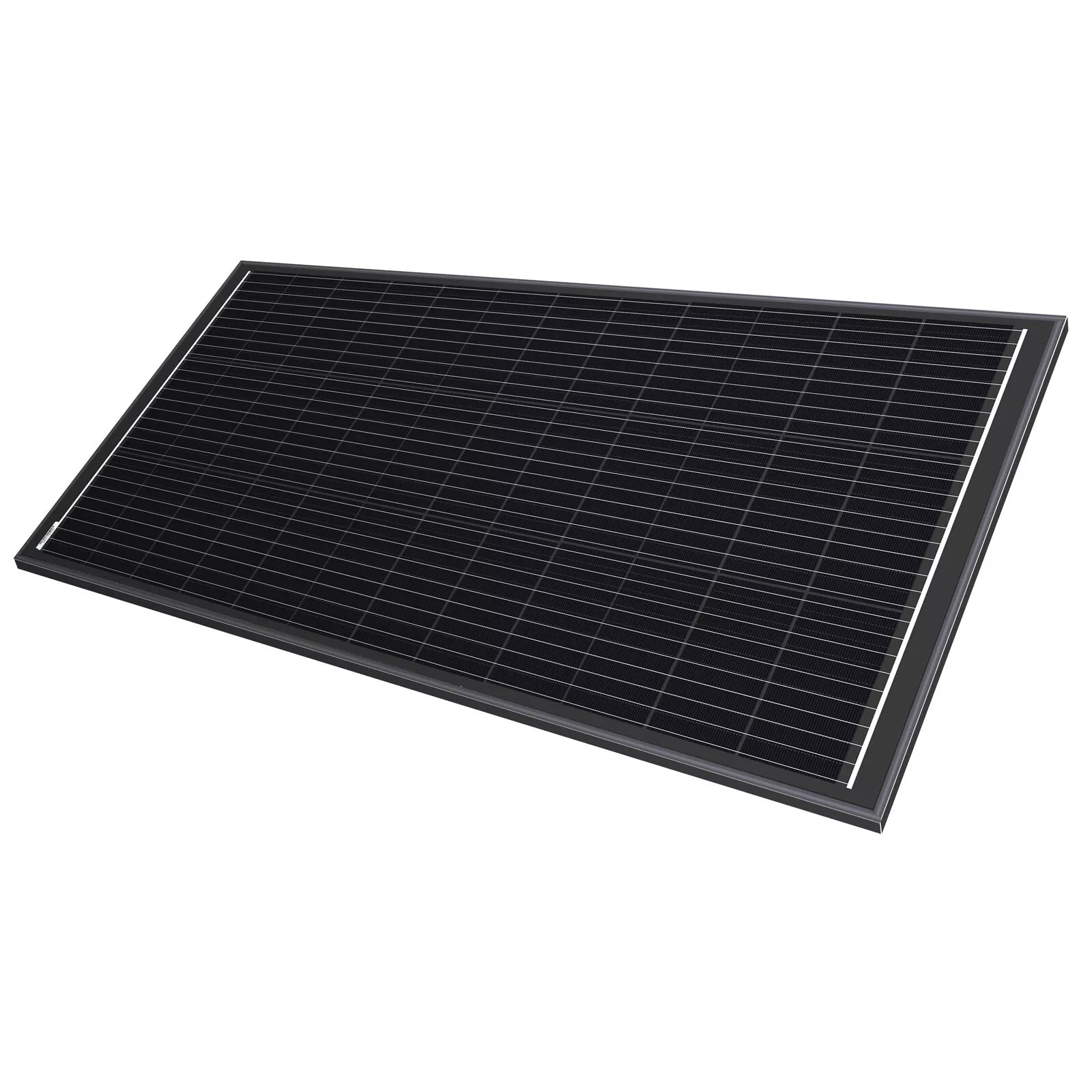

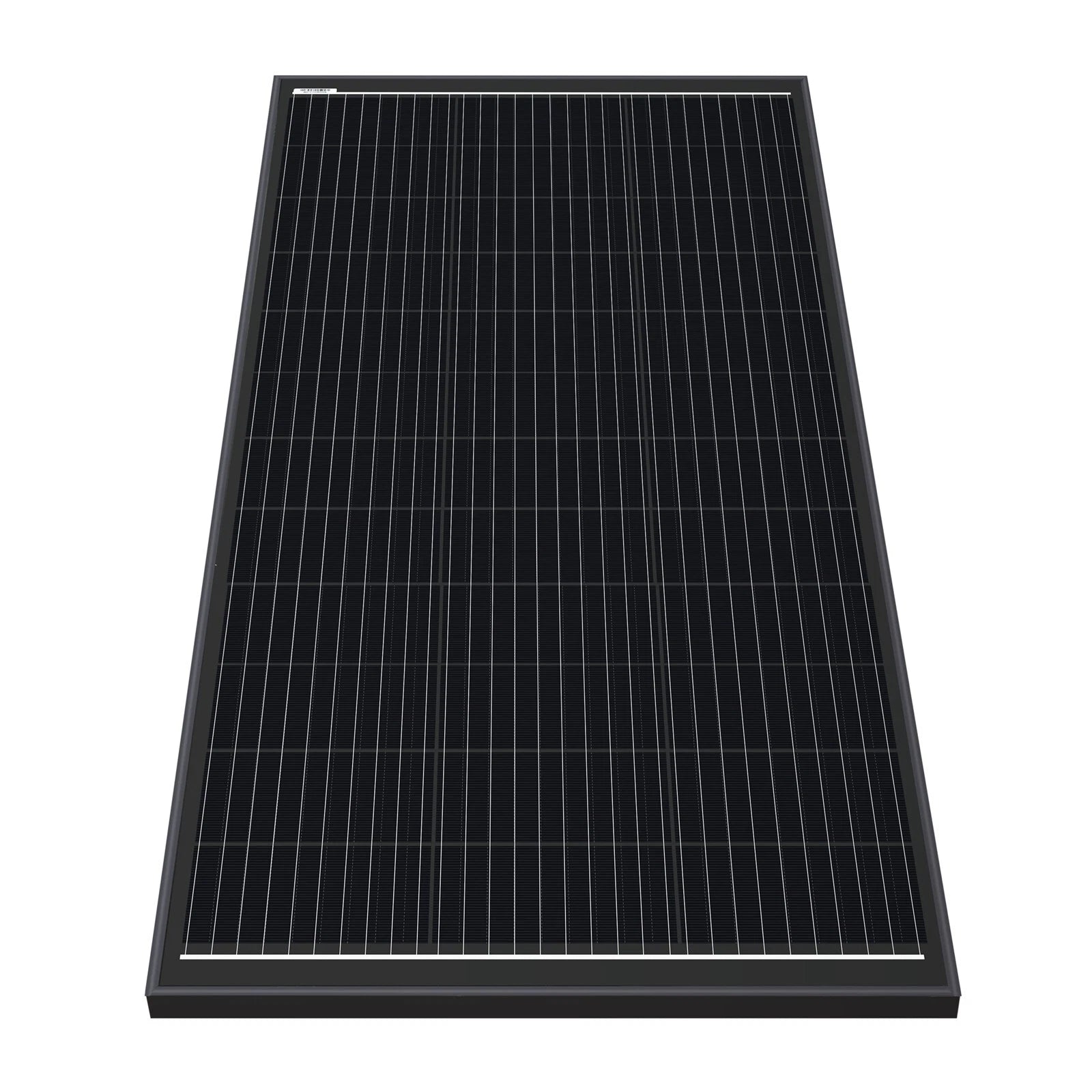

• 2 × 400 W 12 V Fixed Shingled Mono Solar Panels

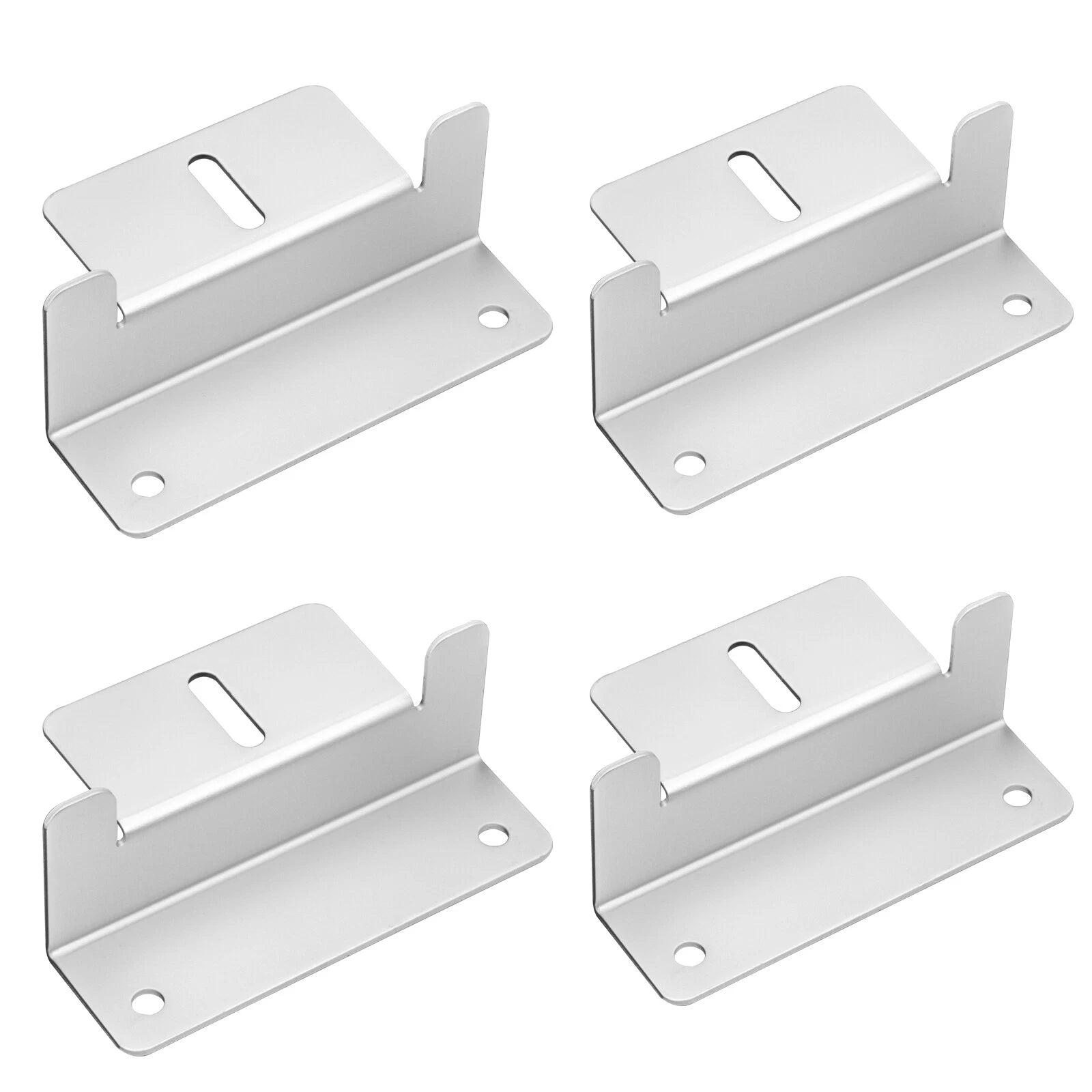

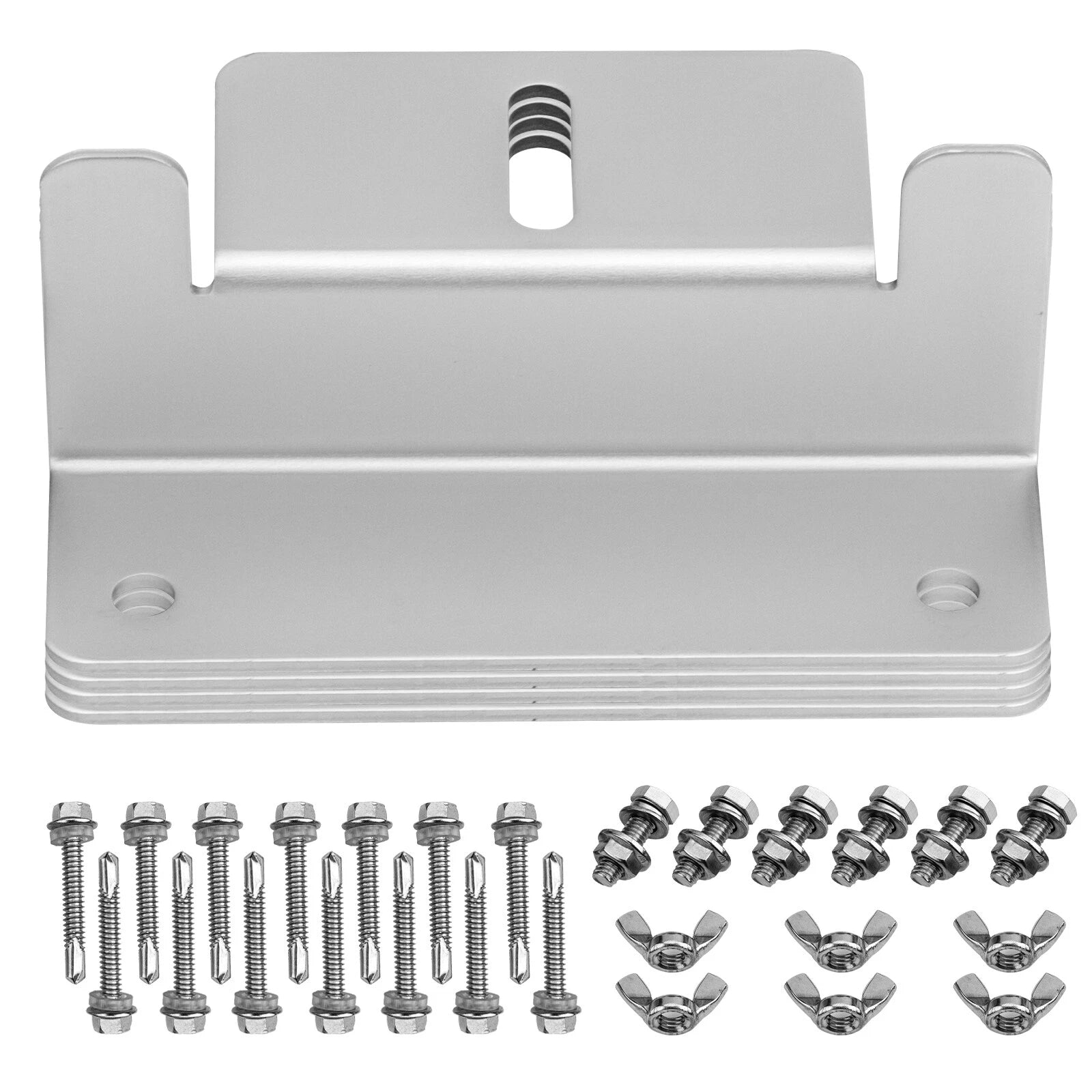

• 2 × Sets of 4-piece Aluminium Z-Bracket Mounting Kits (8 brackets total)

• MC4-compatible output leads for quick plug-and-play setup

☀️ Key Features

High-Output 800 W Solar Generation
Delivering up to 800 W of clean DC power, this bundle is ideal for 12 V or 24 V battery systems, powering fridges, lighting, pumps, appliances, and chargers during off-grid use.

Advanced Shingled Monocrystalline Cells
Each panel uses overlapping shingled A-grade mono cells that reduce resistive losses, boost low-light efficiency, and maintain better real-world output compared to standard panels.

Rugged Fixed-Mount Build
Built for Australian conditions with tempered glass and an anodised aluminium frame — tested to withstand heat, wind, hail and coastal weather.

Heavy-Duty Mounting Hardware
Two complete Z-bracket mounting kits are included, made from corrosion-resistant aluminium for secure, long-term installation on caravan roofs, trailers or ground frames.

Versatile Wiring Options
Wire the panels in parallel for 12 V systems or in series for 24 V setups. Compatible with most MPPT and PWM charge controllers.

⚙️ Specifications (Each Panel)

• Maximum Power (Pmax): 400 W

• Voltage at Max Power (Vmp): 18.5 V

• Current at Max Power (Imp): 21.6 A

• Open Circuit Voltage (Voc): 22.2 V

• Short Circuit Current (Isc): 23.7 A

• Cell Type: Monocrystalline Shingled (A-Grade)

• Operating Temp: −40 °C – +85 °C

• Size: 1480 × 680 × 35 mm

• Weight: 11.5 kg

⚡ Ideal For

• Caravans & RVs

• 4WD & Touring setups

• Off-grid homes or cabins

• Marine & boating solar

• Battery charging & inverter systems

🔧 Installation Tips

• Mount facing north (in Australia) with good ventilation underneath for cooling.

• For 12 V systems, connect both panels in parallel for maximum current.

• For 24 V systems, wire in series for higher voltage and reduced cable loss.

• Use UV-resistant solar cable and proper fusing per AS/NZS 5033 standards.

• Always secure brackets to solid roof points and seal penetrations properly.

🌿 Why Choose This Bundle

Save time and money with this complete plug-and-mount solar kit — no need to source brackets separately. With 800 W total output and ultra-efficient shingled cell technology, you’ll enjoy reliable solar charging wherever your adventure takes you.

Perfect for powering fridges, lights, fans, pumps, and 12 V/24 V appliances off-grid — backed by Star Power’s Australian support team.
