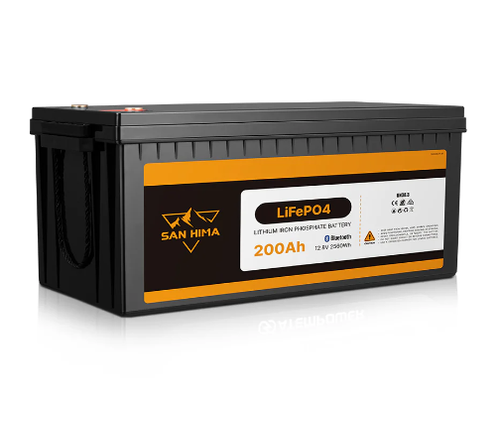

San Hima 12V 200Ah Lithium Iron Phosphate Battery LiFePO4 w/ Bluetooth Built-in BMS

San Hima 12.8V 200Ah smart LiFePO4 battery with Bluetooth monitoring and approximately 2,560Wh of nominal energy. It is designed as a deep-cycle house battery for compatible caravan, camper, 4WD and off-grid power systems—not as an engine-starting battery.

The mobile app provides real-time visibility of capacity, battery status and temperature. A built-in BMS protects against supplier-listed overvoltage, overcurrent, overdischarge, overcharge and over-temperature conditions.

Key specifications

• Cell type: Grade A prismatic LiFePO4
• Nominal voltage: 12.8V
• Rated capacity: 200Ah
• Nominal energy: approximately 2,560Wh
• Supplier-listed cycle life: 6,000 cycles at 0.2C and 80% depth of discharge
• Recommended charge current for maximum life: 40A
• Maximum continuous charge current: 100A
• Maximum continuous discharge current: 200A
• Maximum pulse discharge current: 250A for 3 seconds
• Charge cut-off voltage: 14.4V
• Discharge cut-off voltage: 10.8V
• Listed series/parallel configuration: up to 2S/2P
• Self-discharge: less than 3% per month
• Listed operating temperature: 0°C to 55°C
• Storage temperature: -20°C to 45°C
• Supplier-listed certifications: CE and IEC 62619
• Package dimensions: 555 × 305 × 255mm
• Package weight: 20.4kg
• Warranty: 5 years

Bluetooth battery monitoring

Download the compatible app from the Apple App Store or Google Play and connect by Bluetooth to view the battery's capacity, operating status and temperature. Bluetooth monitoring is useful for checking the house battery without relying only on a separate voltage display.

System compatibility

Confirm the battery voltage, BMS current limits, charger profile, cable size, fuse protection, isolation and inverter demand before ordering. Use a LiFePO4-compatible charger or MPPT solar charge controller configured within the listed limits.

When selecting a pure sine wave inverter, account for inverter losses, appliance start-up surge and simultaneous DC loads. Continuous battery current must stay within the 200A rating and the complete system must be appropriately sized.

Compare more 12V lithium batteries or browse the broader deep-cycle battery range.

Series and parallel installations

The supplied specification lists a maximum 2S/2P arrangement. Multi-battery banks require identical batteries at closely matched state of charge, correct interconnects and protection, and confirmation against the current San Hima manual and warranty terms.

Frequently asked questions

How much energy does this 200Ah battery store?

Its nominal energy is approximately 2,560Wh (12.8V × 200Ah). Actual usable AC energy will be lower after inverter and wiring losses and any reserve maintained for battery life.

Can it replace an AGM battery?

It may suit many AGM upgrades, but it is not automatically a drop-in replacement. Check charger and solar-controller profiles, BMS current, wiring, fusing, physical dimensions and system voltage.

Can I use it as a starter battery?

No. This product is presented as a deep-cycle house battery, not an engine-starting battery.

What's included

• 1 × San Hima 200Ah smart LiFePO4 battery
• 1 × User manual
