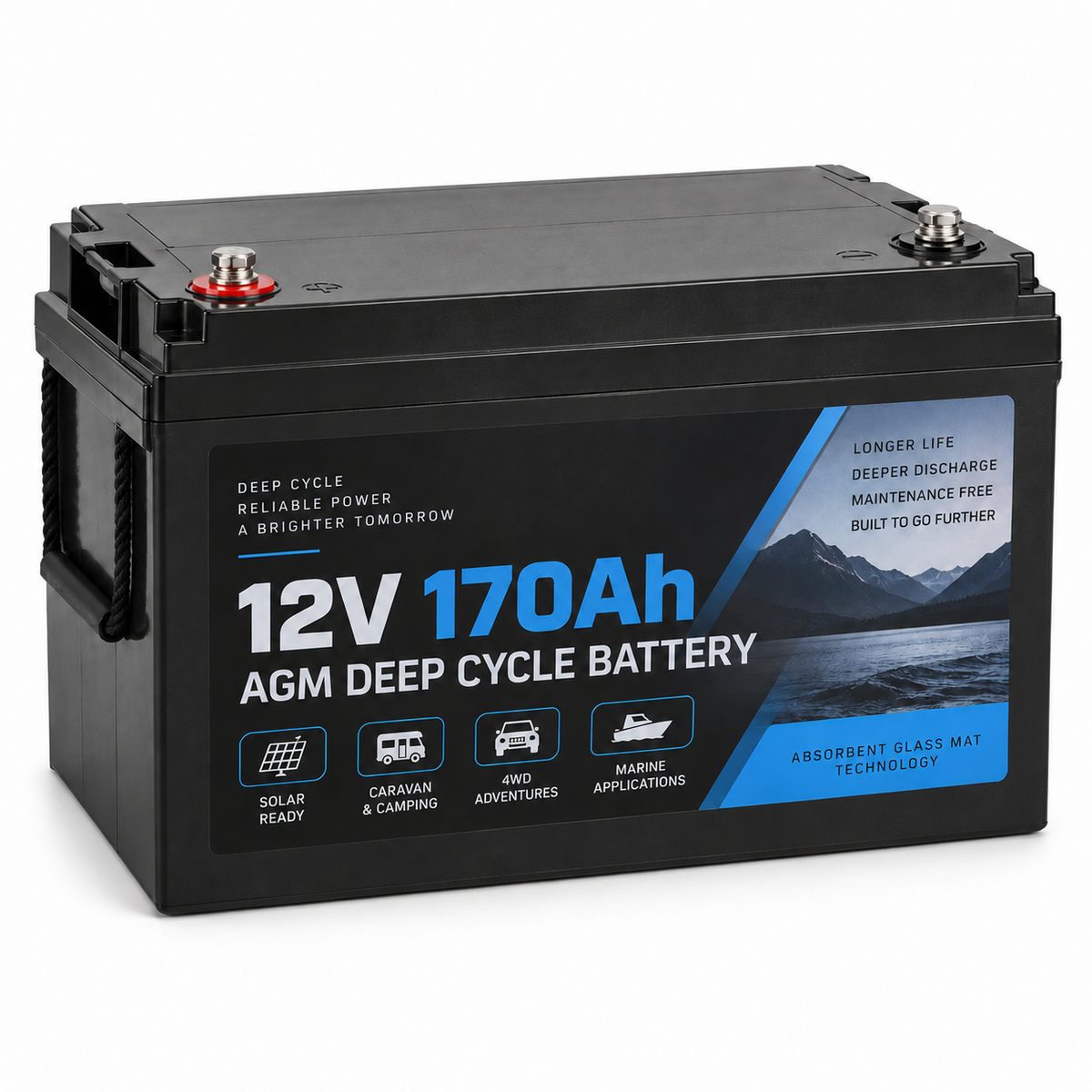

12V 170Ah AGM Deep Cycle Battery – Solar, Caravan & Off-Grid

Designed for higher-capacity 12V installations, this 12V 170Ah AGM deep cycle battery provides approximately 2.04kWh of nominal stored energy. It is suited to larger caravan, camper, marine, shed, backup and off-grid solar systems where longer runtime and greater reserve are required.

High-Capacity AGM Storage

A 170Ah battery can support a broader combination of 12V loads such as refrigeration, lighting, pumps, fans, electronics and charging equipment, plus appropriately sized inverter loads. The larger capacity can reduce how frequently the battery reaches a deep state of discharge when daily power demand is moderate.

Key Features

• 12V nominal voltage
• 170Ah rated capacity
• Approx. 2,040Wh / 2.04kWh nominal energy
• Sealed AGM lead-acid chemistry
• Deep-cycle design for energy-storage applications
• Suitable for solar, caravan, camper, marine and off-grid auxiliary systems
• 12-month warranty

Charging a 170Ah AGM Battery

Larger batteries require correctly sized charging equipment. Use an AGM-compatible solar regulator, mains charger or DC-DC charger with settings that comply with the battery specifications. Charging current, cable size, fuse protection and connection quality should be appropriate for the system.

Plan Around Real-World Usable Energy

The 2.04kWh figure is nominal capacity rather than guaranteed usable output. Runtime will vary according to appliance load, discharge rate, temperature, battery condition, cable losses and inverter efficiency. For longer service life, avoid routinely sizing the system around 100% depth of discharge.

StarPower can help design a compatible solar, charging and inverter setup around this 170Ah AGM battery for caravans, touring rigs, boats and off-grid installations.
