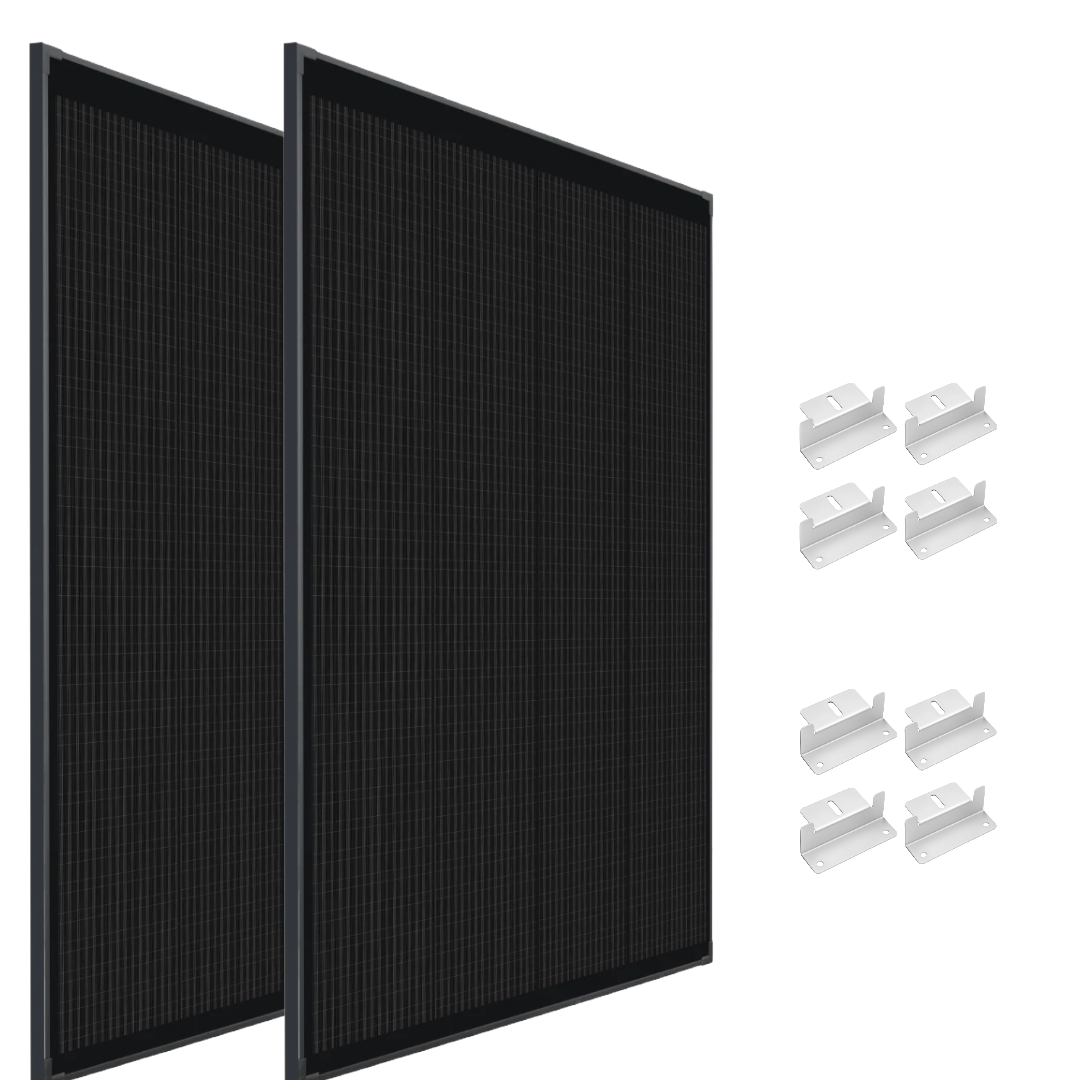

2 × 500W 12V Mono Shingled Panels + 8 × Aluminium Z-Bracket Mounts

Power your off-grid setup with a premium combination of high-efficiency solar generation and rock-solid mounting hardware.
This bundle includes two 500 W 12 V Mono Shingled Fixed Solar Panels and two packs of Aluminium Z-Bracket Mounts (4 pcs per pack) — giving you a total of 1,000 W (1 kW) of clean solar power and all the brackets needed for a professional, long-lasting installation.

Perfect for caravans, 4WDs, RVs, boats, sheds, cabins and off-grid systems across Australia.

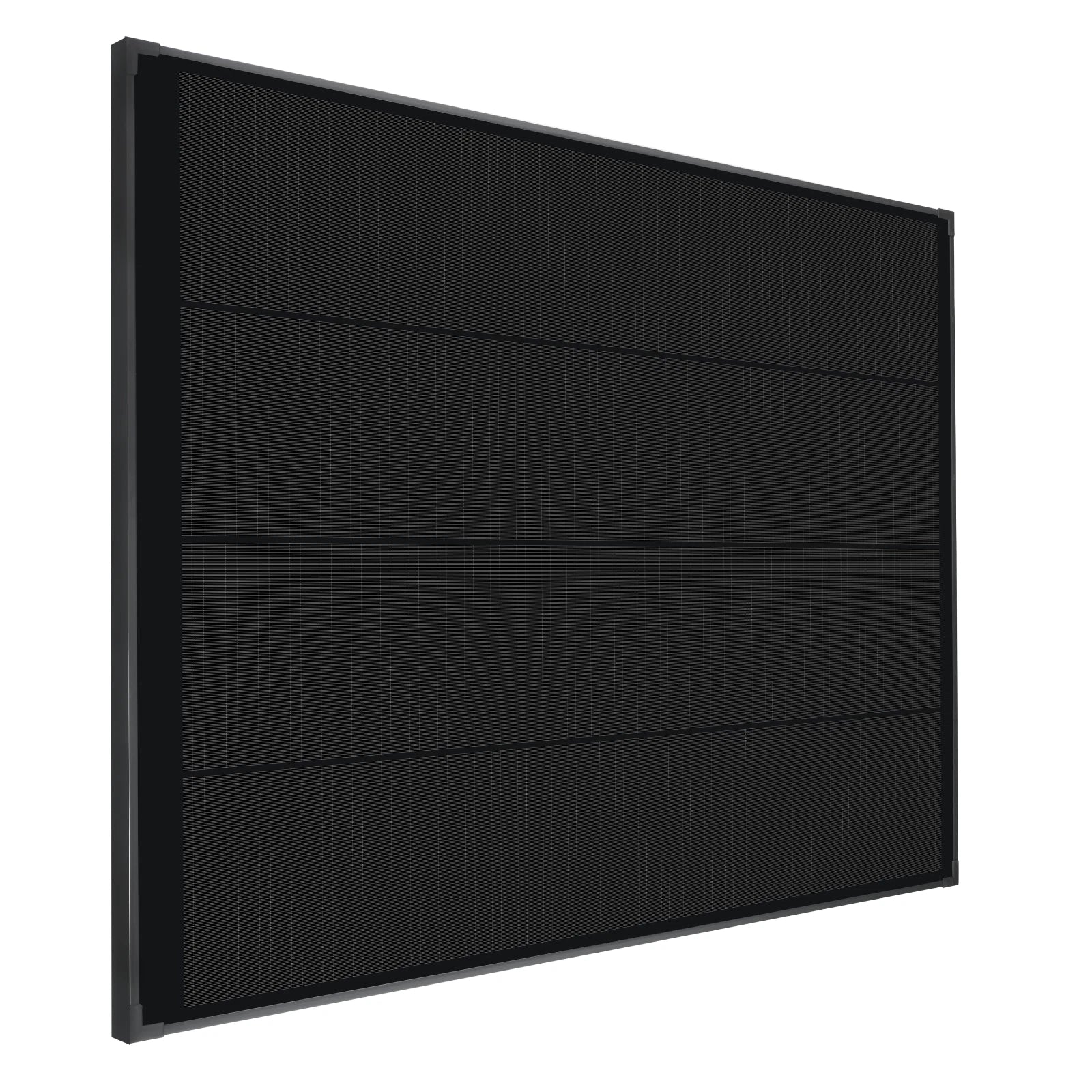

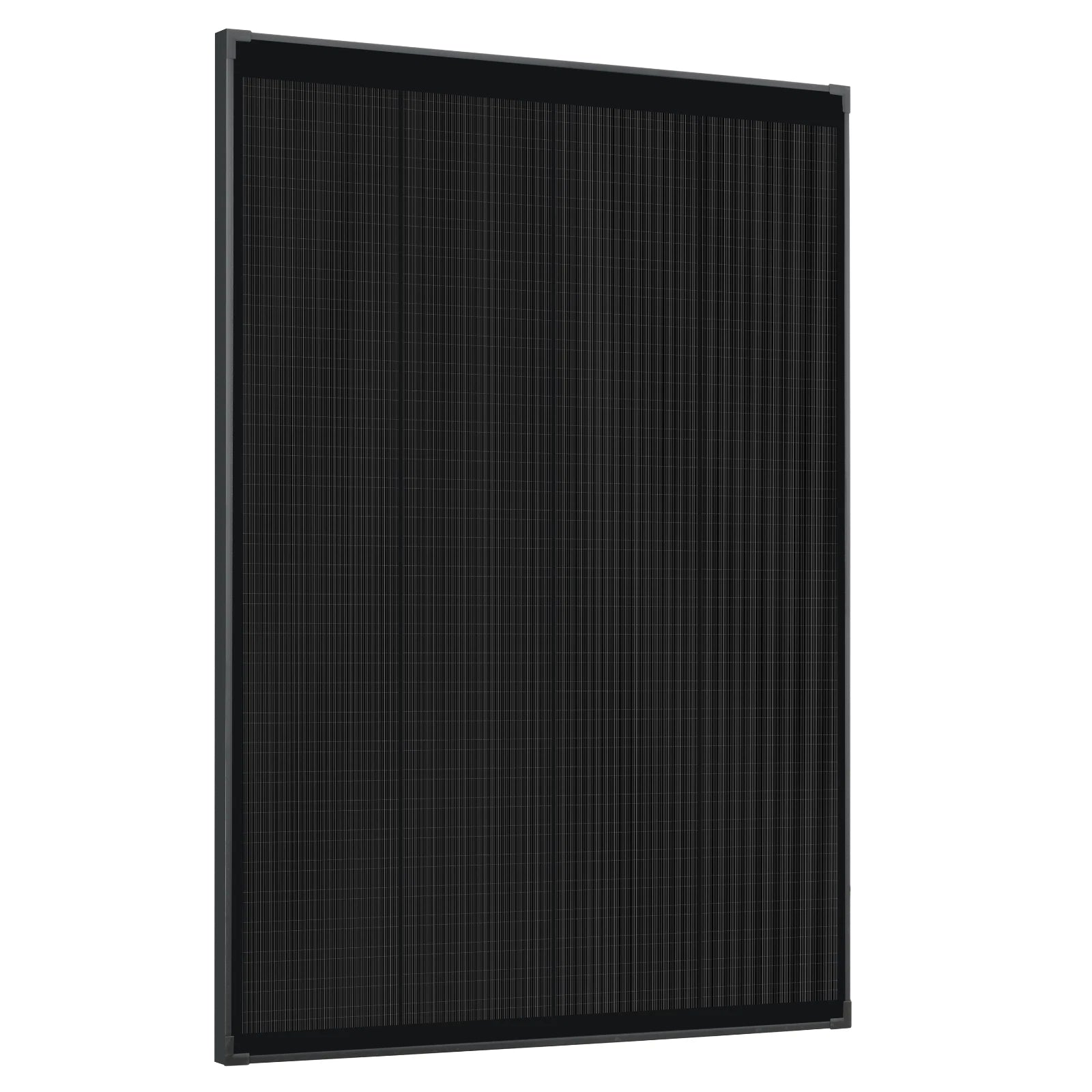

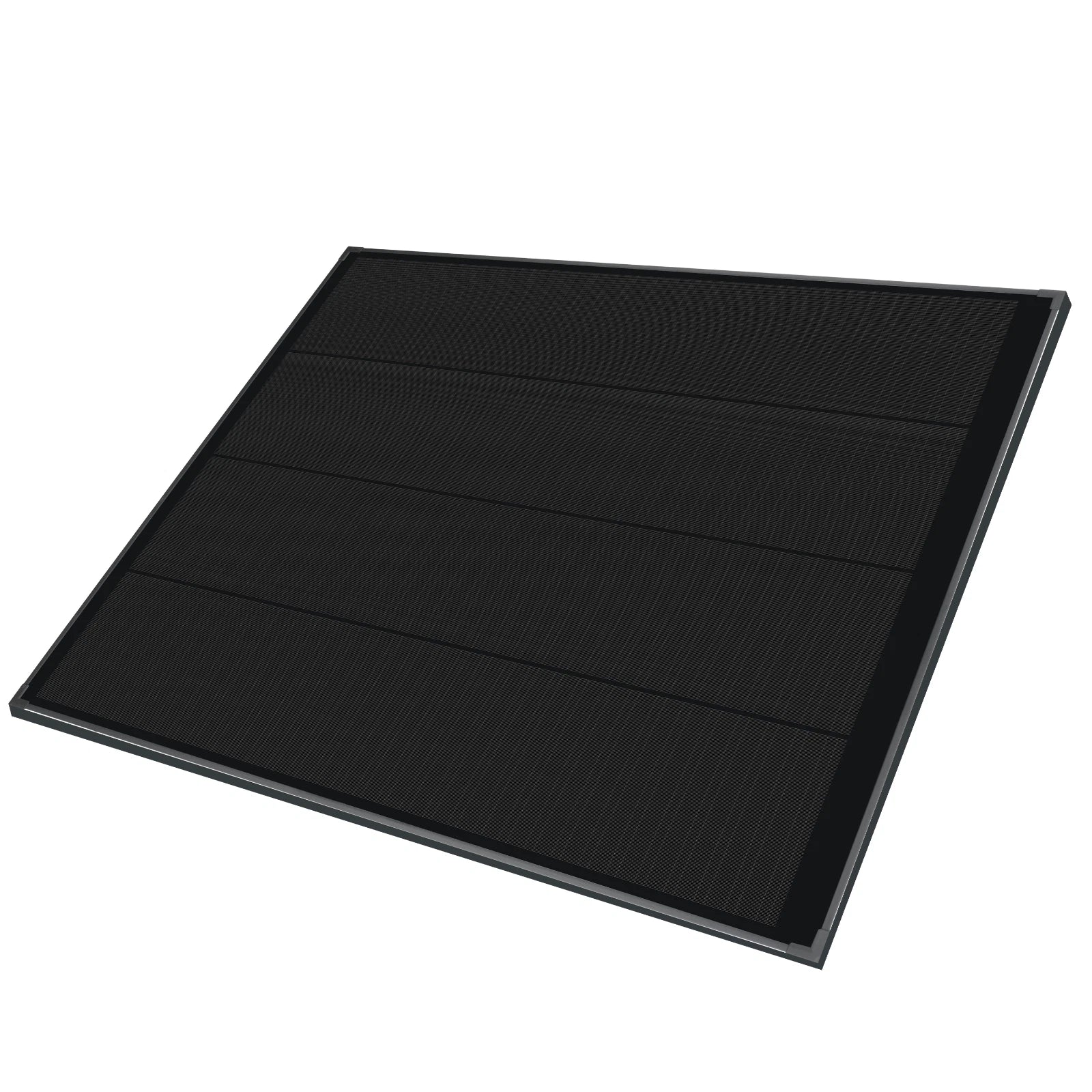

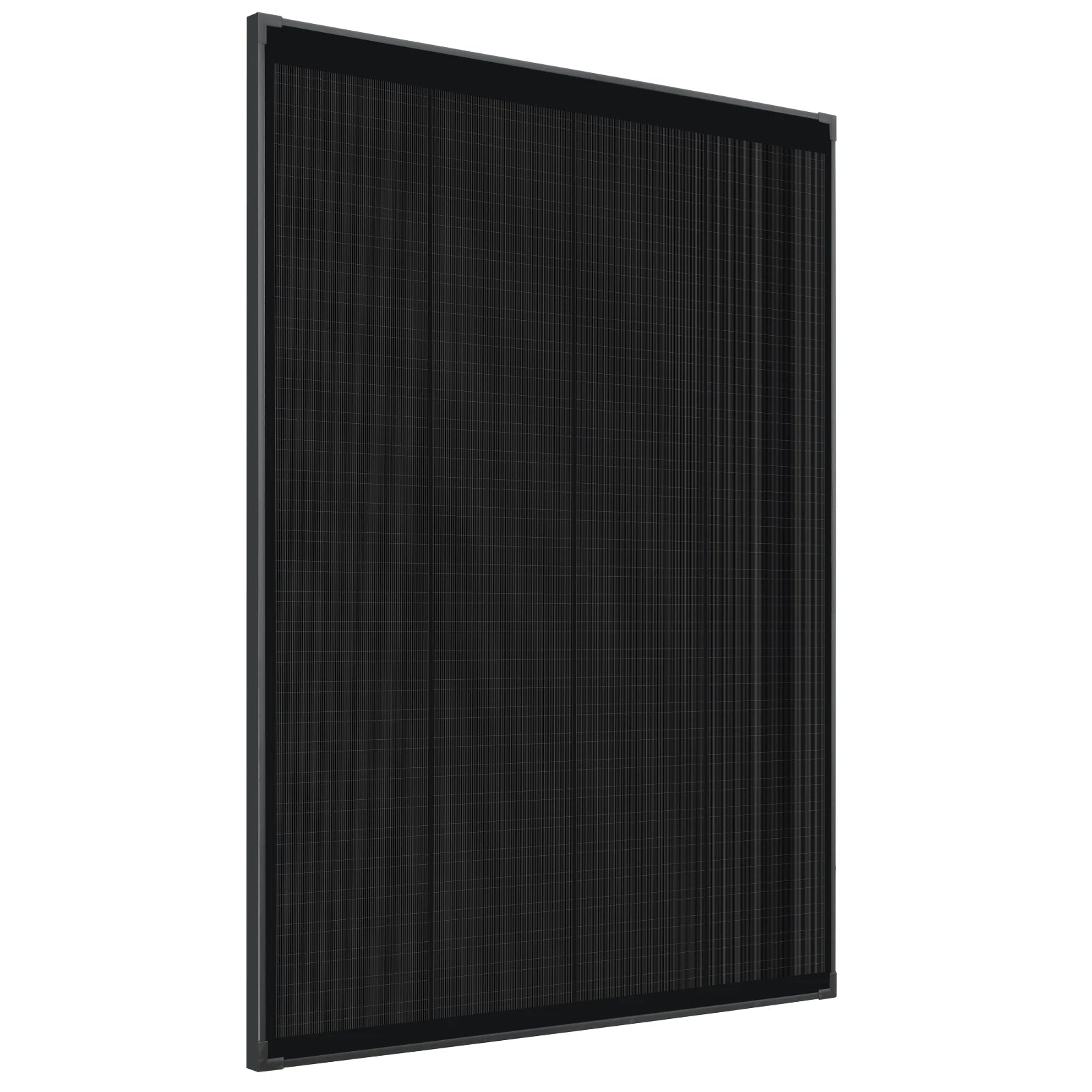

☀️ High-Efficiency 500 W Shingled Mono Panels (2 × Panels Included)

Engineered with advanced shingled-cell monocrystalline technology, these 500 W panels deliver superior output, efficiency, and durability compared to conventional panel designs.
Each panel uses overlapping A-grade solar cells to maximise surface area, minimise resistive loss, and maintain strong performance even in low-light or partial-shade conditions — ideal for real Australian environments.

Panel Highlights:

• Massive 1,000 W total output (2 × 500 W) for serious off-grid power

• High-efficiency shingled monocrystalline cells for maximum performance

• Excellent low-light and partial-shade response

• Rigid tempered glass + anodised aluminium frame construction

• Pre-installed MC4 connectors for plug-and-play wiring

• Designed and tested for heat, wind, hail, and coastal climates

Panel Specifications (each):

With two panels combined, you achieve a 1 kW solar array capable of powering large 12 V or 24 V battery systems — ideal for hybrid inverters, MPPT controllers and lithium battery banks.

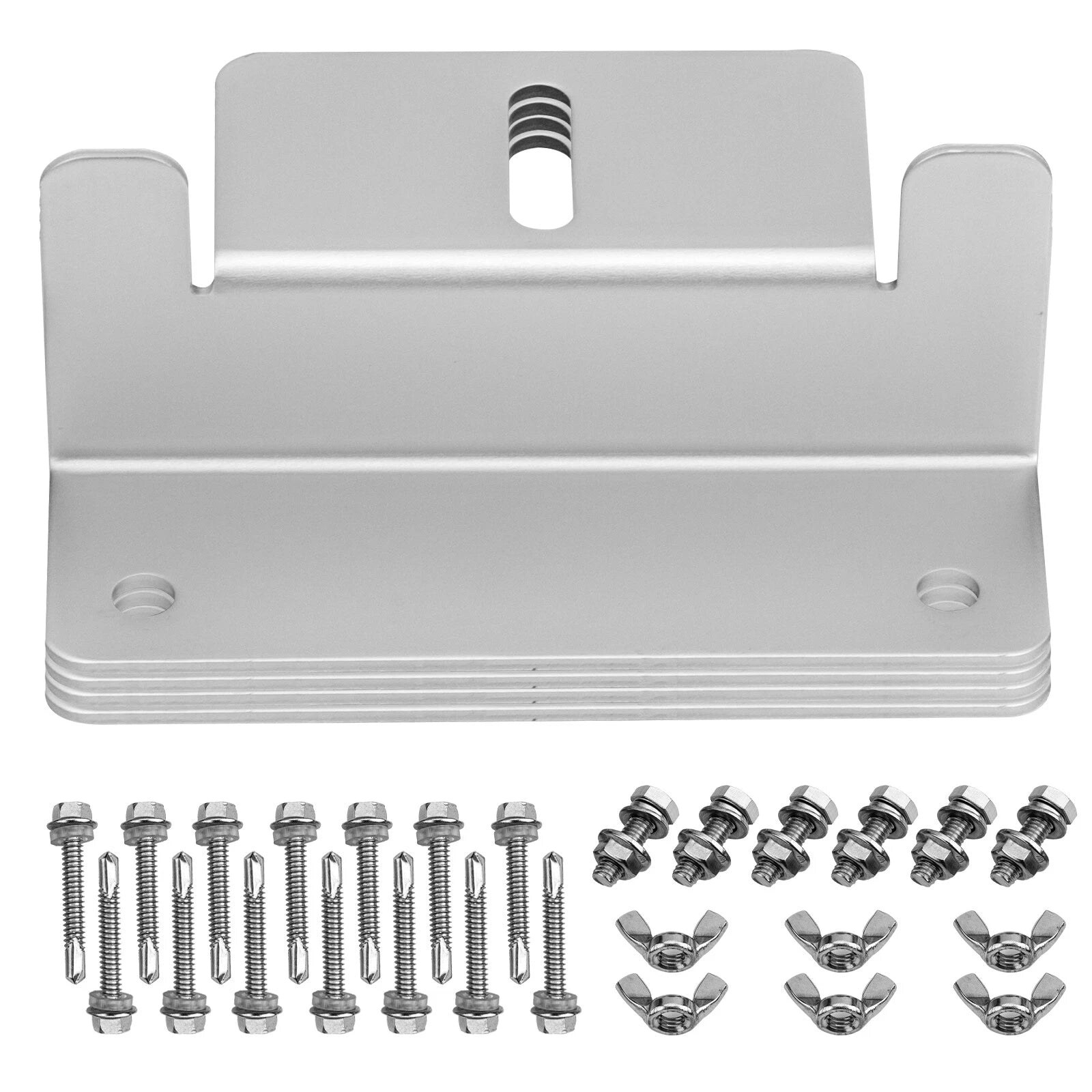

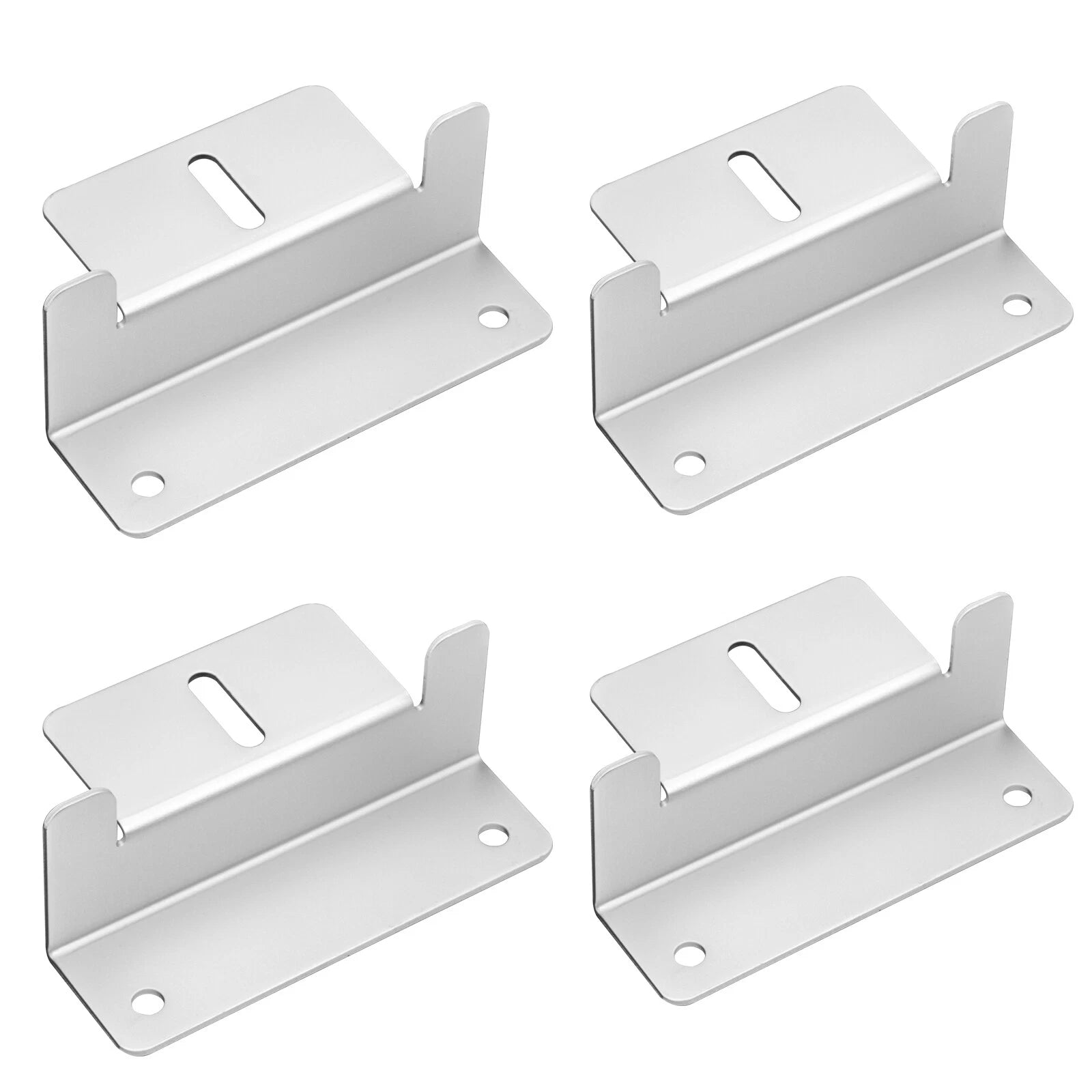

🔩 Strong & Reliable Aluminium Z-Bracket Mounts (2 × Packs Included)

Included are 2 packs of 4 Aluminium Z-Brackets (8 brackets total), providing everything you need to securely fix your solar panels to flat or curved surfaces such as caravan roofs, trailers, boat decks or sheds.

Bracket Highlights:

• Made from high-grade aluminium alloy – lightweight, strong and rust-resistant

• Includes stainless steel nuts, bolts, and washers

• Simple, universal design – suits most fixed-mount solar panels

• Ideal for rooftop, marine, RV and shed installations

• Approx. size: 10 × 6.5 × 4 cm

• Colour: Silver (anodised finish)

• Weight: ~443 g per 4-pack

Built for tough Australian conditions, these brackets ensure your panels stay secure even in high winds and long-term exposure to sun and salt air.

⚡ Bundle Summary

• Total Output: 1,000 W (1 kW) of solar power

• Includes: 2 × 500 W Mono Shingled Solar Panels + 8 × Aluminium Z-Brackets

• System Type: Fixed installation – ideal for permanent or semi-permanent setups

• Compatibility: 12 V / 24 V / 48 V MPPT charge controllers & hybrid inverters

• Best For: Caravans, 4WD canopy systems, tiny homes, sheds, cabins & marine solar setups

• Durability: Built for heat, wind, dust, and salt exposure across Australia

🔧 Installation & Tips

• Use a quality MPPT charge controller (25 A+ for 12 V systems) for maximum efficiency

• Panels can be wired in series (≈ 50 V) or parallel – check your controller’s voltage limit

• Ensure sufficient airflow beneath panels to improve cooling and efficiency

• Mount using supplied Z-brackets to structurally sound surfaces

• Use UV-resistant solar cable and marine-grade connectors for long-term reliability
