StarPower Solar

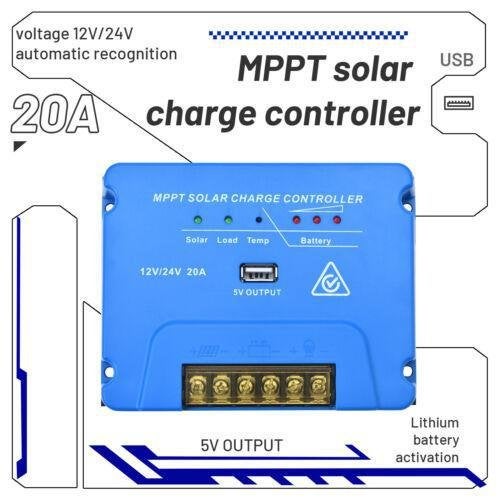

20A MPPT 12V/24V Solar Panel Battery Regulator Charge Controller
20A MPPT 12V/24V Solar Panel Battery Regulator Charge Controller
Regular price
$59.00 AUD
Regular price
$95.00 AUD
Sale price
$59.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Our 20A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank.
Features
12V /24V Automatic System Recognition.
Embedding Imported Advanced Microchips - Higher Monitoring Accuracy & Better Battery Protection.
Advanced MPPT Technology With up to 99% high tracking efficiency, and Lithium-reawakening feature.
Multiple Electronic Protection Features, including over-charging, over-discharging, reverse polarity, over-load, and over-temperature.
Specifications
Rated charge current: 20A
Rated voltage: 12V/24V auto work
Max PV Input Power: Input voltage:≤50V
12V battery: 260W
24V battery: 520W
MPPT efficiency: Max:99%
Over load, short circuit protection: ≥1.5 rated current
No load current: <10mA
Over voltage protection: 16V; x2/24V
The voltage of stop charging: 14.7V; x2/24V
Discharge recovery voltage: 12.0V; x2/24V
Over discharge voltage : 10.8V; x2/24V
USB output: 5V 1A
Working temperature: -35°C~+55°C
Weight: 300g
