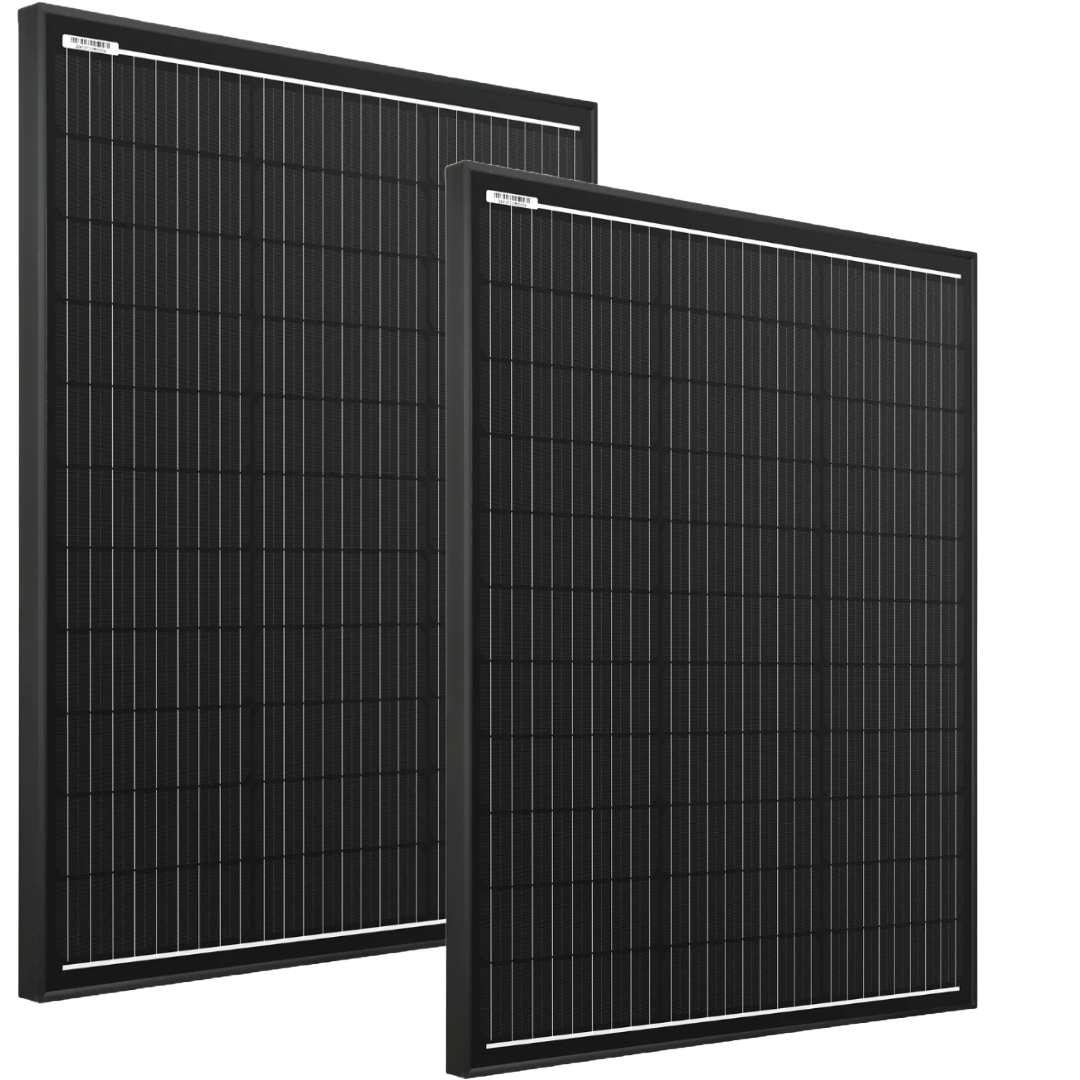

2x 300W 12V Fixed Mono Shingled Solar Panel Caravan Camping RV

Introducing our latest innovation: the 300W 12V shingled solar panel, an excellent choice for those seeking reliability and efficiency in renewable energy solutions. This cutting-edge panel incorporates advanced technologies, including a PERC (Passivated Emitter and Rear Cell) design, which significantly enhances energy conversion. Additionally, the use of half-cut cells improves performance and reduces energy loss.

Designed with bypass diodes, this panel ensures that shadows on part of the cells do not diminish the overall energy output, allowing for consistent performance even in partially shaded environments. The inclusion of a 9-busbar system further optimizes energy capture, facilitating superior current flow and minimizing resistance.

The panel is housed in a sturdy, corrosion-resistant aluminum frame that is built for durability. Its tough construction is engineered to withstand years of outdoor exposure, making it highly resilient against various weather conditions. This panel can endure strong winds of up to 2400Pa and heavy snow loads of up to 5400Pa, ensuring it remains operational in a wide range of challenging environments.

Ideal for both residential and commercial applications, our shingled solar panel represents a significant advancement in solar technology, delivering exceptional performance and reliability to meet your energy needs.

Specifications

Wattage: 300W

Power Tolerance: 3%

Max Power Voltage: 17.4V

Max Current: 17.24A

Open Circuit Voltage: 21.4V

Short-Circuit Current: 18.27A

Max System Voltage: 1000V

Cell Tech: Monocrystalline

Module Class: A

Operating Temp Min: -40 degrees Celsius

Operating Temp Max: 85 degrees Celsius

TUV: Certification Yes

Industry Warranty: 25 Years

Dimensions: 93*54*5 cm

Weight Approx. 9.5KG
