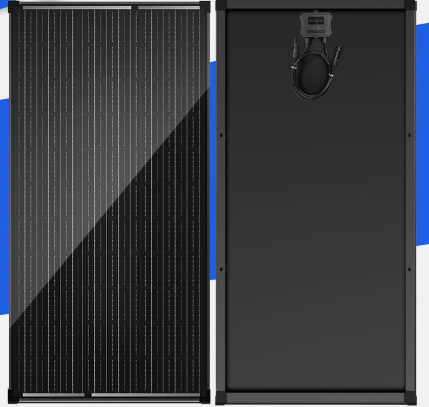

300W 12V Fixed Shingled Solar Panel Caravan Camping RV

Introducing our latest innovation: the 300W 12V shingled solar panel, an outstanding selection for those seeking reliability and efficiency in renewable energy solutions. This state-of-the-art panel features advanced technologies, including PERC (Passivated Emitter and Rear Cell) design, which significantly enhances energy conversion, as well as half-cut cells that improve performance and reduce energy loss. Designed with bypass diodes, the panel ensures that shadows on a portion of the cells do not diminish the overall energy output, allowing for consistent performance even in partially shaded environments.

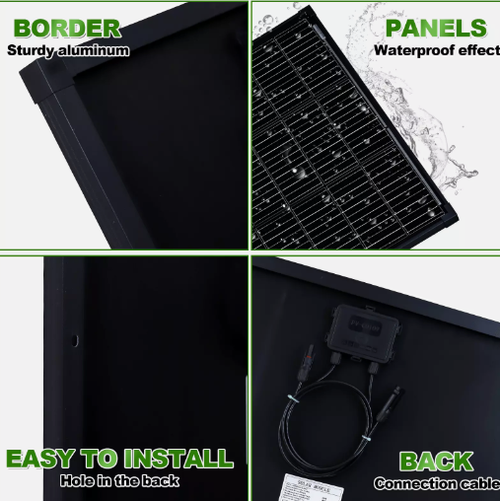

The inclusion of a 9-busbar system further optimizes energy capture, facilitating superior current flow and reducing resistance. The panel is encased in a robust, corrosion-resistant aluminium frame that is engineered for longevity. Its durable construction is designed to withstand years of outdoor exposure, making it highly resilient against the elements. This panel can endure strong winds of up to 2400Pa and heavy snow loads of up to 5400Pa, ensuring that it remains operational under a wide range of tough weather conditions.

Ideal for both residential and commercial applications, our shingled solar panel represents a significant step forward in solar technology, delivering exceptional performance and reliability for your energy needs.

Specifications

Wattage: 300W

Power Tolerance: 3%

Max Power Voltage: 17.4V

Max Current: 17.24A

Open Circuit Voltage: 21.4V

Short-Circuit Current: 18.27A

Max System Voltage: 1000V

Cell Tech: Monocrystalline

Module Class: A

Operating Temp Min: -40 degrees Celsius

Operating Temp Max: 85 degrees Celsius

TUV: Certification Yes Industry

Warranty: 25 Years

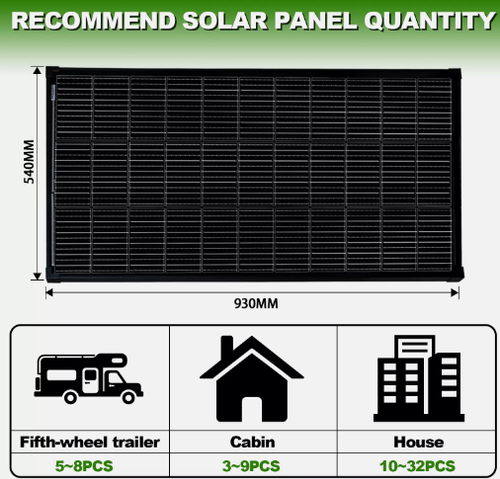

Dimensions: 93*54*5 cm

Weight Approx. 9.5KG
