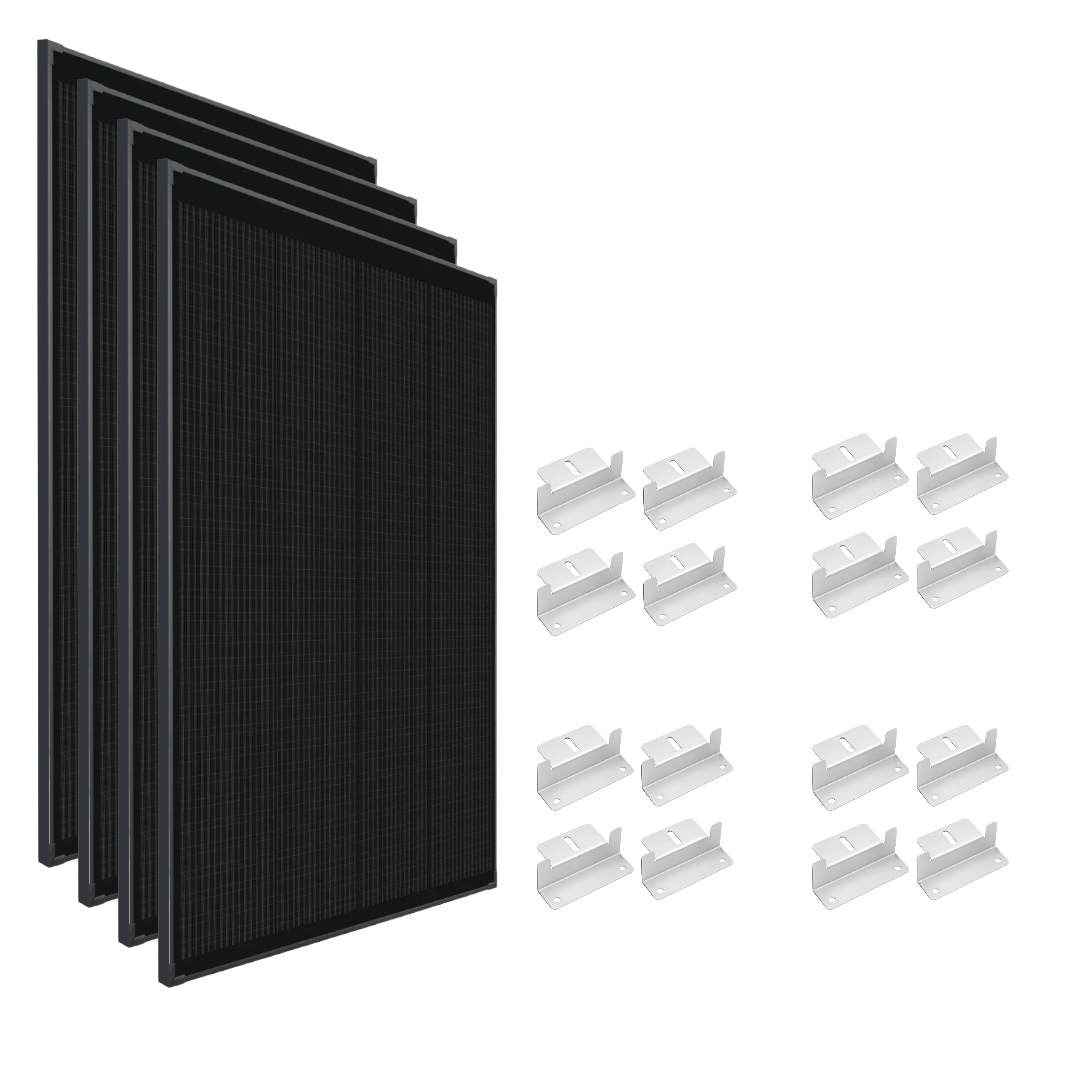

4× 500W 12V Mono Shingled Fixed Solar Panels + 4× Aluminium Z-Bracket Mount Kits

Upgrade your energy setup with one of the best off-grid solar panel bundles in Australia — the 2 kW Portable & Fixed Solar System.
This premium kit includes four high-efficiency 500W 12V mono-shingled solar panels and four aluminium Z-bracket mounting kits, providing everything you need to power your caravan, 4WD, RV, boat, or off-grid cabin with reliable renewable energy.

Designed for Australian conditions, this bundle combines exceptional performance, durable construction, and easy installation, making it perfect for anyone wanting to buy solar panels in Australia for off-grid living or travel.

☀️ Complete 2 kW Solar Power Kit — Built for Australia

Each 500W 12V solar panel uses advanced shingled monocrystalline cells to maximise efficiency and output, even during hot summer days or cloudy conditions.
With a total capacity of 2,000 W (2 kW), this system delivers serious charging power for lithium (LiFePO₄) or AGM batteries, ideal for camping solar setups, caravan solar systems, and off-grid homes.

The included Z-bracket solar mounts make installation fast and secure — perfect for rooftop solar panels on caravans, flat or pitched roofs, or ground mounts on remote properties.
This bundle is your all-in-one solar panel mounting kit for serious off-grid use.

💪 Why Choose This 500W Solar Panel Bundle

• Massive 2 kW output – power fridges, lighting, pumps, and inverters off-grid.

• A-grade mono-shingled solar cells for the highest conversion efficiency.

• Strong anodised aluminium frames built for wind, rain, and coastal climates.

• MC4 connectors for plug-and-play integration with MPPT solar controllers or DC-DC chargers.

• Lightweight and compact — ideal for caravans, tiny homes, sheds, or marine use.

• Includes 4 complete Z-bracket kits – durable, corrosion-resistant mounts for easy solar panel installation.

• Backed by local Australian warranty and support from Star Power Advance Solar Technology.

This complete solar power system suits anyone needing a reliable off-grid energy solution that’s efficient, scalable, and ready for harsh Australian environments.

⚙️ Detailed Specifications

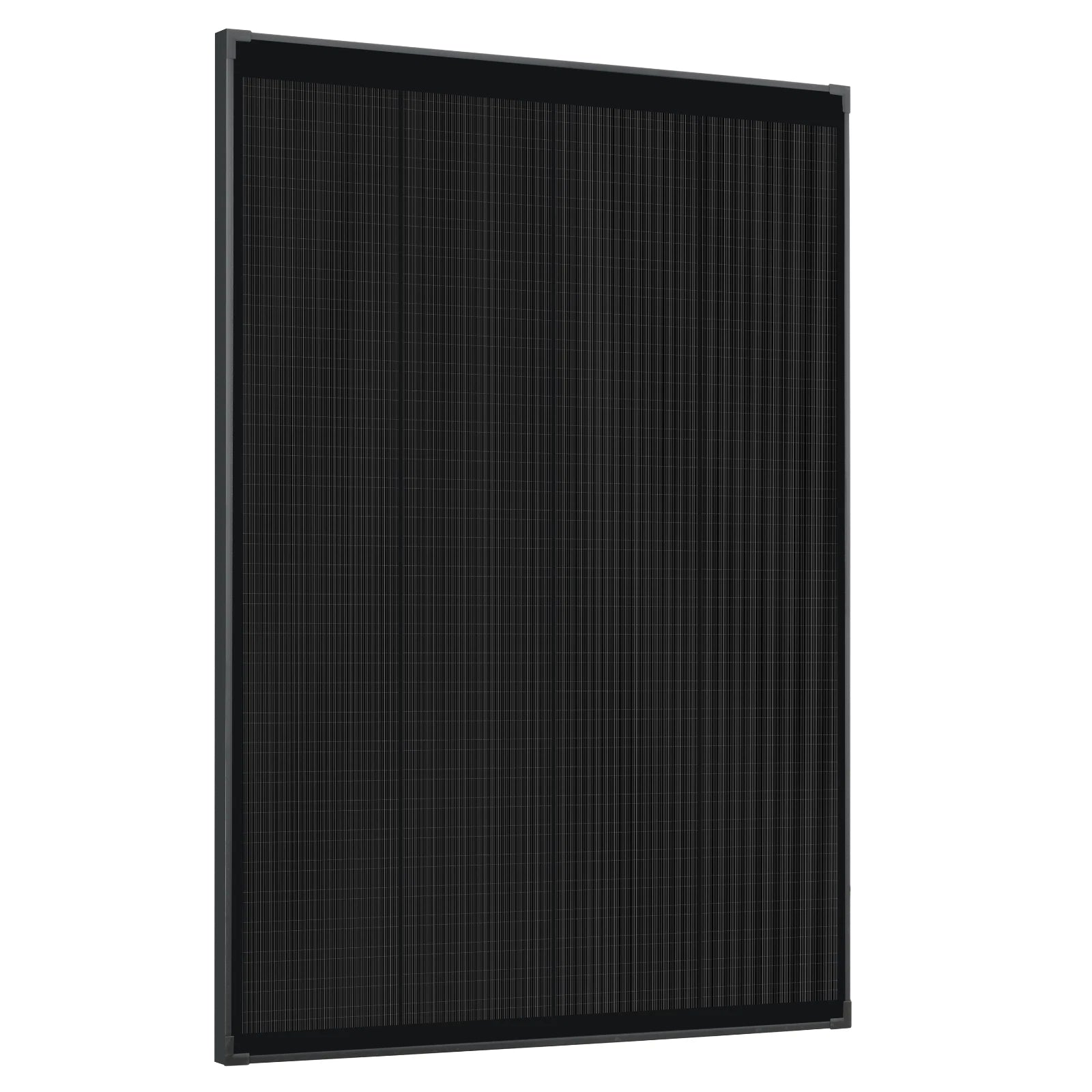

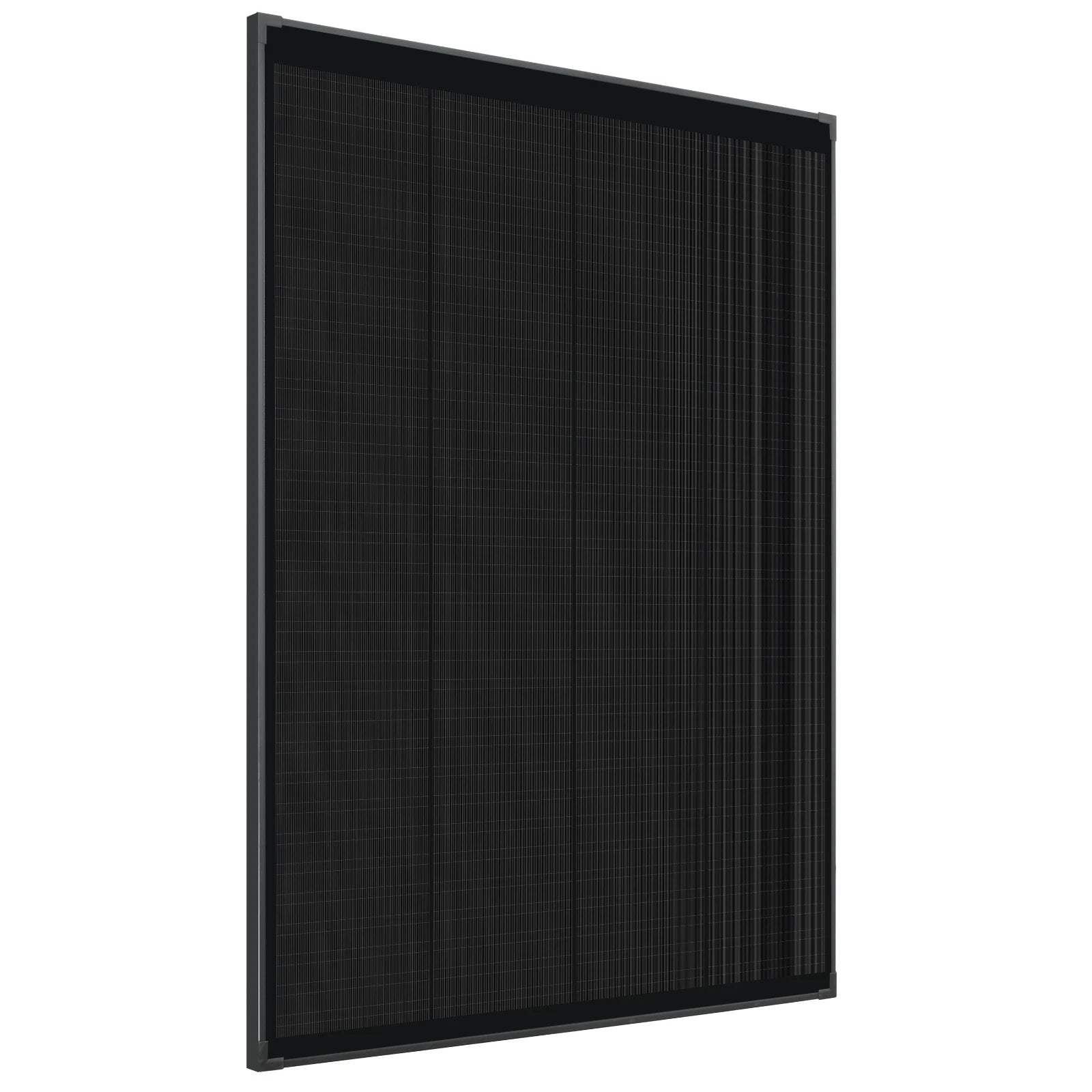

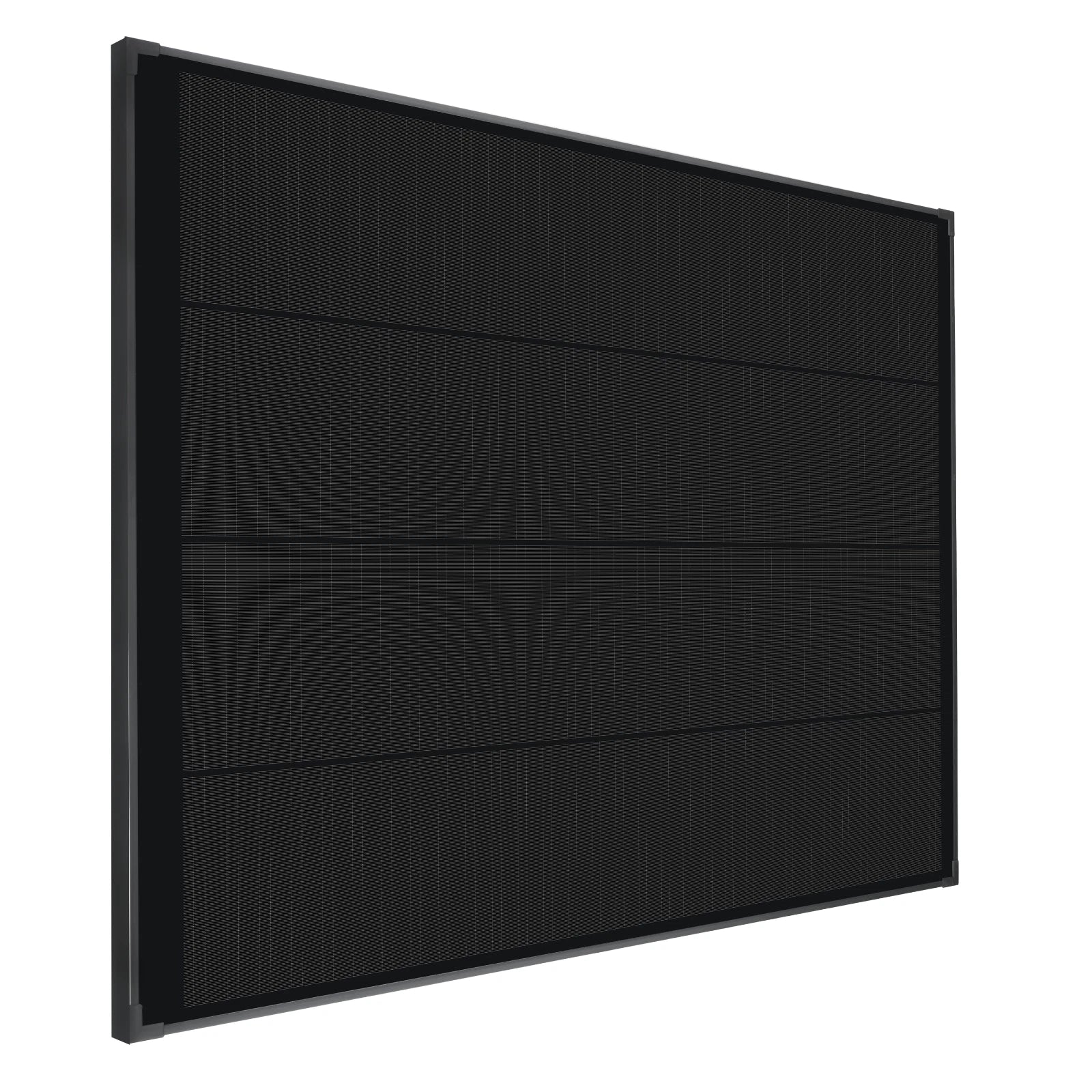

500 W 12 V Mono Shingled Fixed Solar Panel (Per Panel)

• Maximum Power (Pmax): 500 W

• Maximum Power Voltage (Vmp): 25.2 V

• Maximum Power Current (Imp): 19.85 A

• Open Circuit Voltage (Voc): 29.74 V

• Short Circuit Current (Isc): 21.44 A

• Cell Type: A-Grade Monocrystalline Shingled

• Frame: Anodised Aluminium Alloy + Tempered Glass

• Dimensions: 1340 × 670 × 30 mm

• Weight: 14.5 kg

• Warranty: 25 Years Performance Warranty

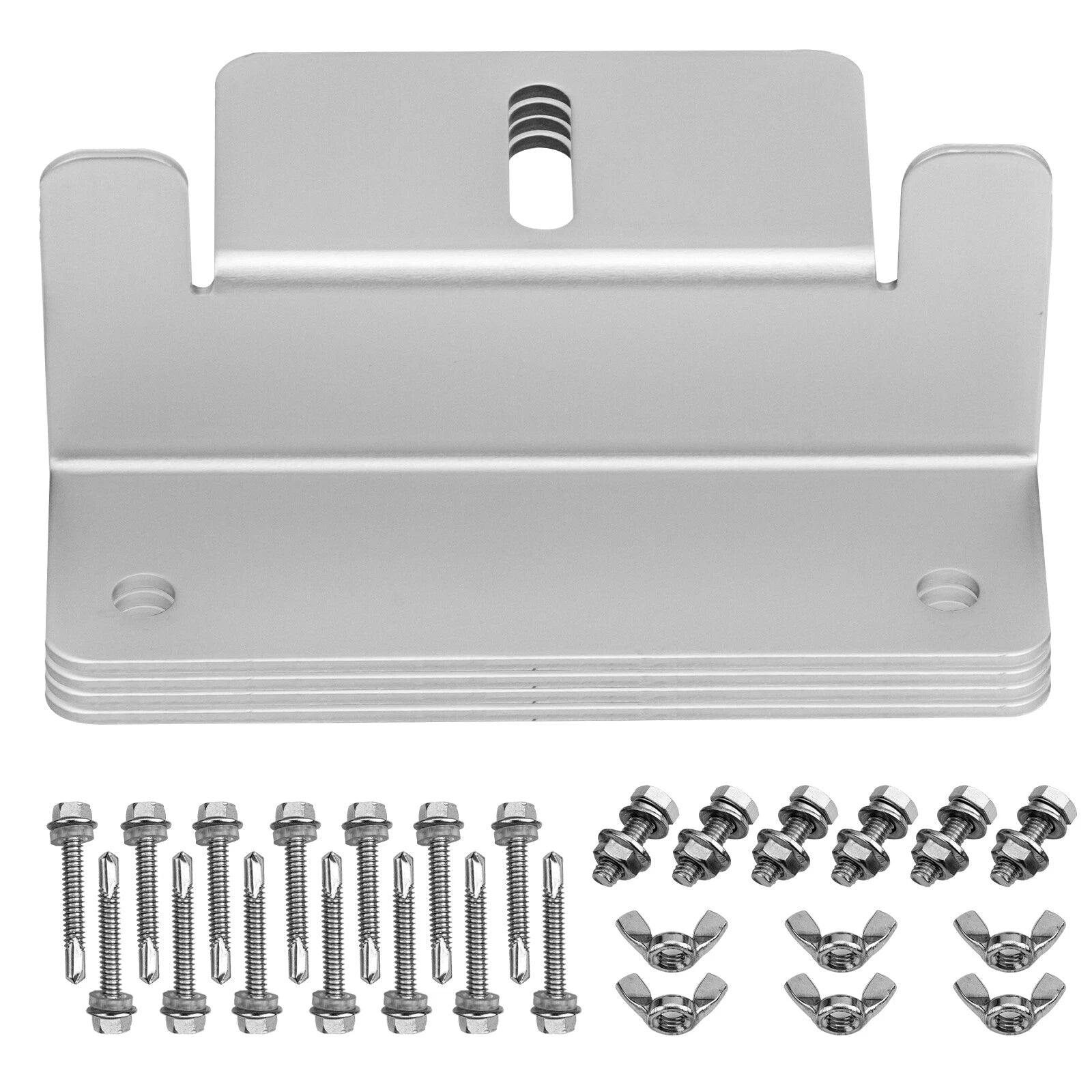

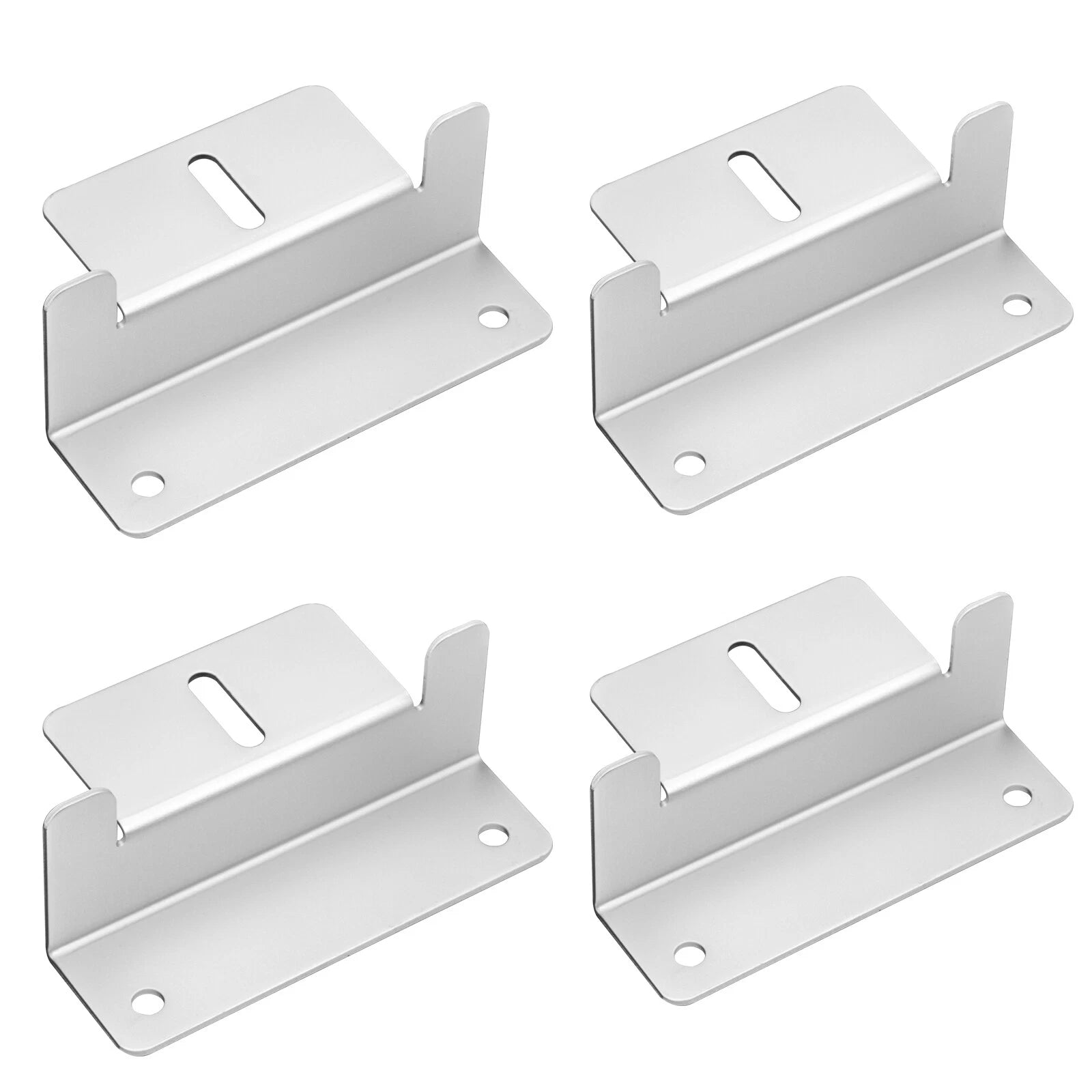

Aluminium Z-Bracket Mounting Kit (Per Set)

• Material: High-strength corrosion-resistant aluminium alloy

• Contents: 4 brackets + stainless steel bolts, nuts & washers

• Bracket Size: 10 × 6.5 × 4 cm

• Weight: ≈ 443 g per set (4 brackets)

• Colour: Silver finish

• Warranty: 1 Year

Bundle Total (4 Panels + 4 Mount Sets)

• Total Output: 2,000 W (2 kW)

• Combined Weight: ≈ 58 kg

• Mount Sets Included: 4 (16 brackets total)

• Ideal For: caravans, 4WDs, off-grid cabins, boats, tiny homes and mobile work sites.

⚡ Installation & Performance Optimisation

• For 12 V systems, wire panels in parallel to increase charging current.

• For 24 V or 48 V systems, wire in series or series-parallel for higher voltage and MPPT compatibility.

• Use 8 AWG solar cable or larger for long runs to minimise voltage drop.

• Angle panels north in Australia for best year-round performance.

• Combine with a quality MPPT solar charge controller to maximise battery efficiency and lifespan.

Need guidance? Visit our Help Centre for wiring diagrams, installation guides, and troubleshooting support.
