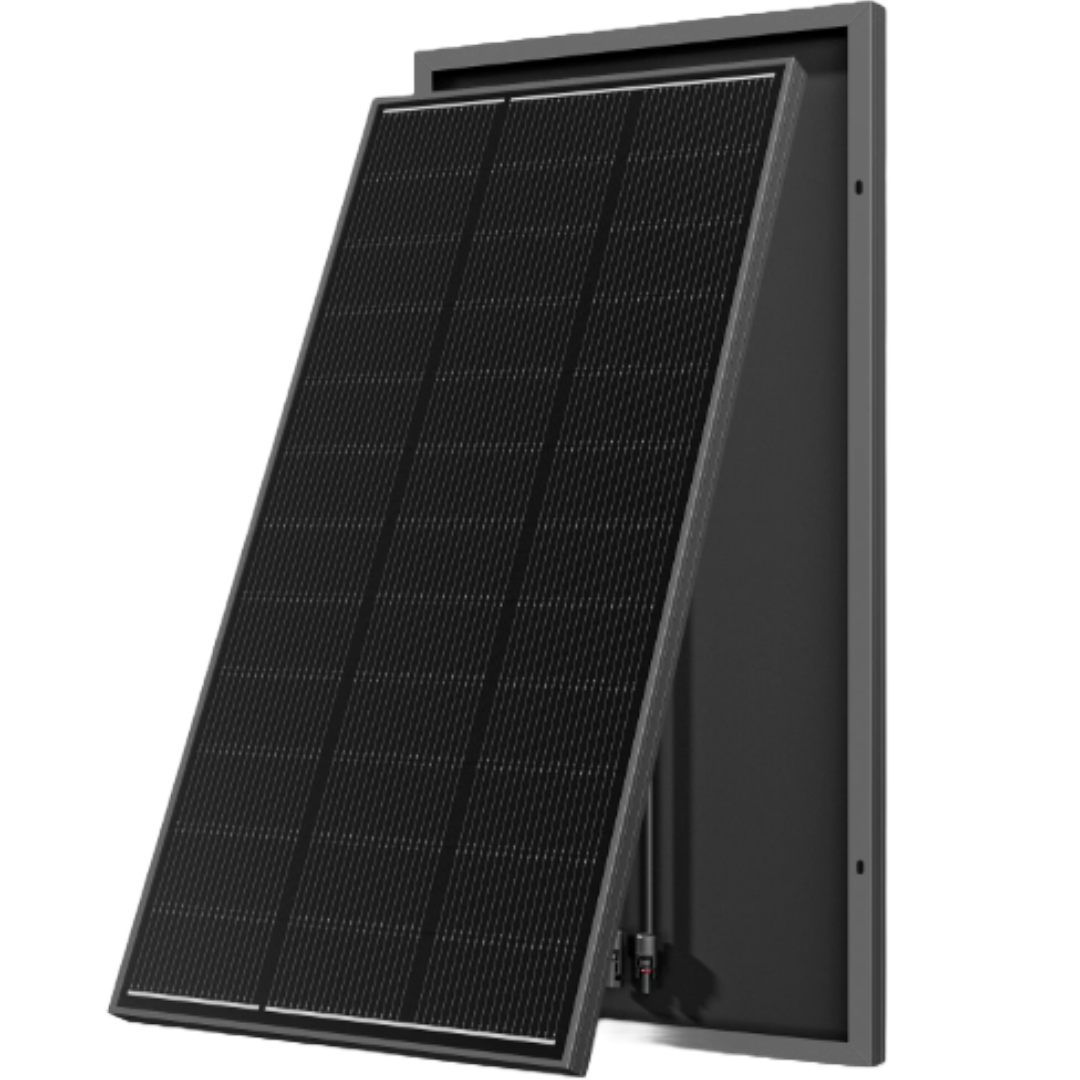

500W 12V Mono Shingled Fixed Solar Panel Camping RV

High-output 500W fixed panel for caravans, RVs, sheds and off-grid systems. Its compact 1340 × 670mm footprint delivers 500W rated output from a shingled monocrystalline panel.

Multi-panel value: 2 panels for $524.99 ($446.25 after SPAST15) or 4 panels for $939.99 ($799.00 after SPAST15). SPAST15 gives 15% off eligible orders over $300. Available payment options are shown at checkout.

Check compatibility before ordering

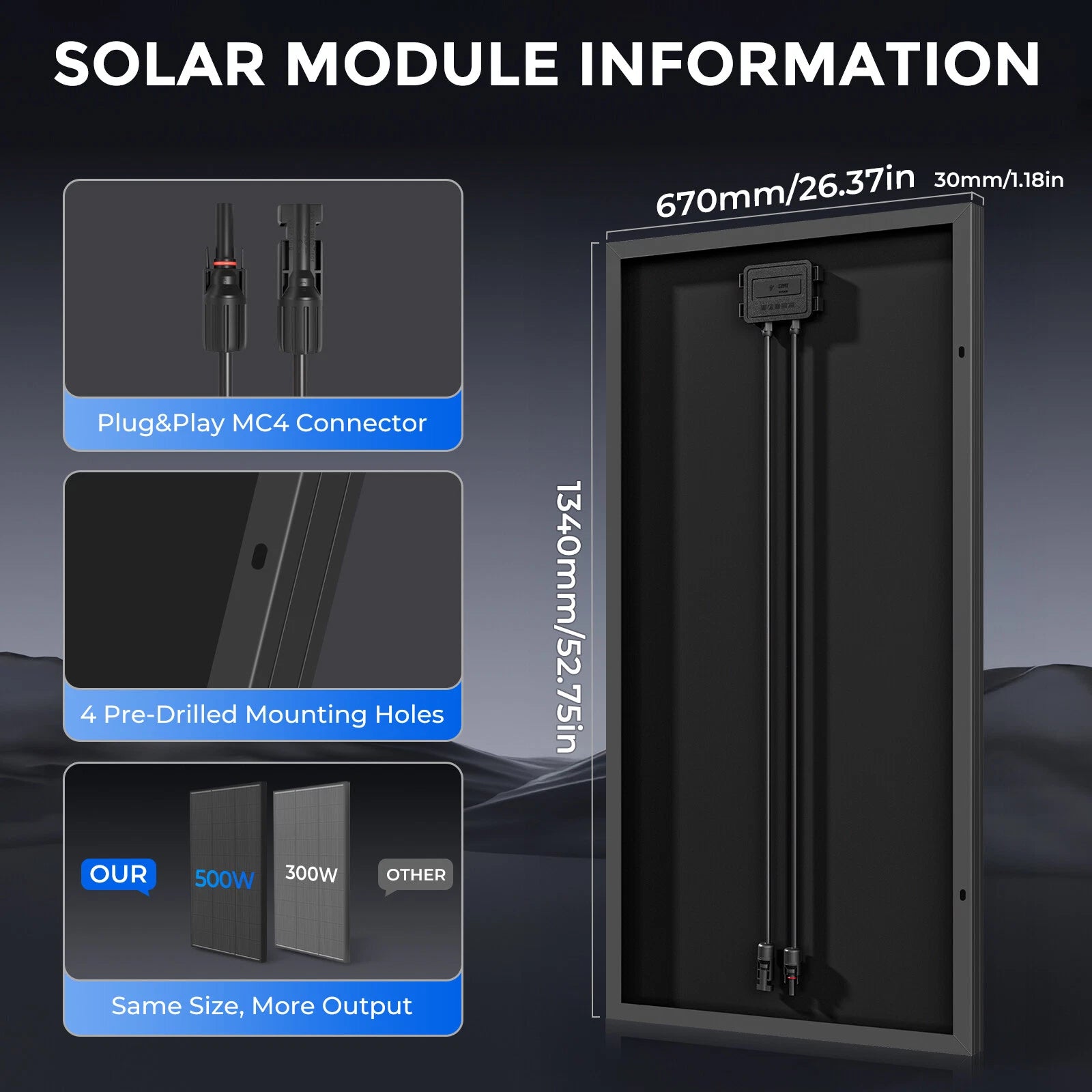

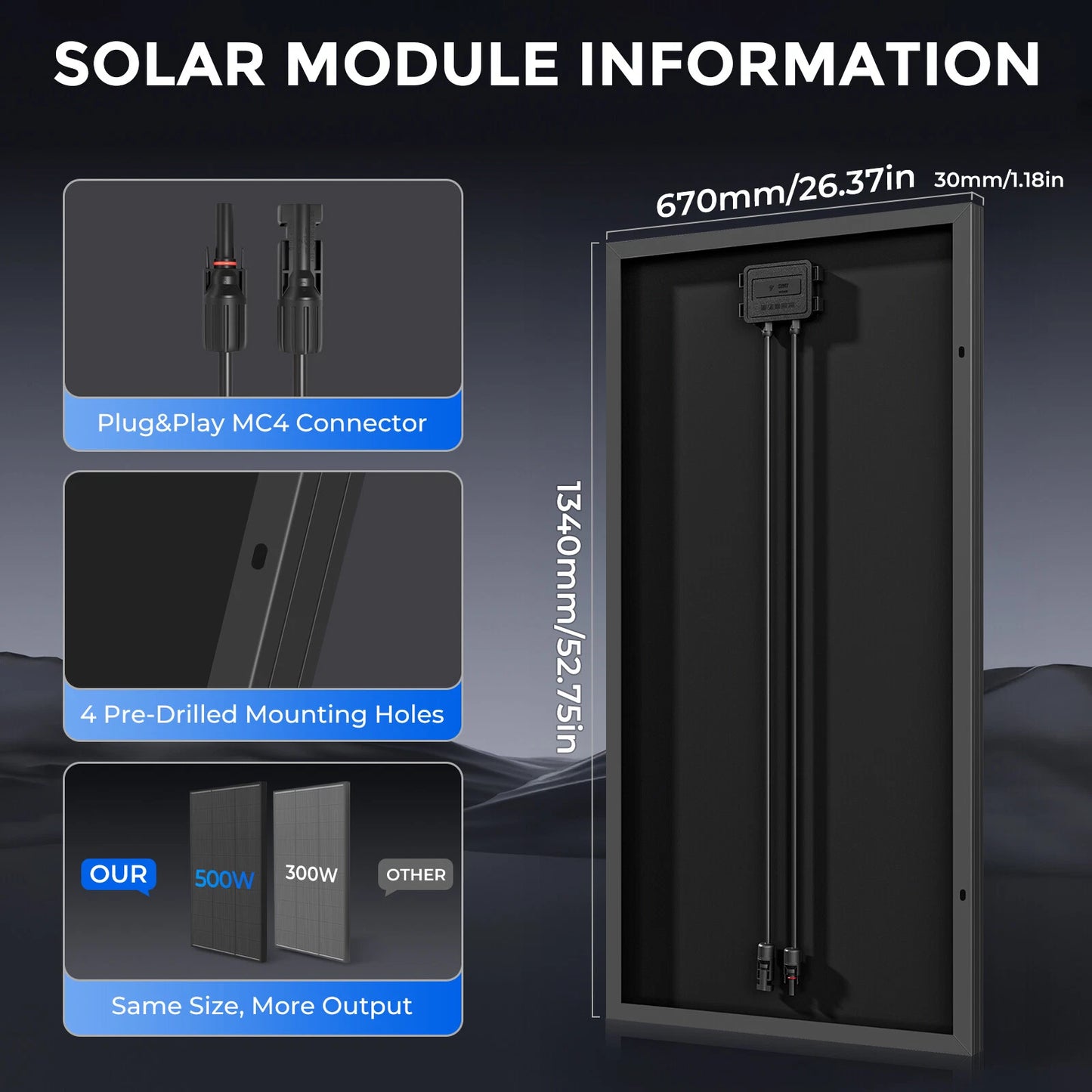

• Panel size: 1340 × 670 × 30mm; weight: 14.5kg
• Vmp: 25.2V; Imp: 19.85A; Voc: 29.74V; Isc: 21.44A
• Use an MPPT controller or inverter that accepts the complete array voltage and current.
• For multiple panels, series wiring increases voltage and parallel wiring increases current. Check controller limits, cable size, fusing and isolation.

Complete your system

Match the array with a correctly sized MPPT controller, lithium battery or AGM battery. For a ready-to-mount option, see the 2-panel and Z-bracket bundle, or add 8 aluminium Z brackets.

What’s included

• 1 × 500W 12V fixed shingled mono solar panel
• Pre-terminated solar leads
• Integrated frame mounting points

Controller, battery, brackets, cables, fuses and isolators are not included unless purchased separately.

Specifications

• Rated power: 500W (standard test conditions)
• Cell type: shingled monocrystalline
• Warranty: 25 years as listed

Actual output varies with sunlight, temperature, angle, shade, cleanliness, cabling and controller efficiency. Delivery options are shown at checkout. Need help sizing the system? Call Australian support on (02) 5761 0297.
