6 × 500W 12V Mono Shingled Fixed Solar Panel Bundle

High-output off-grid solar for caravans, RVs, 4WD touring, tiny homes, marine and remote cabins across Australia.
This premium bundle includes six (6) of our 500 W 12 V mono shingled fixed solar panels, delivering a combined 3,000 W peak. Mono-shingled cell tech maximises surface utilisation and boosts low-light yield, while the rugged fixed-mount design shrugs off Australia’s heat, wind and coastal conditions.

Key Features

• 3,000W total PV (6 × 500W) for serious off-grid performance

• Mono shingled cells: higher active area, lower resistive loss, excellent low-light behaviour

• Fixed-mount build: tempered glass + anodised aluminium frame for Australian conditions

• Compact panel footprint for easier roof planning on caravans, vans & tiny homes

• Scalable & flexible wiring (series / parallel / series-parallel) to suit 12V/24V/48V systems

• Long life with 25-year performance warranty (per panel)

• Free delivery online Australia-wide and fast dispatch (1–2 business days)

What’s in the Box

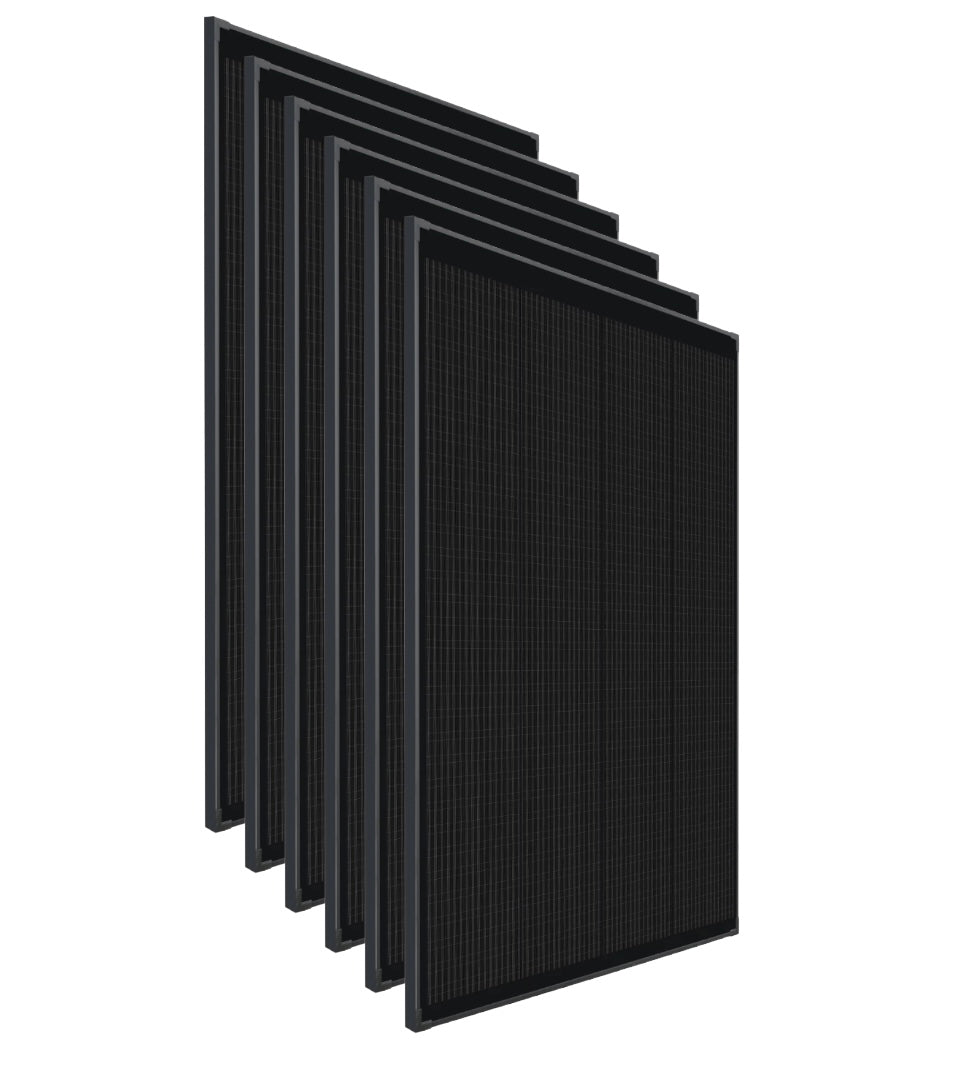

• 6 × 500W 12V Mono Shingled Fixed Solar Panel

• Pre-wired MC4 leads (per panel)

• Mounting holes in frame (use with suitable racking/feet; hardware not included)

• Quick-start wiring guide (digital)

Technical Specifications — Per Panel

• Maximum Power (Pmax): 500 W

• Maximum Power Voltage (Vmp): 25.2 V

• Maximum Power Current (Imp): 19.85 A

• Open Circuit Voltage (Voc): 29.74 V

• Short Circuit Current (Isc): 21.44 A

• Cell Type/Tech: Monocrystalline, shingled

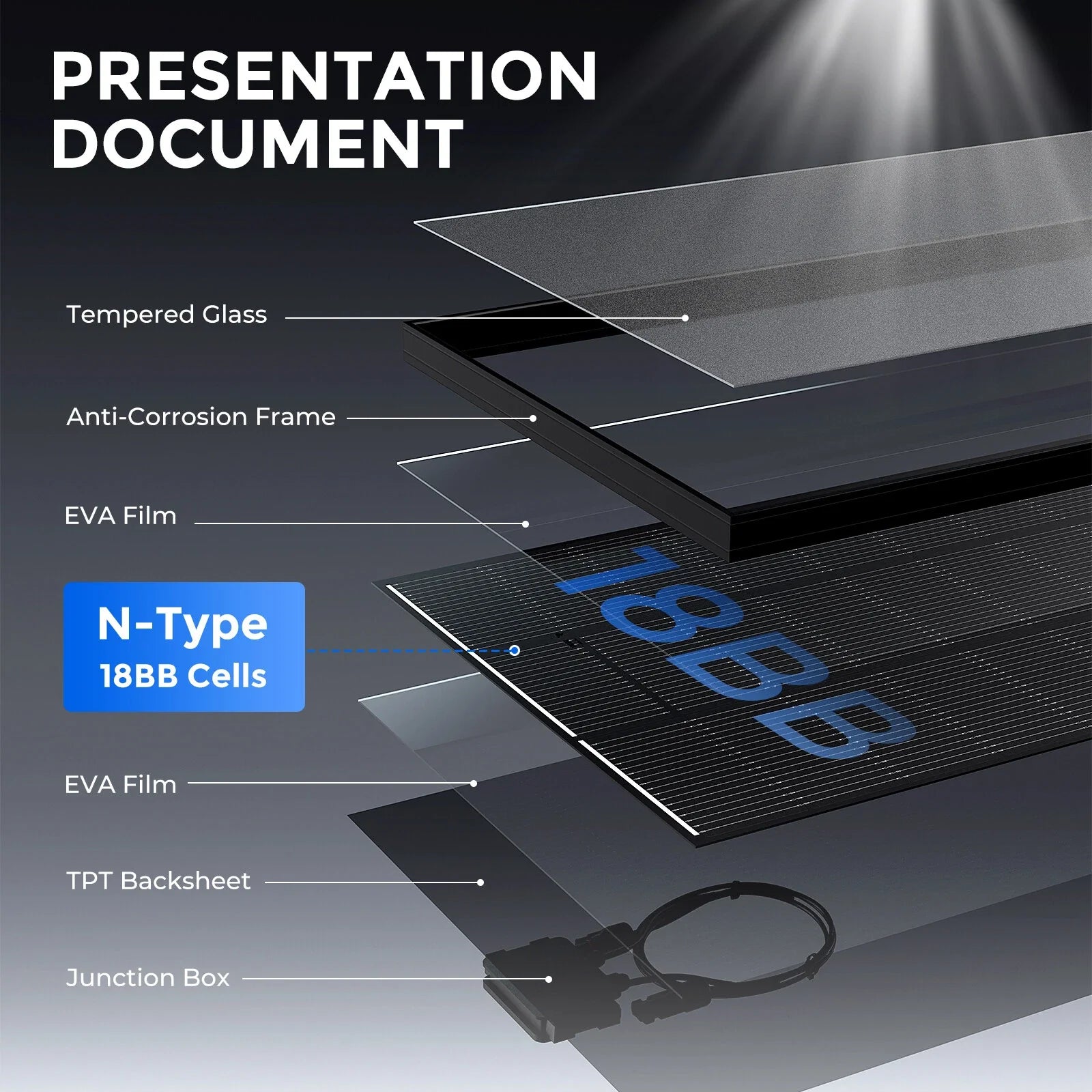

• Frame/Glazing: Corrosion-resistant anodised aluminium, tempered glass

• Dimensions: 1,340 × 670 × 30 mm

• Weight: 14.5 kg

• Connector: MC4-compatible

• Warranty: 25-year performance warranty

Note: Electrical specs are per panel under STC. Real-world output varies with temperature, irradiance, tilt, and shading.

Bundle Totals (6 Panels)

• Total Peak Power: 3,000 W

• Approx. Total Weight: ~87 kg (6 × 14.5 kg)

• Roof Area Planning: 6 × (1,340 × 670 mm)

• Array Voltage/Current: depends on wiring (see tips below)

Wiring & System Design Tips (Australia)

• Match your controller/inverter. Check PV input limits (max PV voltage & current).

• Common layouts:

  • Series-parallel for 24 V or 48 V banks to keep string voltage in an efficient MPPT range while managing current.

  • All-series only if your MPPT/hybrid inverter supports the higher string Voc (consider cold-weather Voc).

• Cabling: Use correctly-rated DC solar cable sized for voltage drop (long runs may require heavier gauge).

• Protection: Fit DC isolators, fusing/overcurrent protection and lightning/surge protection where required.

• Orientation/Tilt (AU): North-facing, minimise shade; tilt ≈ local latitude (±10°) for year-round yield.

• Compliance: Install to AS/NZS 5033 and AS/NZS 3000. Engage a licensed electrician where required.

Ideal For

Caravans & RVs · 4WD/camping rigs · Tiny homes · Marine/boat solar · Remote sheds & cabins · Off-grid workshops · Hybrid inverter systems with battery storage.

FAQs

Q: Will this work with a 12V system?
A: Yes. Use an MPPT controller sized to the array’s voltage/current. Many customers step up to 24V or 48V banks for better inverter efficiency with 3 kW of PV.

Q: Series or parallel?
A: It depends on your MPPT/hybrid inverter PV limits. Series-parallel is a common choice to keep Voc/Vmp in range while controlling current.

Q: What MPPT size should I use?
A: For 3,000 W PV, size the MPPT/hybrid inverter PV input accordingly (allowing headroom vs. STC). Check both max PV voltage (cold Voc) and max PV current.

Q: Is mounting hardware included?
A: Panels include framed mounting holes; select mounting feet/rails appropriate to your roof or ground-mount system.

Q: Do you ship Australia-wide?
A: Yes — free delivery online. Orders usually dispatch in 1–2 business days.
