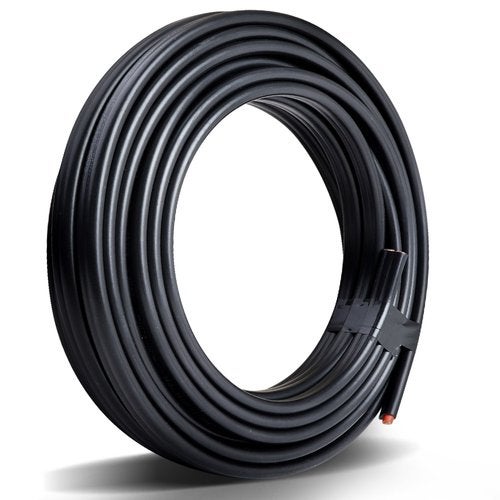

8B&S 10M Twin Core Wire Electrical Cable Extension Car 450V 2 Sheath

With its twin core design, our B & S Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. While ordinary wires has on average capacity, our B & S cable has a higher capacity. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.

Features

8B&S twin sheath automotive cable

Oxygen-free copper core conductor

Low eccentricity

Reinforced PVC material

SAA-certified

Specifications:

Conductor: Oxygen-free plain copper wire to AS/NZ 1125

Insulation: V90 PVC to AS/NZ 3808

Sheath: 5V90 PVC to AS/NZ 3808

Amp rating: 59

No. of cores: 2

Cable Length: 10m

Strand no. diameter: 96/0.32mm

Wire Gauge:9 AWG

Nominal area: 7.2mm²

Nominal O.D.: 7.1mm x 12.5mm

Colour: Black sheathing

Conductor resistance <2.38Ω/Km(20?)

Dielectric strength(kV/sec AC):2.5/60

Unaged acceptable tensile strength ≥ 12.5Mpa

Unaged acceptable ultimate elongation ≥130%

Assembly Required: No

Number of Packages: 1

Package Content

Twin core cable x1

This product comes with 1 year warranty
