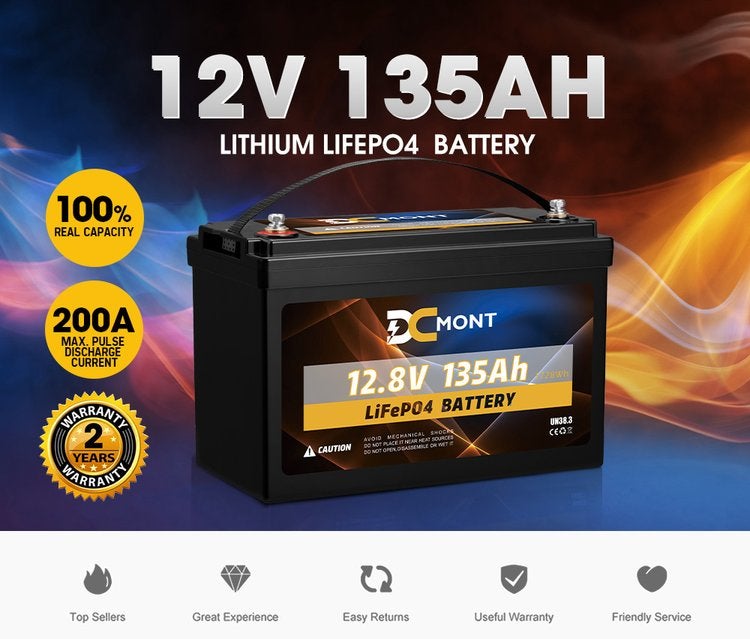

DC MONT 12V 135Ah Lithium Battery LiFePO4 Phosphate Deep Cycle Rechargeable

DC MONT 12.8V 135Ah LiFePO4 battery with 1,728Wh nominal energy, a 100A continuous-discharge BMS rating and Grade A prismatic cells. It is designed for suitably configured caravan, 4WD, camping and off-grid systems.

Key Specifications

• Nominal voltage: 12.8V
• Nominal capacity: 135Ah
• Nominal energy: 1,728Wh
• Charge cut-off voltage: 14.6V
• Discharge cut-off voltage: 9.2V
• Maximum charge current: 50A
• Maximum continuous discharge current: 100A
• Maximum pulse discharge: 200A for up to 1 second
• Maximum configuration: two identical batteries in series and two in parallel
• Charge temperature: 0°C to 50°C
• Storage temperature: -20°C to 60°C
• Listed cycle life: 6,000 cycles at 25°C, 0.5C charge and 1C discharge
• Packaged dimensions: 39 × 23 × 28cm
• Packaged weight: 14.5kg
• Warranty: 2 years

Integrated BMS Protection

The upgraded battery-management system provides manufacturer-listed protection for over-charge, over-discharge, over-current, short circuit, high/low temperature and charging current, with cell balancing. These features do not replace suitable fusing, isolation, cable sizing or installation practices.

Inverter and Load Compatibility

The 100A continuous-discharge rating is the relevant BMS limit for sustained loads. The 200A specification is a pulse rating for no more than one second. Check the intended inverter’s DC input at the actual AC load, including efficiency losses and start-up surge.

Appliances such as fridges, air conditioners and kettles vary widely in demand. Do not assume compatibility from the appliance category alone.

Charging and Battery-Bank Configuration

Use LiFePO4-compatible charging equipment within the 50A maximum charge-current and 14.6V cut-off limits. Charging is specified from 0°C to 50°C.

The manufacturer lists a maximum 2S/2P configuration. Only connect identical batteries of the same model, age and state of charge, and follow the current manual for balancing, cable and protection requirements.

Package Contents

• One DC MONT 135Ah LiFePO4 battery
• Two combination screws
• User manual

Compare the smaller 100Ah LiFePO4 battery or larger MOBI 175Ah battery. Browse all lithium batteries.

Frequently Asked Questions

Is 200A the continuous output?

No. The listed continuous-discharge limit is 100A; 200A is available only as a pulse for up to one second.

Can it be charged below 0°C?

The listed charging range begins at 0°C. Do not charge below that temperature unless current manufacturer instructions specifically permit it.
