Gentrax 12V 100Ah Blade LiFePO4 Battery

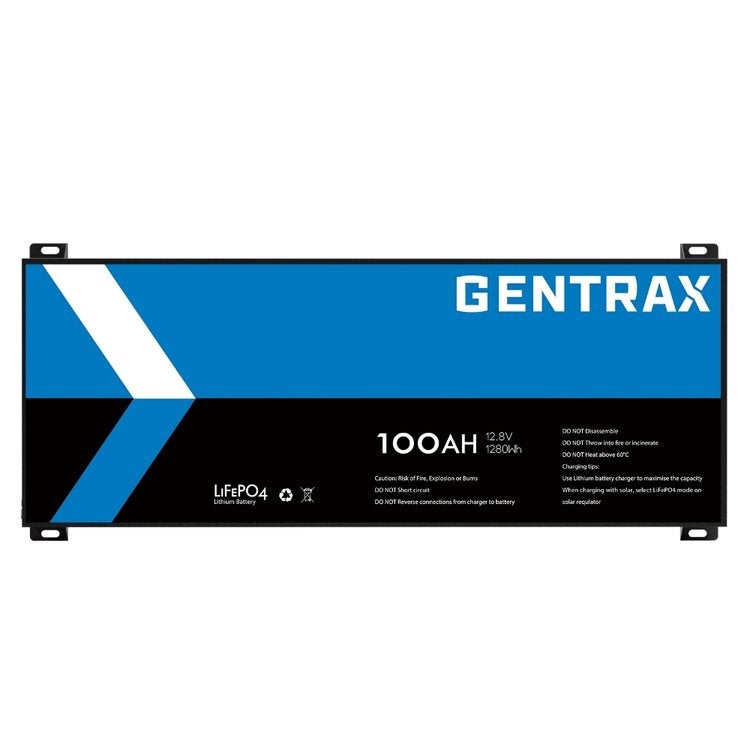

Gentrax 12V 100Ah Blade LiFePO4 battery

The Gentrax Blade is a 12.8V 100Ah LiFePO4 battery with 1,280Wh of nominal energy. Its long-format case is intended for compatible caravan, RV, backup and off-grid installations where the available mounting space suits its blade-style dimensions.

Key benefits

• 100Ah capacity and 1,280Wh nominal energy
• 100A rated continuous discharge and 200A maximum discharge for up to five seconds
• Approximately 3,000 cycles under the stated test conditions
• Up to four matching batteries may be connected in parallel; series connection is not supported
• Two-year warranty

Specifications

Check the installation space

Measure the proposed battery compartment before ordering. The long-format 630mm case has different mounting requirements from a conventional 100Ah battery, and the installation must allow for secure restraint, terminal access, cabling and ventilation around associated equipment.

Charging and inverter compatibility

Use a lithium-compatible mains charger, MPPT controller or DC–DC charger within the stated 14.2–14.6V range. For a power inverter, calculate continuous DC input plus start-up surge and keep continuous demand within the 100A rating.

Compare other slimline and space-saving lithium batteries, browse all LiFePO4 batteries or view the deep-cycle battery range.

Package contents

• 1 × Gentrax 12V 100Ah Blade LiFePO4 battery

Frequently asked questions

What makes this a Blade battery?
It uses a long-format case measuring 630 × 240 × 260mm. Confirm those dimensions suit the intended mounting location.

Can it be connected in series?
No. The published specification permits up to four matching batteries in parallel but not series connection.

Can it charge below 0°C?
No. The published charging range begins at 0°C.
