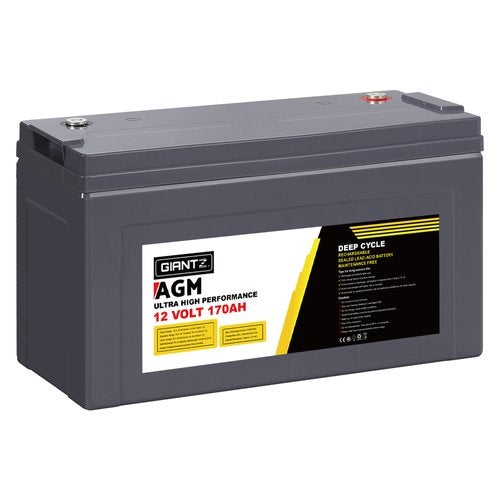

Giantz 170Ah Deep Cycle Battery 12V AGM Marine Sealed Power Portable Box Solar Caravan Camping

Giantz 12V 170Ah AGM deep-cycle battery with approximately 2,040Wh of nominal energy for compatible caravan, motorhome, marine, solar and backup-power systems. Its sealed AGM construction uses bolt-down terminals and requires no electrolyte top-up.

This product is intended as a deep-cycle house battery rather than an engine-starting battery. Confirm its size, weight, charger settings and current capability against the complete 12V system before purchase.

Key specifications

• Nominal voltage: 12V
• Rated capacity: 170Ah at the 10-hour rate
• Nominal energy: approximately 2,040Wh
• AGM deep-cycle construction
• Supplier-listed maximum cycle life: up to 1,400 cycles at 30% depth of discharge
• Maximum charge current: 33A
• Supplier-listed maximum discharge current: 1,550A for 5 seconds
• Float charge voltage: 13.5V to 13.8V
• Equalise charge voltage: 13.8V to 14.1V
• Cycle charge voltage: 14.4V to 15.0V
• Self-discharge: approximately 3% per month at 25°C
• Discharge temperature: -15°C to 50°C
• Charge temperature: -20°C to 50°C
• Storage temperature: -20°C to 50°C
• Internal resistance: approximately 3.5mΩ
• Terminals: bolt-down
• Container: ABS
• Dimensions: 407 × 173 × 237mm
• Approximate weight: 35kg

High-capacity 12V house battery

The 170Ah rating provides more storage than smaller 100Ah or 120Ah AGM options where installation space and payload allow. Actual appliance run time varies with discharge rate, ambient temperature, battery age, inverter losses and the reserve maintained to protect service life.

Compare the complete AGM battery range or browse all deep-cycle batteries.

Charging and inverter compatibility

Use an AGM-compatible charger or MPPT solar controller configured within the stated charging range. The supplied 1,550A figure applies for five seconds and must not be treated as a continuous inverter rating.

Account for inverter efficiency, appliance start-up surge and simultaneous DC loads. Cable size, fusing, isolation and battery mounting must be designed for the installation and the battery's 35kg weight.

Storage and battery care

Charge the battery on receipt and recharge it promptly after use. During long storage, the supplier recommends charging at least every three months. Avoid prolonged deep discharge and verify charger settings against the current Giantz instructions.

Frequently asked questions

How much energy does 170Ah provide?

The nominal calculation is approximately 2,040Wh (12V × 170Ah). Usable energy is lower after conversion losses and depends on the discharge rate and depth of discharge.

Is this suitable as a starter battery?

No. It is presented as an AGM deep-cycle battery for auxiliary and house-power applications, not engine starting.

Is a separate battery box included?

The supplied package list includes one Giantz battery and one user manual. A separate battery box is not listed.

What's included

• 1 × Giantz 12V 170Ah AGM deep-cycle battery
• 1 × User manual
