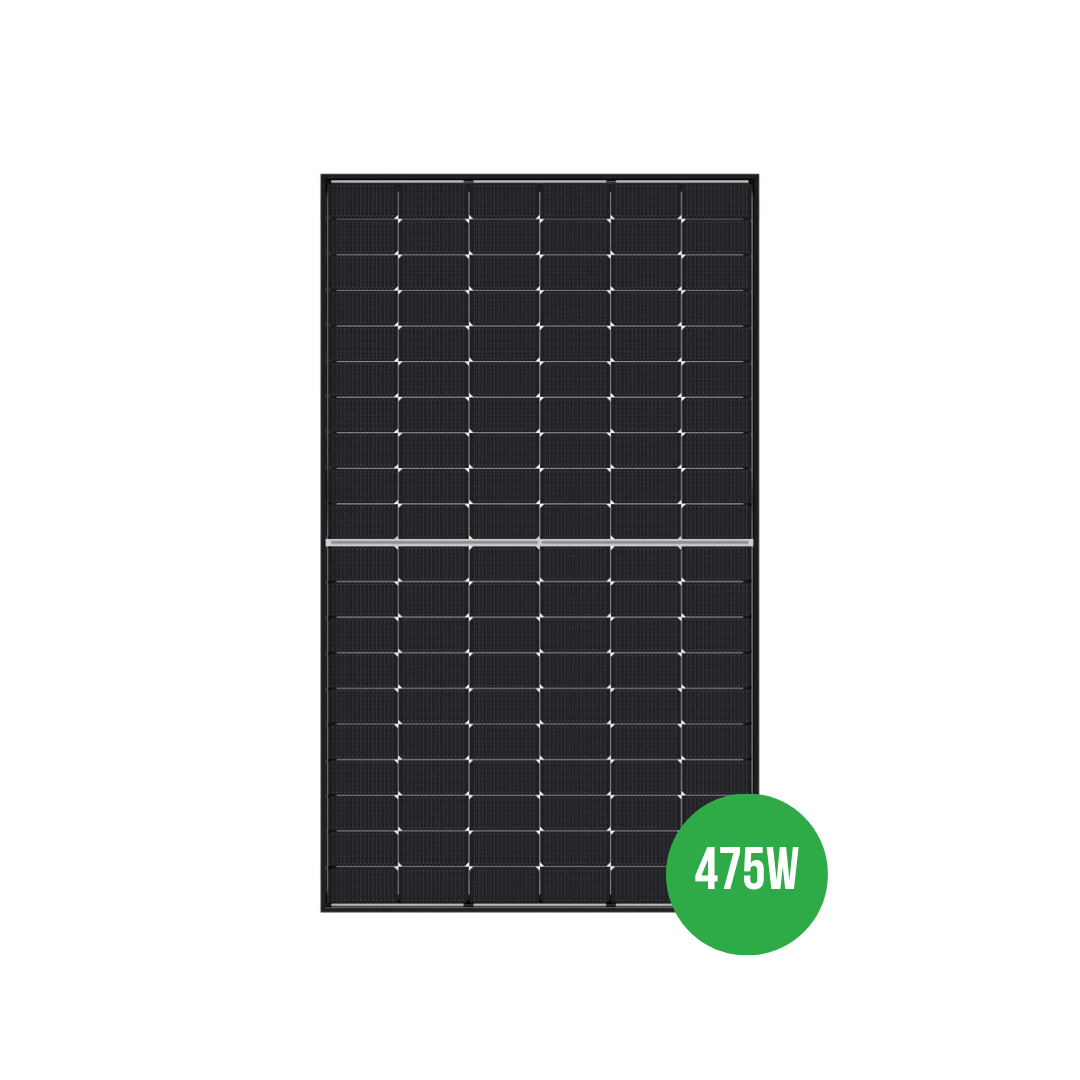

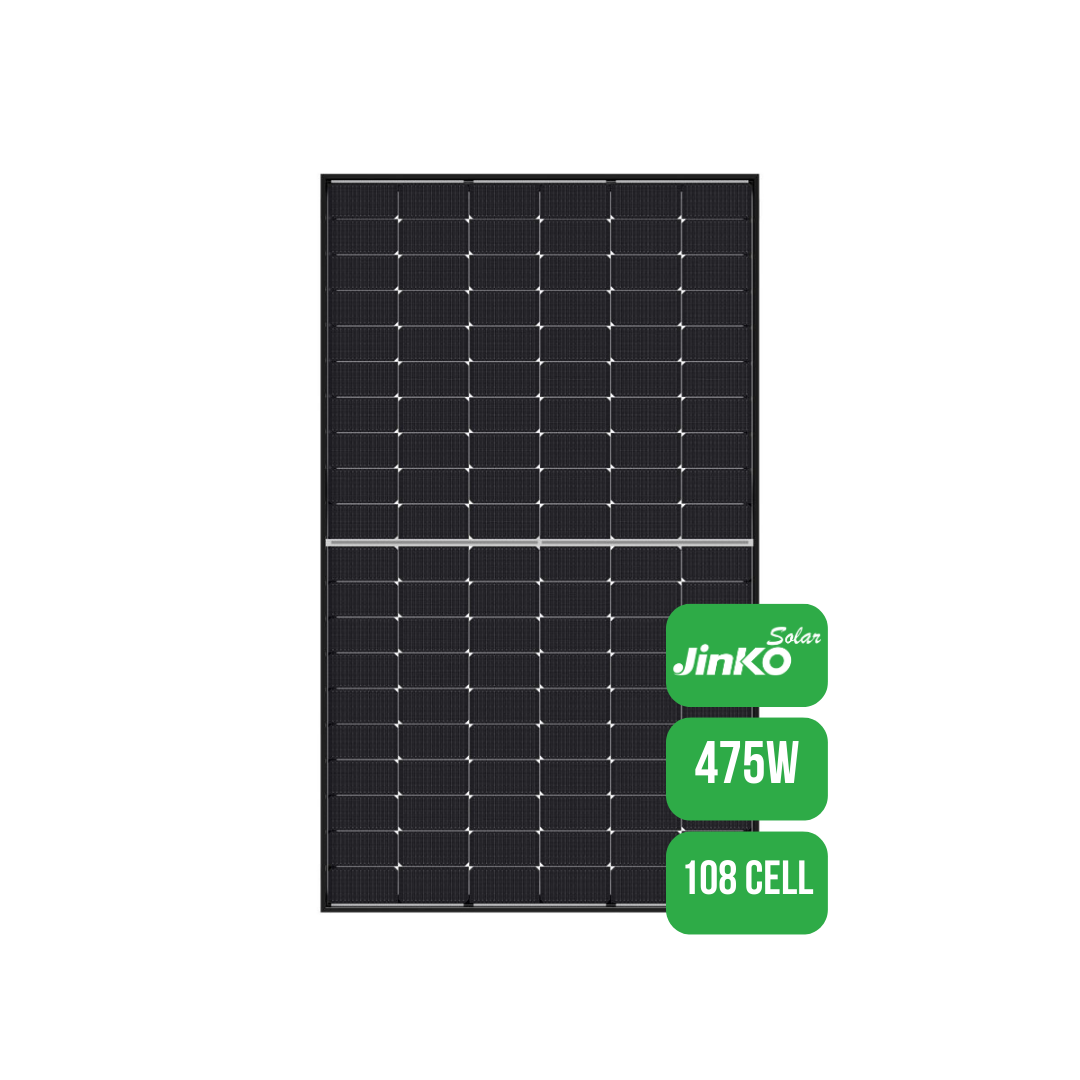

Jinko 475W Tiger Neo N-Type Dual-Glass Black Solar Panel
Jinko 475W Tiger Neo N-Type Dual-Glass Black Solar Panel
Couldn't load pickup availability
Jinko 475W Tiger Neo N-Type Dual-Glass Black Solar Panel
The Jinko 475W Tiger Neo is a compact, high-efficiency N-Type solar module designed for residential rooftops, commercial solar and high-performance off-grid systems. The exact model supplied is JKM475N-48HL4M-DV-Z2-OC, combining N-Type monocrystalline cells, mono-facial dual-glass construction and a 30mm black frame for long-term durability and a clean finish.
Availability: In stock and available for sale now.
Key benefits
- 475W rated output with up to 23.77% module efficiency.
- N-Type monocrystalline technology for lower degradation and strong long-term energy yield.
- HOT 3.0 cell technology engineered for efficiency and reliability.
- Mono-facial dual-glass construction for improved durability, moisture resistance and protection from environmental stress.
- Compact 1762 × 1134mm footprint for high power density on available roof space.
- 30mm black aluminium frame for a neat, modern appearance.
- IP68 junction box and MC4 / MC4-EVO2 compatible connection system.
- 5400Pa front / 2400Pa rear mechanical load rating.
Ideal applications
- Residential rooftop solar systems
- Commercial rooftop solar arrays
- Hybrid and battery-ready systems
- Off-grid homes, workshops and sheds
- Coastal and demanding Australian environments
Technical specifications
| Brand | Jinko Solar |
| Series | Tiger Neo |
| Model / SKU | JKM475N-48HL4M-DV-Z2-OC |
| Rated Power | 475W |
| Module Efficiency | Up to 23.77% |
| Cell Technology | N-Type monocrystalline |
| Cell Count | 96 cells |
| Construction | Mono-facial dual glass |
| Maximum Power Voltage (Vmp) | 31.19V |
| Maximum Power Current (Imp) | 15.23A |
| Open Circuit Voltage (Voc) | 36.76V |
| Short Circuit Current (Isc) | 15.98A |
| Dimensions | 1762 × 1134 × 30mm |
| Weight | Approx. 21.5kg |
| Front Glass | 1.6mm anti-reflection coated glass |
| Rear Glass | 1.6mm heat-strengthened glass |
| Frame | 30mm black anodised aluminium alloy |
| Junction Box | IP68 |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse | 30A |
| Operating Temperature | -40°C to +70°C |
| Mechanical Load | 5400Pa front / 2400Pa rear |
Warranty
Backed by Jinko Solar with a 25-year product warranty and 30-year linear performance warranty, subject to the manufacturer’s warranty conditions.
Installation note
This is a high-output house-style solar module. Confirm inverter or MPPT PV input limits, string sizing, cable sizing, mounting requirements and applicable electrical standards before installation. It is not intended to be connected directly to a 12V battery.
