Jinko Solar
Jinko Tiger Neo III 48QL6-DB All-Black N-Type TOPCon Dual-Glass Solar Panel 450W–475W
Jinko Tiger Neo III 48QL6-DB All-Black N-Type TOPCon Dual-Glass Solar Panel 450W–475W
Couldn't load pickup availability

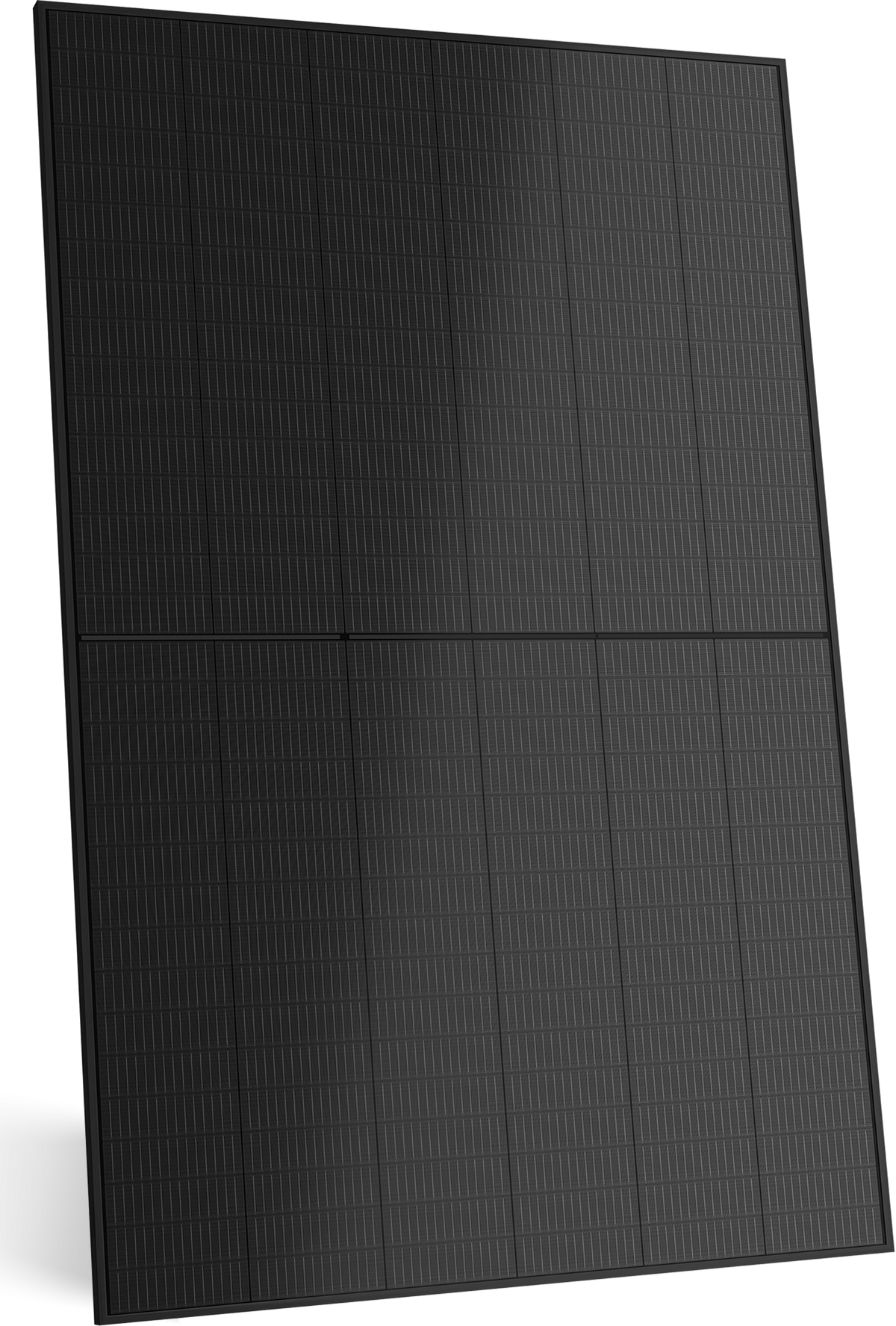

Jinko Tiger Neo III 48QL6-DB All-Black Solar Panel
Choose premium rooftop aesthetics without giving up performance. The 48QL6-DB uses Jinko’s N-type TOPCon platform, all-black styling and dual-glass construction in a compact residential format, with selectable 450W to 475W power classes.
Why choose this Jinko Tiger Neo III panel?
- Next-generation N-type TOPCon cells for high conversion efficiency and excellent low-light output
- Low −0.26%/°C Pmax temperature coefficient for stronger performance in Australian heat
- Only 1% first-year degradation and 0.35% annual degradation thereafter
- Dual-glass construction, IP68 junction box and 5400 Pa front / 2400 Pa rear static-load rating
- 25-year product warranty and 30-year linear power warranty, with up to 88.85% output at year 30
- IEC 61215:2021 and IEC 61730:2023 certified
Ideal applications
Premium homes, architecturally sensitive rooftops, new builds, battery-ready solar systems and commercial facades where a uniform all-black appearance matters.
Mechanical specifications
| Cell technology | N-type monocrystalline TOPCon |
| Cell layout | 192 (48 × 4) |
| Dimensions | 1762 × 1134 × 30 mm |
| Weight | 24.4 kg |
| Front glass | 2.0 mm anti-reflection coated glass |
| Back glass | 2.0 mm heat-strengthened glass |
| Frame | Anodised aluminium alloy |
| Junction box | IP68 |
| System voltage | 1500 V DC (IEC) |
| Series fuse | 30 A |
| Operating temperature | −40°C to +70°C (short-term up to 85°C subject to IEC TS 63126) |
| Static load | 5400 Pa front / 2400 Pa rear |
Electrical specifications at STC
| Power | Vmp | Imp | Voc | Isc | Efficiency |
|---|---|---|---|---|---|
| 450W | 30.29 V | 14.86 A | 35.17 V | 15.60 A | 22.52% |
| 455W | 30.46 V | 14.94 A | 35.44 V | 15.65 A | 22.77% |
| 460W | 30.63 V | 15.02 A | 35.69 V | 15.70 A | 23.02% |
| 465W | 30.80 V | 15.10 A | 35.94 V | 15.75 A | 23.27% |
| 470W | 30.97 V | 15.18 A | 36.19 V | 15.80 A | 23.52% |
| 475W | 31.13 V | 15.26 A | 36.44 V | 15.85 A | 23.77% |
Temperature coefficients: Pmax −0.26%/°C; Voc −0.24%/°C; Isc +0.046%/°C.
What you receive
1 × genuine Jinko Solar Tiger Neo III module in your selected power class. Mounting hardware, inverter, isolators and installation are not included unless stated separately.
Important installation note
This is a high-voltage solar module intended for correctly engineered systems. Confirm voltage, current, string sizing, mounting loads and equipment compatibility before purchase. Grid-connected installation must be completed by appropriately licensed and accredited professionals in accordance with Australian requirements.
Manufacturer specifications are subject to permitted production tolerances and revision. Images illustrate the module family; small label or cell-layout details may vary by power class.
