Jinko Solar
Jinko Tiger Neo III 51QL6-DB All-Black N-Type TOPCon Commercial Solar Panel 490W–515W
Jinko Tiger Neo III 51QL6-DB All-Black N-Type TOPCon Commercial Solar Panel 490W–515W
Couldn't load pickup availability

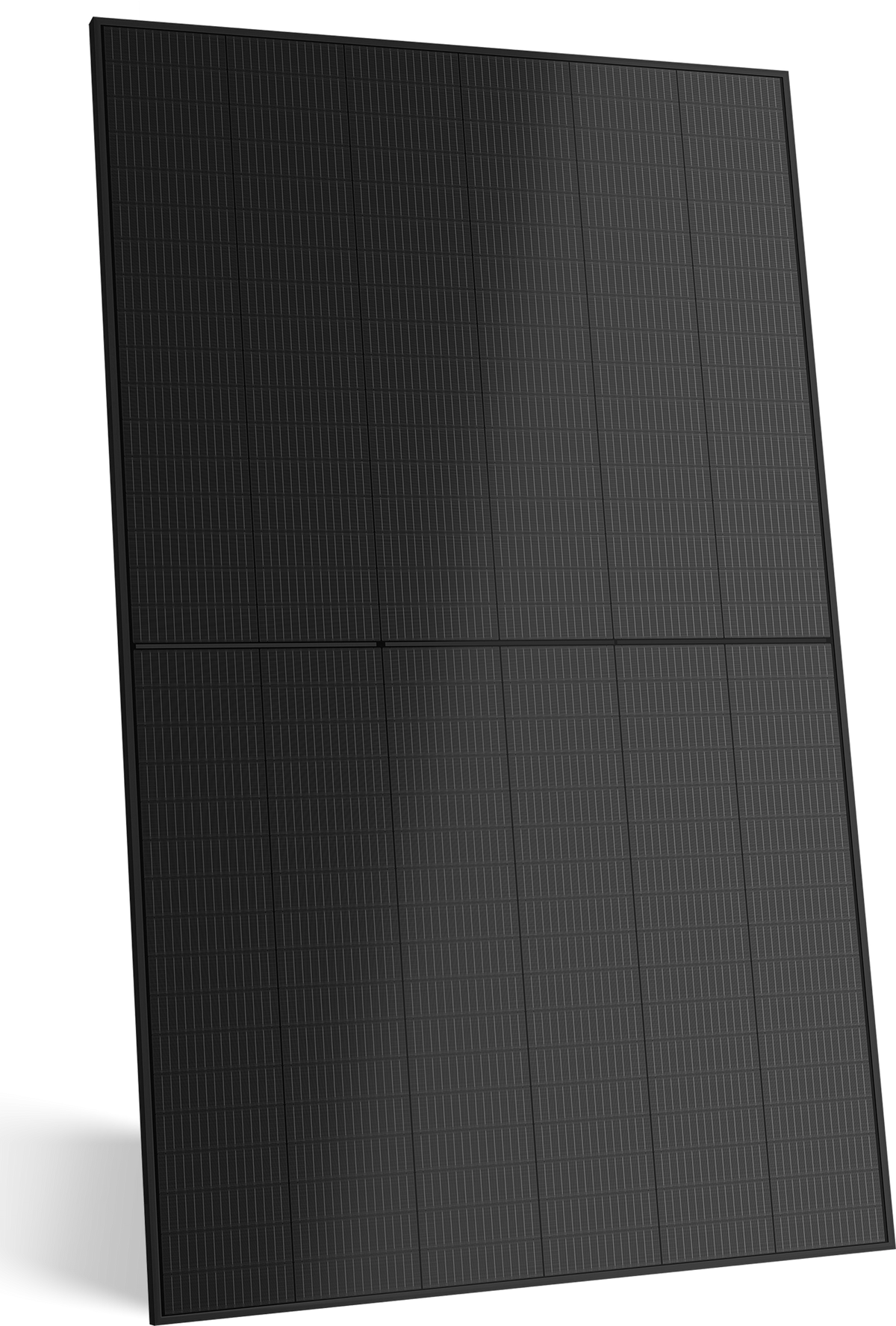

Jinko Tiger Neo III 51QL6-DB All-Black Commercial Solar Panel
A high-output commercial module with a premium uniform appearance. The all-black 51QL6-DB offers 490W to 515W power classes, up to 23.83% efficiency, N-type TOPCon technology and robust dual-glass construction for visible commercial rooftops and design-led projects.
Why choose this Jinko Tiger Neo III panel?
- Next-generation N-type TOPCon cells for high conversion efficiency and excellent low-light output
- Low −0.26%/°C Pmax temperature coefficient for stronger performance in Australian heat
- Only 1% first-year degradation and 0.35% annual degradation thereafter
- Dual-glass construction, IP68 junction box and 5400 Pa front / 2400 Pa rear static-load rating
- 25-year product warranty and 30-year linear power warranty, with up to 88.85% output at year 30
- IEC 61215:2021 and IEC 61730:2023 certified
Ideal applications
Premium commercial rooftops, retail centres, offices, hotels, schools, visible industrial buildings and large residential or rural arrays.
Mechanical specifications
| Cell technology | N-type monocrystalline TOPCon |
| Cell layout | 204 (51 × 4) |
| Dimensions | 1906 × 1134 × 30 mm |
| Weight | 23.7 kg |
| Front glass | 1.6 mm anti-reflection coated glass |
| Back glass | 1.6 mm heat-strengthened glass |
| Frame | Anodised aluminium alloy |
| Junction box | IP68 |
| System voltage | 1500 V DC (IEC) |
| Series fuse | 30 A |
| Operating temperature | −40°C to +70°C (short-term up to 85°C subject to IEC TS 63126) |
| Static load | 5400 Pa front / 2400 Pa rear |
Electrical specifications at STC
| Power | Vmp | Imp | Voc | Isc | Efficiency |
|---|---|---|---|---|---|
| 490W | 32.63 V | 15.02 A | 37.97 V | 15.80 A | 22.67% |
| 495W | 32.79 V | 15.10 A | 38.22 V | 15.85 A | 22.90% |
| 500W | 32.94 V | 15.18 A | 38.47 V | 15.90 A | 23.13% |
| 505W | 33.10 V | 15.26 A | 38.72 V | 15.95 A | 23.36% |
| 510W | 33.25 V | 15.34 A | 38.96 V | 16.00 A | 23.60% |
| 515W | 33.40 V | 15.42 A | 39.21 V | 16.05 A | 23.83% |
Temperature coefficients: Pmax −0.26%/°C; Voc −0.24%/°C; Isc +0.046%/°C.
What you receive
1 × genuine Jinko Solar Tiger Neo III module in your selected power class. Mounting hardware, inverter, isolators and installation are not included unless stated separately.
Important installation note
This is a high-voltage solar module intended for correctly engineered systems. Confirm voltage, current, string sizing, mounting loads and equipment compatibility before purchase. Grid-connected installation must be completed by appropriately licensed and accredited professionals in accordance with Australian requirements.
Manufacturer specifications are subject to permitted production tolerances and revision. Images illustrate the module family; small label or cell-layout details may vary by power class.
