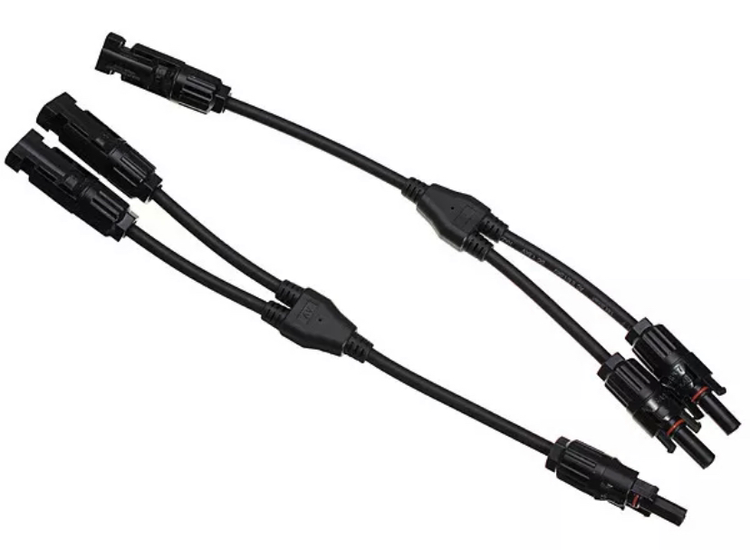

MC4 Y BRANCH-ADAPTOR KIT

The MC4 Y BRANCH-ADAPTOR KIT provides all the components needed to install multiple of our SunPower solar panels or others in parallel. It connects positive and negative cables from two solar panels into two single, negative and positive outputs for parallel connection to a recommended solar regulator.

Specifications:

Rate Voltage: 1000V
Rated Current: 30A(4mm2,6mm2)
Waterproof Rate: IP 67
Test Voltage: 6000V(50Hz)
Insulation material: PPO Contact material
Copper: Sliver plated
Safe Class : 2
Flame Class: UL94-V0
Contact resistant of plug connectors: 5m
Insertion force: 50N
Diameter of Pin or Socket: 4mm
Locking System: Snap in
Suitable cable : 2.5mm2/4mm2/6mm2(AWG14/12/10)

What's Included:

1x Male Y Type Solar Panel cable Connector
1x Female Y Type Solar Panel cable Connector
Warranty: 1 Year
Brand: REDARC
SKU: SRC0006
