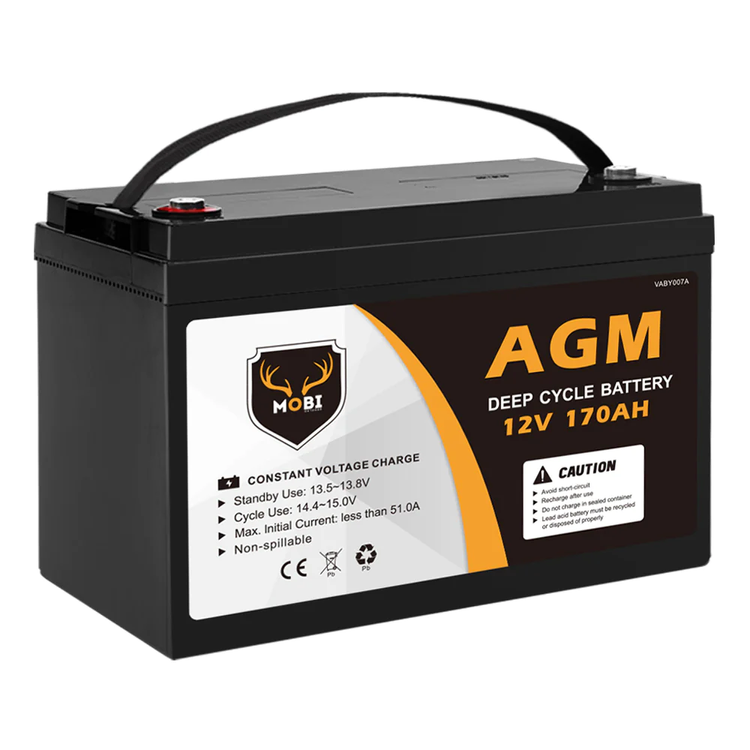

MOBI 12V 170AH AGM Deep Cycle Caravan Camping Battery

MOBI 12V 170Ah AGM deep-cycle battery for suitably configured caravan, camping, 4WD, solar and backup-power systems. It provides approximately 2,040Wh of nominal energy, with a sealed ABS case, bolt-down terminals and a carry strap.

Key Specifications

• Brand: MOBI
• Nominal voltage: 12V
• Rated capacity: 170Ah
• Approximate nominal energy: 2,040Wh
• Battery type: AGM deep cycle
• Maximum initial charge current: less than 51A
• Standby-use voltage: 13.5–13.8V
• Cycle-use voltage: 14.4–15.0V
• Listed cycle life: up to 1,600 cycles
• Listed monthly self-discharge: within 3%
• Discharge temperature: -20°C to 55°C
• Packaged dimensions: 40.5 × 24.5 × 30cm
• Packaged weight: 30kg
• Warranty: 2 years
• SKU: VABY007A-SUN

Charging and Battery Care

Use a mains charger, solar controller or DC-DC charger with a compatible AGM profile. The manufacturer lists a maximum initial charge current below 51A. Check the current manual and charging-equipment instructions before applying the listed standby or cycle-use voltages.

Recharge after use and avoid repeated over-discharge. AGM batteries generally provide longer service when operated within the manufacturer’s recommended depth of discharge rather than being regularly drained completely.

Runtime and System Matching

The battery stores approximately 2,040Wh of nominal energy. Actual usable runtime is lower and depends on the load, battery condition, temperature, duty cycle, cable losses and any inverter conversion loss.

For high-current or inverter applications, confirm the permitted continuous discharge current and size the cable, fuse and isolation equipment accordingly. Amp-hour capacity alone does not establish inverter compatibility.

Installation Considerations

• Allow for the listed 30kg packaged weight and measure the available compartment.
• Secure the battery against movement and protect positive cabling close to the battery.
• Use correctly sized cable and clean, tight terminations.
• Follow the manufacturer’s ventilation, mounting and temperature requirements.

Package Contents

• One MOBI 12V 170Ah AGM battery

Compare the smaller 120Ah AGM battery or larger 200Ah AGM battery. Browse all AGM deep-cycle batteries and compatible DC-DC battery chargers.

Frequently Asked Questions

Is 170Ah suitable for a caravan?

It can suit a caravan system when its dimensions, weight, charging requirements and available energy match the planned loads and installation.

Does deep-cycle mean it can be completely discharged?

No. Deep-cycle construction does not mean repeated complete discharge is harmless. Follow the manufacturer’s depth-of-discharge and recharging guidance.
