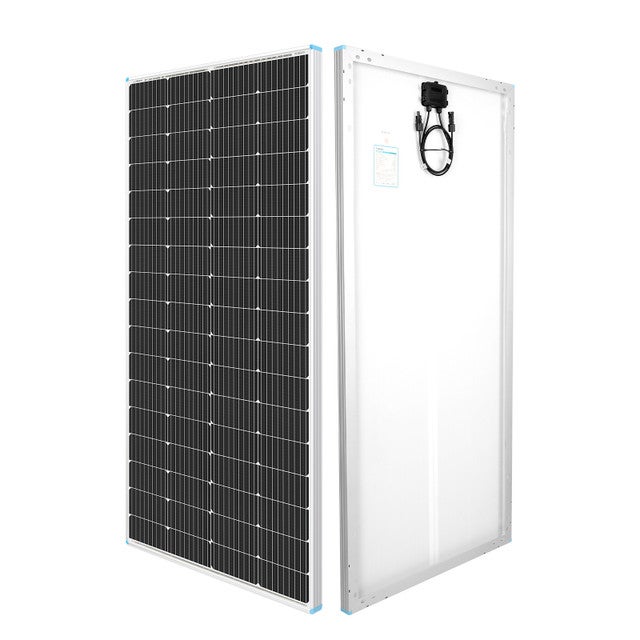

Renogy 200 Watt 12 Volt Monocrystalline Solar Panel

Renogy 200W Monocrystalline Solar Panel delivers up to 1000 Watt-hours of electricity per day with 5–6 hours of direct sunlight. It features a guaranteed positive output tolerance of 0%–3%, ensuring consistent and reliable performance.

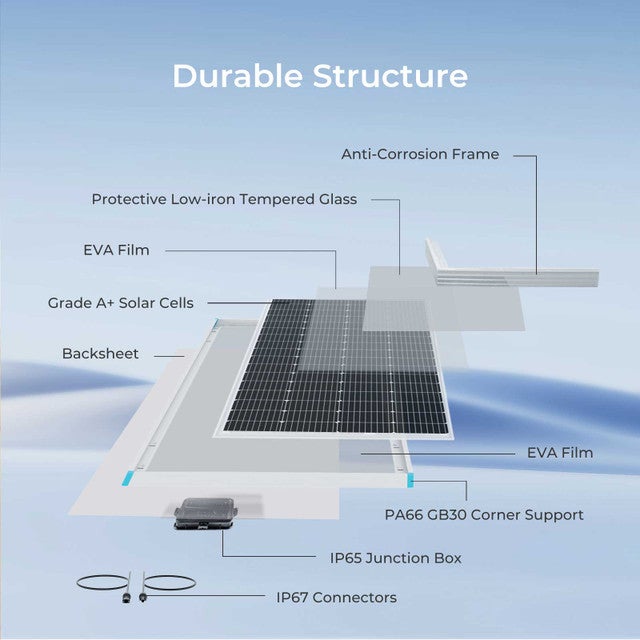

Designed for durability, this panel is built to endure challenging environments, ensuring long-lasting and dependable use.

Built with Grade A+ solar cells, this panel maximizes efficiency through 9 busbars for enhanced conductivity and PERC technology for improved light reflection.

Thanks to half-cut cells and bypass diodes, this panel maintains consistent solar energy conversion, even in conditions of accidental shading, while protecting against hotspot overheating.

Specifications:

Max Power at STC 200W
Open Circuit Voltage 23V
Short Circuit Current 11.05A
Optimum Operating Voltage 19.2V
Optimum Operating Current 10.42A
Operating Temperature -40°F~194°F / -40℃~90℃
Maximum System Voltage 600 VDC UL
Maximum Series Fuse Rating 20A
Output Cable 13 AWG 2.6 ft (0.9m) long

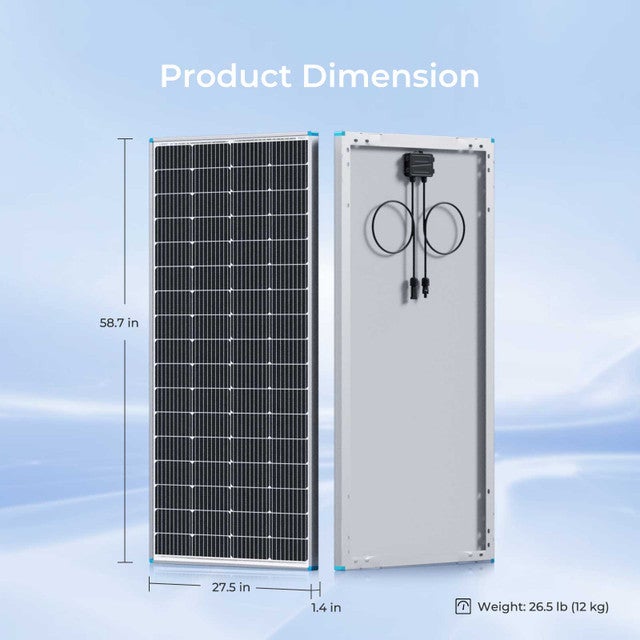

Dimensions 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight 26.46 lb (12 kg)
Solar Cells 68 Cells (4*17)
Junction Box IP65
Solar Connectors
Module Efficiency 19.2%
Frame Anodized Aluminium Alloy
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
10-year material and workmanship warranty
Accessories 1-year material warranty
