Renogy PRO 220W Compact Suitcase Portable Camping Solar Panel Blanket
Renogy PRO 220W Compact Suitcase Portable Camping Solar Panel Blanket
Couldn't load pickup availability
Features
Portable Power Anywhere
Please ensure that the DC input voltage for the portable power station exceeds 25V.

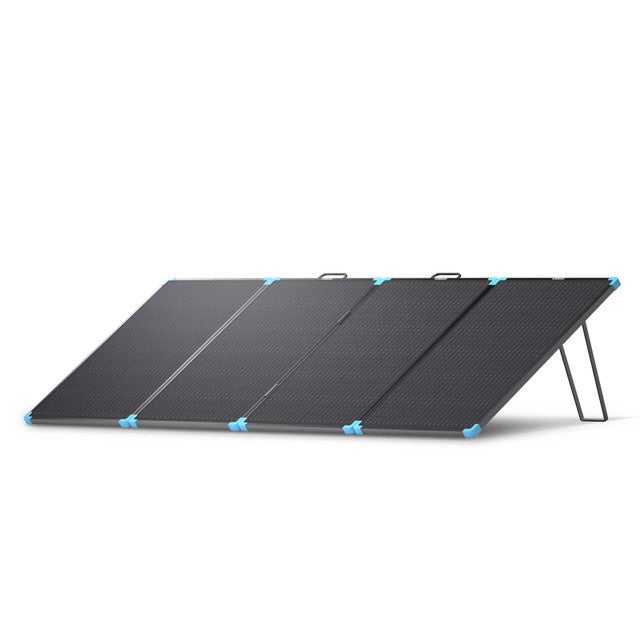

Robust Structure for Consistent Panel Output
Sturdy, rust-resistant kickstands allow maximum power generation.
The Dynamic Power Boost for Existing Solar Systems
Please ensure that the PV input voltage remains lower than the solar controller input voltage
Specifications
Max Power at STC: 220W
Open Circuit Voltage: 23.6V
Short Circuit Current: 12.1A
Optimum Operating Voltage: 20.0V
Optimum Operating Current: 11A
Maximum System Voltage:: 600VDC
Maximum Series Fuse Rating:: 15A
Cell Efficiency: 22.70%
Module Efficiency: 17.3%
Operating Temperature:: -40°F~185°F / -40℃~85℃

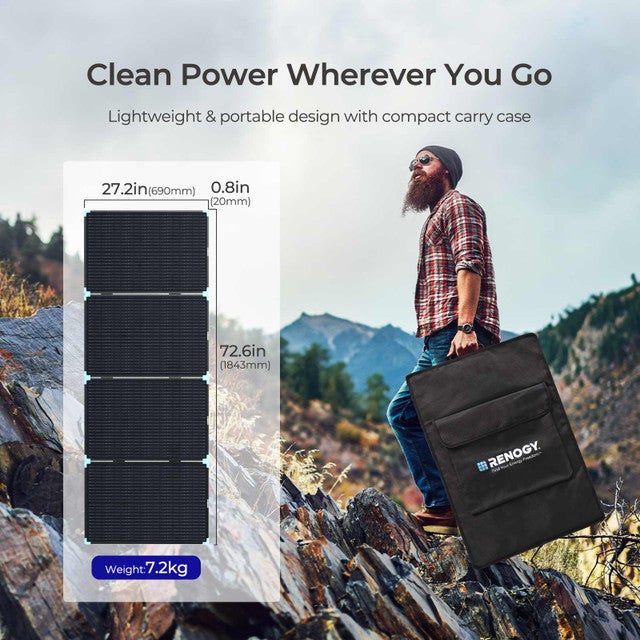

Dimensions (with handle):: 1843x730x20 mm (72.56x28.74x0.79 in)
Dimensions (without handle):: 1843x690x20 mm (72.56x27.17x0.79 in)
Dimensions (folded):: 460*690*80mm (18.11*27.17*3.15in)
Weight:: 7.20kg/15.87lb
