Samland 12V 100Ah LiFePO4 Deep Cycle Lithium Battery

Samland 12.8V 100Ah LiFePO4 deep-cycle battery with 1,280Wh nominal energy, an LCD state-of-charge display and an integrated battery-management system. It is intended for suitably matched camping, caravan, 4WD, marine and auxiliary-power installations.

This is a deep-cycle house battery, not an engine-starting battery. Actual usable energy and runtime depend on load, temperature, cabling, inverter efficiency and the operating reserve maintained.

Key specifications

• Nominal voltage: 12.8V
• Rated capacity: 100Ah at 0.2C
• Nominal energy: 1,280Wh
• Recommended charging current: 20A
• Maximum charging current: 50A
• Listed discharge current: 50A
• Maximum continuous current: 80A
• Charging voltage: 14.0V–14.6V
• Charge temperature: 0°C to 45°C
• Discharge temperature: -20°C to 60°C
• Ingress-protection rating: IP55
• Dimensions: 328 × 172 × 216mm
• Weight: 12.5kg
• Terminal: M6
• SKU: V1060-LF100

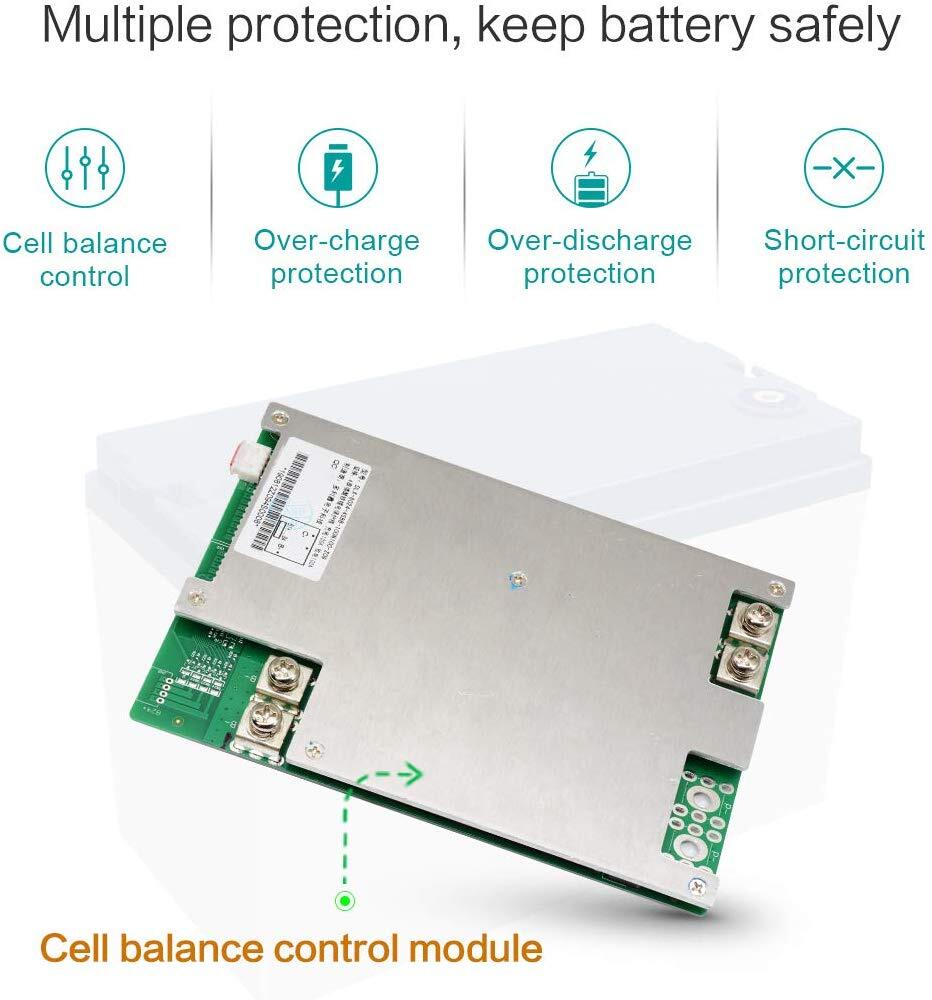

Integrated BMS and LCD display

The supplier lists BMS protection for overcharge, over-discharge, over-current and over-temperature, together with internal cell balancing. The LCD display provides a convenient battery-status indication. These features do not replace correctly rated fusing, isolation, cables or professional installation.

Charging and inverter compatibility

Use a charger, MPPT solar controller or DC-DC charger with a LiFePO4 profile that remains within the 14.0V–14.6V and 50A limits. Do not assume an existing lead-acid charger is suitable without checking its complete charge profile.

Match any power inverter to the battery's 80A maximum continuous-current rating, allowing for conversion losses, appliance start-up demand and simultaneous DC loads.

Series and parallel connections

The supplier lists support for series expansion up to 51.2V and up to two batteries in parallel. Only combine identical batteries of the same model, age and state of charge, and follow the current manual for balancing, protection and cable requirements.

Compare all camping lithium batteries, the broader LiFePO4 battery range and all deep-cycle batteries.

Frequently asked questions

How much energy does this 100Ah battery store?

Its nominal energy is 1,280Wh. Usable output will be lower after system losses and any reserve maintained for battery life.

Can it replace an AGM battery?

It may suit many AGM replacement applications, but the charger, solar controller, DC-DC charger, inverter, battery monitor, wiring and low-voltage settings must all be compatible with LiFePO4 chemistry.

Can it be charged below 0°C?

No. The listed charging range begins at 0°C.
