Samland 12V 200Ah LiFePO4 Deep Cycle Lithium Battery

Samland 12.8V 200Ah LiFePO4 deep-cycle battery with 2,560Wh nominal energy, an LCD state-of-charge display and an integrated battery-management system. It is designed for suitably configured caravan, camping, 4WD, marine and off-grid auxiliary systems.

This is a deep-cycle house battery, not an engine-starting battery. Confirm its physical size, charging limits and 100A continuous-current rating against the complete system before ordering.

Key specifications

• Nominal voltage: 12.8V
• Rated capacity: 200Ah at 0.2C
• Nominal energy: 2,560Wh
• Recommended charging current: 100A
• Maximum charging current: 100A
• Listed discharge current: 100A
• Maximum continuous current: 100A
• Charging voltage: 14.0V–14.6V
• Charge temperature: 0°C to 45°C
• Discharge temperature: -20°C to 60°C
• Ingress-protection rating: IP55
• Dimensions: 522 × 238 × 217mm
• Weight: 23.5kg
• Terminal: M6
• SKU: V1060-LF200

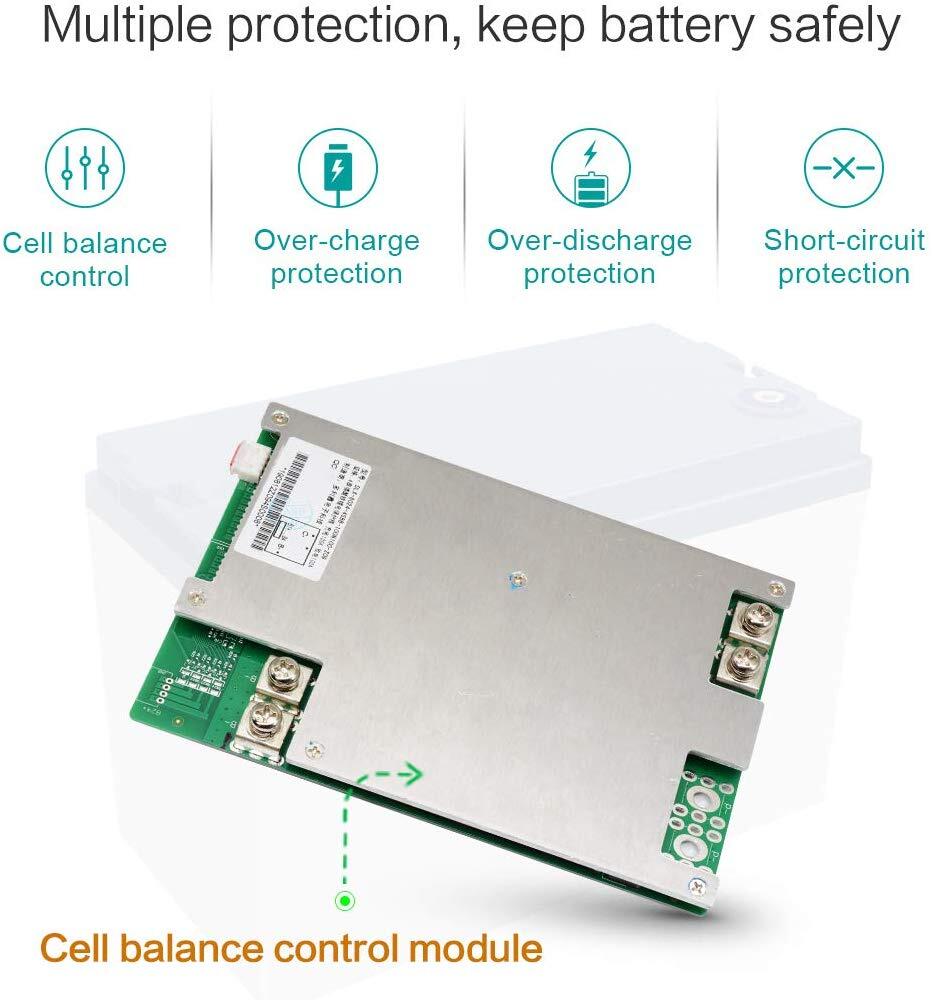

Integrated BMS and LCD display

The supplier lists BMS protection for overcharge, over-discharge, over-current and over-temperature, plus internal cell balancing. The LCD display provides a convenient battery-status indication. Correct fusing, isolation, cable sizing and secure installation are still required.

Charging and inverter compatibility

Use a LiFePO4-compatible charger, MPPT solar controller or DC-DC charger within the listed 14.0V–14.6V and 100A limits. Do not treat it as a direct AGM swap until every charging source and low-voltage setting has been checked.

Size any power inverter from the 100A continuous-current limit, including inverter losses, start-up surge and simultaneous loads. Capacity in amp-hours does not by itself confirm inverter compatibility.

Series and parallel connections

The supplier lists support for series expansion up to 51.2V and up to two batteries in parallel. Only connect identical batteries of the same model, age and state of charge, using balanced cabling and suitable protection in accordance with the current manual.

Compare all camping lithium batteries, the wider LiFePO4 battery range and all deep-cycle batteries.

Frequently asked questions

How much energy does this 200Ah battery store?

Its nominal energy is 2,560Wh. Actual usable output depends on system losses, temperature, load and the operating reserve maintained.

Can it run a large inverter?

Only when the inverter's DC demand and start-up surge remain within the battery's 100A continuous-current limit and the installation uses appropriately rated cables, fusing and isolation.

Can it be charged below 0°C?

No. The listed charging range begins at 0°C.
