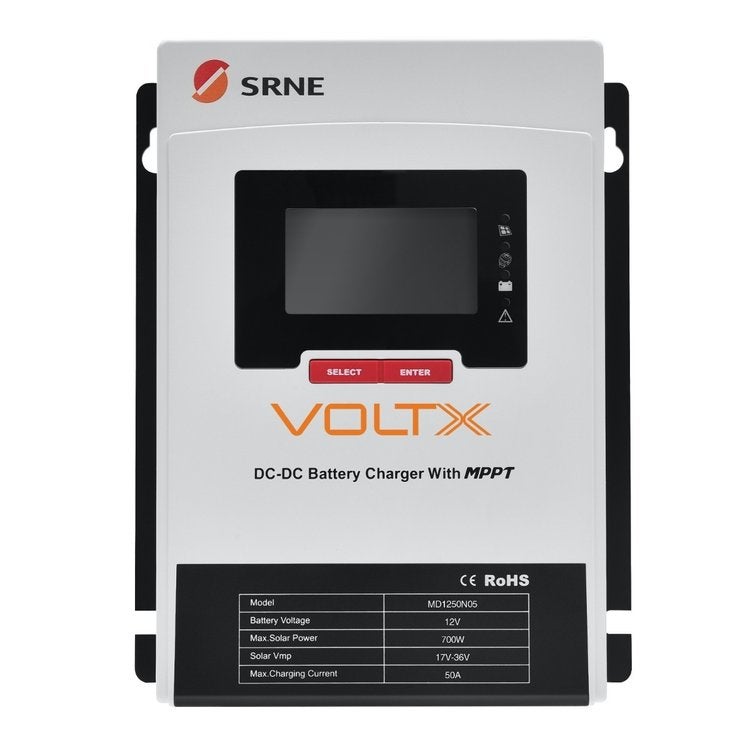

SRNE VoltX 12V 50A MPPT DC to DC Lithium Battery Charger with Bluetooth
SRNE VoltX 12V 50A MPPT DC to DC Lithium Battery Charger with Bluetooth
Couldn't load pickup availability
Charge a 12V auxiliary battery from the vehicle charging system or a compatible solar array with the SRNE VoltX 50A MPPT DC-DC charger. This dual-input charger combines alternator charging, MPPT solar charging and built-in Bluetooth monitoring for caravan, 4WD, camper and marine auxiliary-power systems.
Key Features
- Rated charging current: 50A
- Auxiliary battery system: 12V
- Auxiliary battery operating range: 9–16V DC
- Compatible profiles listed for sealed, gel, vented lead-acid, LiFePO4 and user-defined batteries
- Vehicle input support for conventional and listed smart/Euro 6 alternator voltage ranges
- MPPT solar input with greater than 99% stated tracking efficiency
- Built-in Bluetooth for compatible mobile-app monitoring and settings
- Protection functions for overheating, over-current, short circuit and open circuit
- External remote-switch support
- Three-year listed warranty
Solar Input Specifications
| Maximum PV input voltage | 55V DC |
|---|---|
| MPPT operating-voltage range | 17–36V |
| Maximum PV input current | 45A |
| Recommended PV input power | 700W |
| Solar charging mode | Buck MPPT |
Before connecting solar panels, calculate the complete array open-circuit voltage and short-circuit current. Both must remain within the controller limits under expected operating conditions. Do not select a solar array from wattage alone.
Vehicle and Battery Compatibility
The charger lists a 12V/24V starter-battery system input and a maximum generator input voltage of 32V DC. Its auxiliary-battery output is for a 12V bank. Confirm the vehicle alternator type, required trigger wiring, battery manufacturer's permitted charging current and the charger's selected battery profile before installation.
A 50A charger requires appropriately sized positive and negative cable, fuses near the batteries, secure terminations and suitable ventilation. Long cable runs and undersized conductors can create excessive voltage drop and heat. Professional installation by a qualified auto electrician is recommended for high-current vehicle systems.
Specifications
| Rated charge current | 50A |
|---|---|
| Auxiliary battery voltage range | 9–16V DC |
| Maximum alternator input voltage | 32V DC |
| Maximum alternator input current | 35A |
| Maximum charging conversion efficiency | 98% stated |
| Operating temperature | -35°C to 65°C |
| Ingress rating | IP32 |
| Dimensions | 221 × 175.8 × 82.4mm |
| Included | 1 × DC-DC lithium battery charger |
Build a Compatible Dual-Battery System
Compare the full range of DC-DC battery chargers, then match the charger with a suitable lithium battery or AGM battery. If using solar input, confirm the exact panel voltage and current before selecting from our fixed solar panels or solar blankets.
Frequently Asked Questions
Can this charger use alternator and solar input?
It provides vehicle-generator charging and MPPT solar charging. Input behaviour and priority should be configured and installed according to the supplied manual.
Can it charge a LiFePO4 battery?
LiFePO4 is among the listed battery profiles. Confirm the battery manufacturer's maximum charging current and select the correct charger settings before use.
Can I connect a 700W solar array?
700W is the listed recommended PV input power, but the array must also remain within the 55V maximum PV voltage, 17–36V MPPT range and 45A maximum PV input current.
