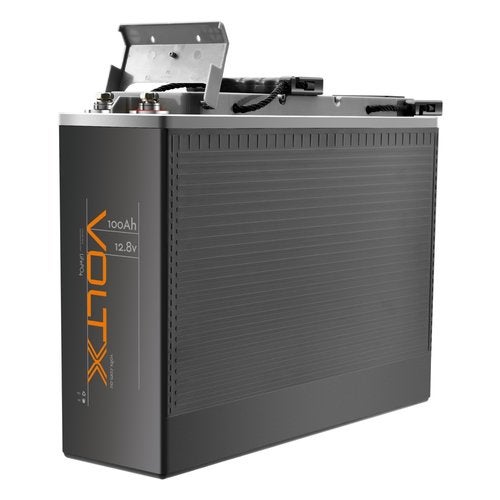

VoltX 12V 100Ah Slim Lithium LiFePO4 Battery Premium Plus - With Built-in BMS

VoltX 12V 100Ah Slim Premium Plus LiFePO4 battery

The VoltX 12V 100Ah Slim Premium Plus stores 1,280Wh of nominal energy in a narrow 110mm-wide case. Its slimline format and approximately 12kg weight suit compatible caravan, 4WD, canopy and off-grid installations where mounting space is limited.

Key benefits

• 100Ah usable capacity and 1,280Wh nominal energy
• 100A maximum continuous discharge and 300A maximum discharge for up to five seconds
• Integrated battery-management protection and prismatic LiFePO4 cells
• Approximately 4,000 cycles under the stated test conditions
• Series and parallel connection are supported subject to the manufacturer’s installation limits
• Three-year warranty

Specifications

Installation and charging

Before replacing an AGM or other lead-acid battery, confirm that the mains charger, solar controller, alternator-charging equipment, cabling and protection are suitable for LiFePO4. A physical drop-in fit does not automatically mean the existing charging system is compatible.

Compare compatible MPPT solar controllers and DC–DC chargers. When selecting a power inverter, calculate continuous DC current and start-up surge and keep demand within the 100A continuous and 300A five-second limits.

Browse more slimline lithium batteries, the complete LiFePO4 battery range or other deep-cycle batteries.

Package contents

• 1 × VoltX 12V 100Ah Slim Premium Plus LiFePO4 battery

Frequently asked questions

How wide is the battery?
The case is 110mm wide, with overall dimensions of 395 × 110 × 297mm.

Can it replace an AGM battery?
It may fit some AGM battery locations, but every charging source and the system protection must be verified for LiFePO4 compatibility before installation.

Can it charge below 0°C?
No. The published charging range starts at 0°C.
