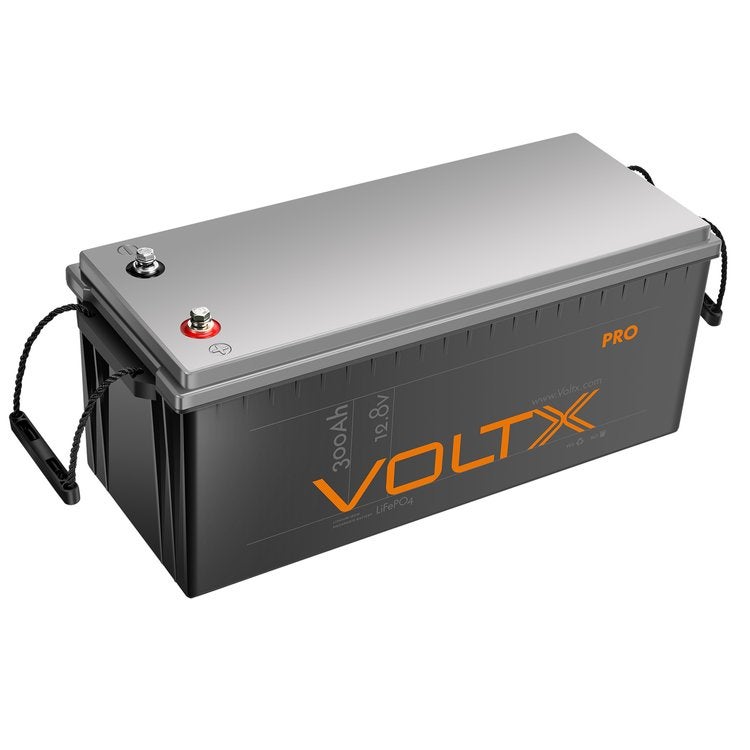

VoltX 12V 300Ah Pro LiFePO4 Battery

Discover the power of our 300Ah LiFePO4 Battery, designed with a state-of-the-art lithium battery management system that continuously monitors every cell, ensuring peak performance and extended life. Unlike traditional gel or lead-acid batteries, lithium batteries are safer, lighter, and more powerful, offering a longer service and shelf life.

This 12V 300Ah battery is the ideal drop-in upgrade for replacing your old, heavy batteries. Experience the benefits of a sealed, maintenance-free battery that's perfect for your off-grid system today!

FEATURES

• Constructed with advanced LiFePO4 cells for exceptional performance and longevity.
• Maintenance-free design with no leaks.
• A superior replacement or upgrade for traditional lead-acid batteries.
•


All our battery packs are comprised of prismatic cells and are backed by LiFePO4's signature built-in BMS. They are tested to deliver 100% real capacity and are suitable for parallel and series wiring of up to 6 battery packs.

Specifications

Brand VoltX

Nominal Voltage: 12.8V

Nominal Capacity: 300Ah

Charging Voltage: 14.2-14.6v

Rated Energy: 3840Wh

Rated Discharge Current: 200A

Max. Discharge Current: 300A

Max. Discharge Current 5 sec: 600A

Approx Life Cycles: 4000

Absorption Voltage: 14.4V

Float Voltage: 13.8V

Overcharge Protection: 14.4V

Overcharge Recovery: 14V

Over-discharge Protection: 10.8V

Over-discharge Recovery: 11.2V

Cell Grouping: 4S2P

Working Temperature Range: Charge: 0°C to 45°C | Discharge: -25°C to 65°C

Storage Temperature: -10℃ to 50℃

Battery Cells: Prismatic

Case Material: ABS Plastic

Parallel Connection: Yes, max 6 batteries

Series Connection: Yes, max 6 batteries

Warranty in Years: 5

DIMENSIONS & WEIGHT

Dimensions: 520(L) x 269(W) x 220(H)mm

Weight: 27.4kgs

WHAT'S IN THE BOX

1 x Lithium Battery
