VoltX 24V 100Ah Pro LiFePO4 Deep Cycle Battery

VoltX 24V 100Ah Pro LiFePO4 deep-cycle battery

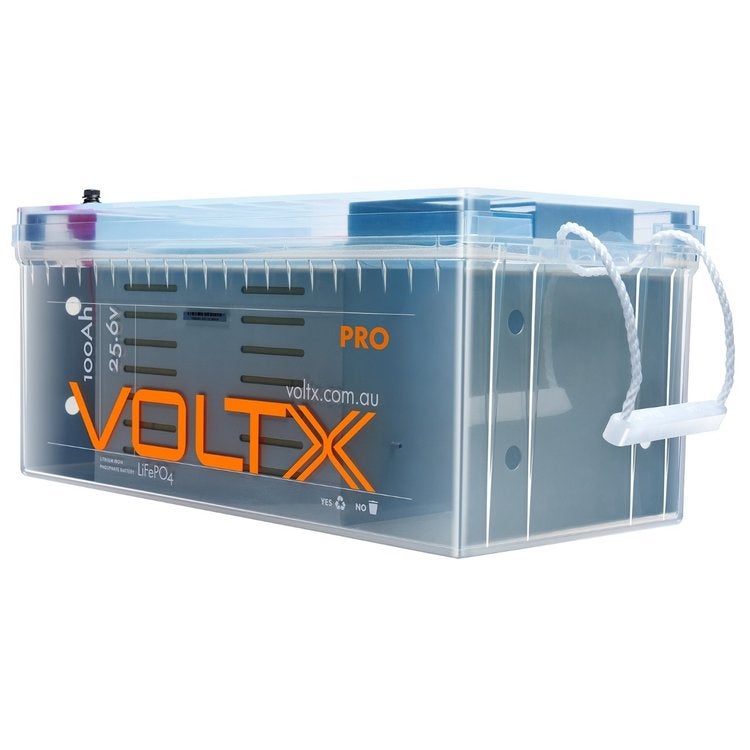

The VoltX 25.6V 100Ah Pro stores 2,560Wh of nominal energy for compatible 24V caravan, marine, backup and off-grid power systems. It uses prismatic LiFePO4 cells with integrated battery-management protection and a clear case that allows visual inspection of the internal construction.

Key benefits

• 25.6V, 100Ah capacity and 2,560Wh nominal energy
• 150A rated discharge, 200A maximum discharge and 450A maximum for up to five seconds
• Approximately 4,000 cycles under the stated test conditions
• Up to six matching batteries in parallel and three in series
• Five-year warranty

Specifications

24V system compatibility

This is a 25.6V nominal battery and must be used with compatible 24V equipment. Do not connect it directly to 12V-only chargers or appliances. Use a suitable lithium charger or MPPT solar controller within the specified 28.4–29.2V charging range.

When selecting a 24V power inverter, calculate continuous DC current plus start-up surge and use the 150A rated discharge current as the conservative continuous system limit unless the manufacturer confirms otherwise.

Browse more LiFePO4 lithium batteries and deep-cycle batteries.

Package contents

• 1 × VoltX 24V 100Ah Pro LiFePO4 battery

Frequently asked questions

Is this a 12V battery?
No. Its nominal voltage is 25.6V, so it is intended for compatible 24V systems.

Can multiple batteries be connected?
The published specification permits up to six matching batteries in parallel and three in series. Follow the manufacturer’s matching, wiring and protection requirements.

Can it charge below 0°C?
No. The published charging range starts at 0°C.
