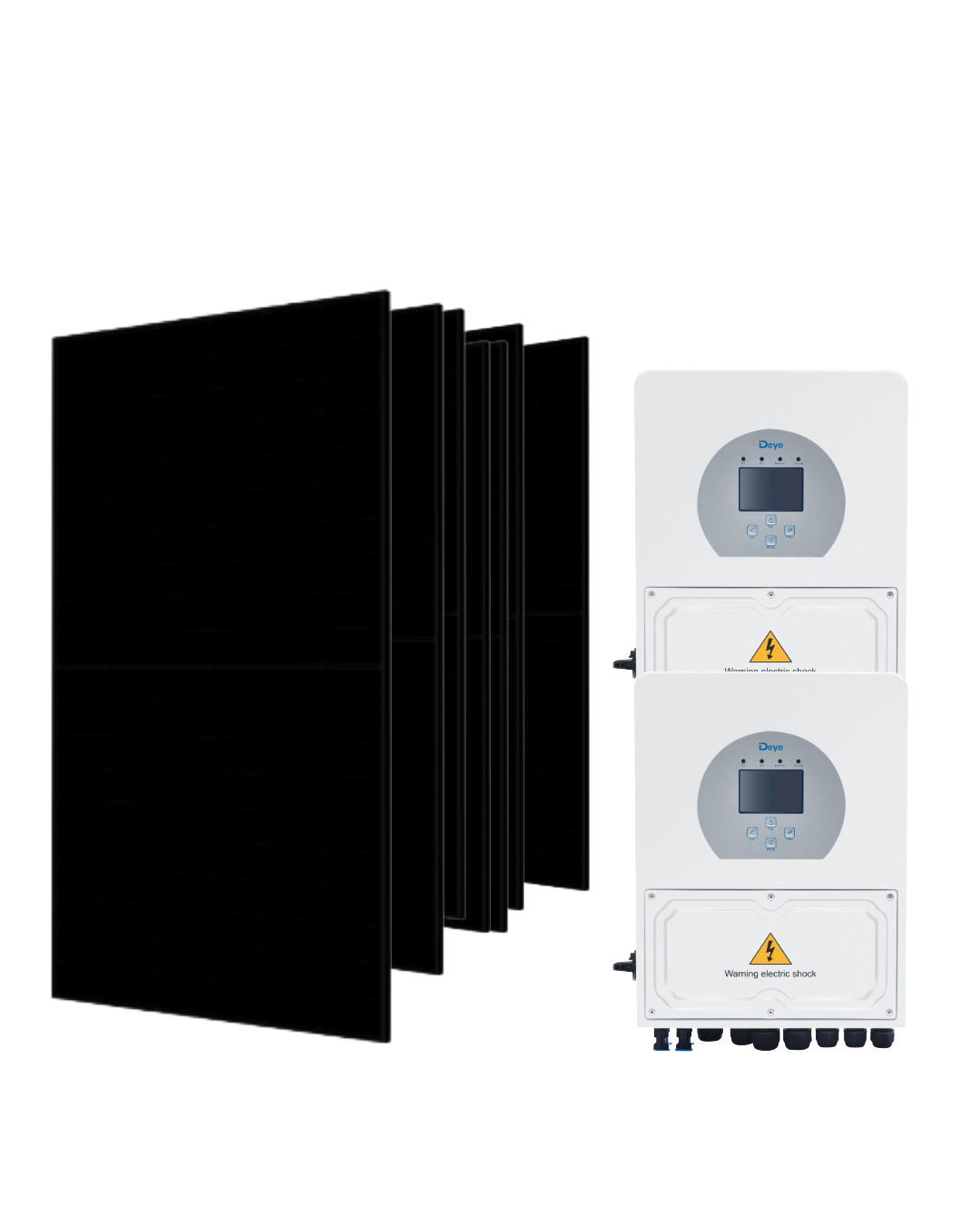

10 kW Solar System Kit — 20 × SunPower TCL 500W Panels + Dual 5 kW Hybrid Inverters + Mounting Rails

Power your home or business with a complete, high-performance solar solution. This 10 kW Solar System Kit combines 20 SunPower TCL 500W premium panels with two advanced 5 kW hybrid inverters, delivering reliable, clean energy for households, off-grid properties, and businesses with high electricity demands.

Designed for Australian conditions, this system is robust, scalable, and battery-ready for future energy independence.

Key Features

• Massive 10 kW Solar Array: 20 × SunPower TCL 500W monocrystalline panels

• Dual 5 kW Hybrid Inverters (48V): 10 kW AC output with redundancy and load balancing

• Advanced MPPT Technology: Optimises energy harvest in varying sunlight conditions

• Battery-Ready: Compatible with 48V lithium or AGM batteries for energy storage

• Durable Design: Built to withstand extreme weather and Australian climate

• Complete Kit: Mounting rails, cabling, isolators, connectors, and installation hardware included

Detailed Specifications

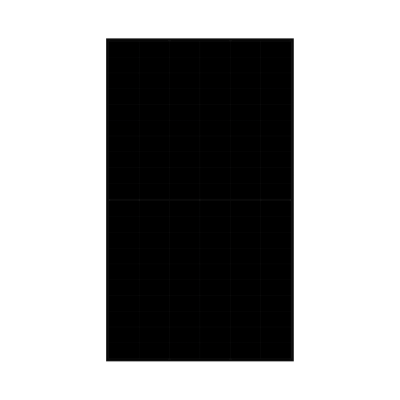

Solar Panels — SunPower TCL 500W (×20)

• Rated Power Output (Pmax): 500 W per panel

• Total DC Array Output: 10,000 W (10 kW)

• Cell Type: Monocrystalline

• Dimensions: 2094 × 1134 × 35 mm (approx.)

• Weight: 25 kg per panel (approx.)

• Open Circuit Voltage (Voc): ~49.5 V

• Short Circuit Current (Isc): ~13.5 A

• Maximum Power Voltage (Vmp): ~41.0 V

• Maximum Power Current (Imp): ~12.2 A

• Maximum System Voltage: 1,500 V DC (IEC)

• Connector Type: MC4 compatible

• Glass: 3.2 mm tempered, anti-reflective

• Frame: Anodised aluminium alloy

• Operating Temperature: –40°C to +85°C

• Mechanical Load: 5,400 Pa snow / 2,400 Pa wind

• Fire Rating: Class C

• Power Tolerance: 0 ~ +3%

• Performance Warranty: 25 years

• Product Warranty: 12 years

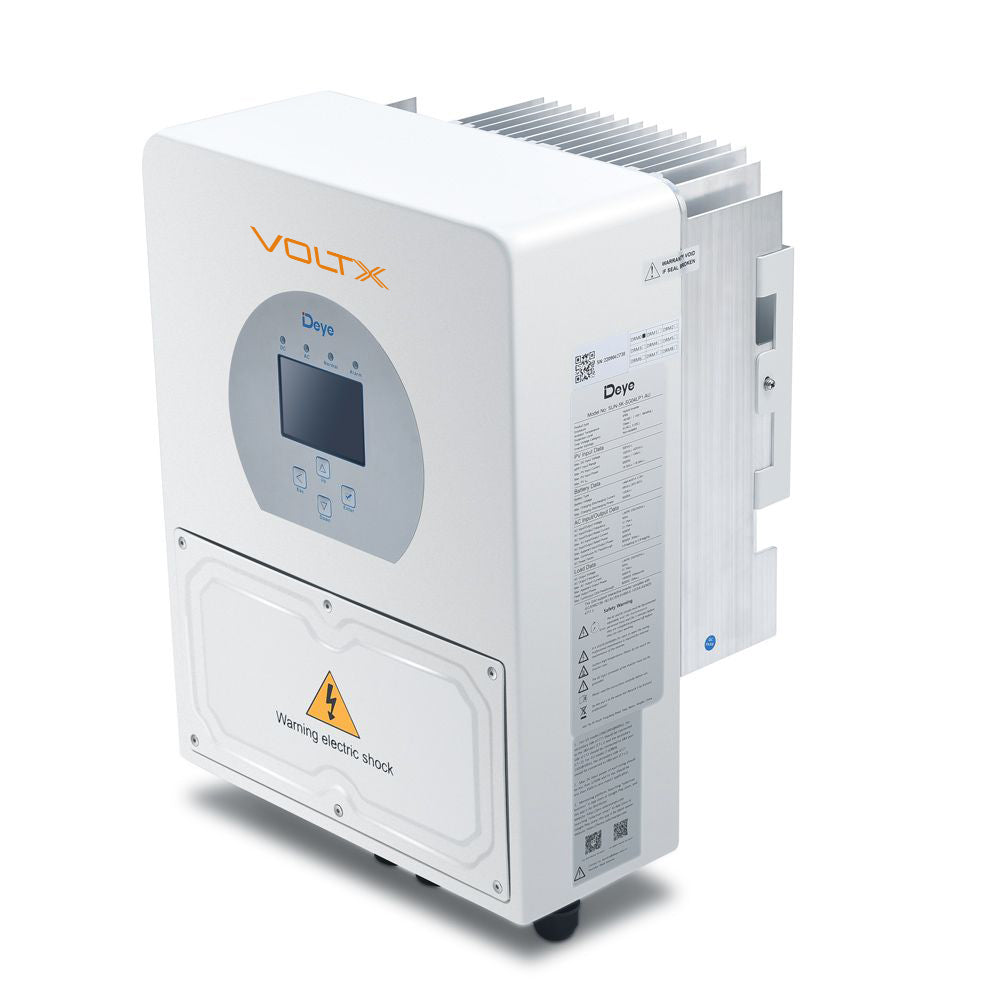

Inverters — 5 kW Hybrid Solar Inverter, MPPT Charger, 48V (×2)

• Rated AC Output Power: 5,000 W per inverter (10 kW total)

• Surge Power: Up to 10,000 W (10 sec)

• AC Output Voltage: 230 V AC ±5%

• AC Output Frequency: 50Hz / 60Hz (auto-sensing)

• Power Factor: 1.0 (unity)

• Waveform: Pure Sine Wave

• Efficiency: 97.6% (peak)

• MPPT Voltage Range: 125 – 425 V DC

• Max PV Array Input Power: 6,500 W per inverter

• Max PV Input Voltage: 500 V DC

• MPPT Trackers: 2 per inverter

• Max PV Input Current per MPPT: 18 A

• Battery Support: 48V lithium-ion / LiFePO4 / AGM / Gel

• Max Charging Current: 120 A

• Max Discharging Current: 120 A

• Protection: Overload, short circuit, over/under voltage, over-temperature, surge

• Cooling: Smart fan

• Operating Temperature: –40°C to +60°C (derating above 45°C)

• Ingress Protection: IP65

• Dimensions: 420 × 310 × 115 mm

• Weight: ~12 kg

• Warranty: 10 years

Mounting & Installation Hardware

• Roof mounting rails (aluminium, anodised)

• Brackets, fasteners, and clamps

• DC cabling (UV-resistant, double-insulated)

• MC4-compatible connectors

• DC isolator switches

• AC isolator (if required)

• Grounding and earthing kit

• User manual and installation guide

What’s Included

• 20 × SunPower TCL 500W Solar Panels

• 2 × 5 kW Hybrid Solar Inverters (48V, MPPT, Pure Sine Wave Output)

• Mounting Rails, Brackets & Fasteners

• DC Cabling & Connectors

• DC Isolation Switches & Safety Equipment

• Grounding / Earthing Components

• Installation & User Manual

Product Overview

This 10 kW Solar System Kit provides high-performance, reliable solar energy for large homes, off-grid properties, or small businesses. The dual inverter design offers redundancy and flexibility, allowing you to maintain power while servicing one inverter or balancing loads efficiently.

The SunPower TCL panels deliver exceptional efficiency and low-light performance, while the hybrid inverters are battery-ready, giving you the option to store excess energy for later use. All components are engineered to handle harsh Australian conditions and come with long-term warranties, ensuring peace of mind.

⚡ Upgrade to the 10 kW Solar System Kit for dependable energy, reduced power bills, and future-proofed solar performance.
