Compare 500W solar panels for caravans, RVs, 4WDs, sheds and high-capacity off-grid systems. StarPower’s 500W range includes fixed shingled, half-cut, bifacial, flexible, N-type and multi-panel bundle options.
A 500W-class panel can provide high charging capacity from a single panel, but the correct choice still depends on roof space, panel dimensions, weight, controller limits and battery capacity. Compare the electrical specifications on each listing rather than selecting by wattage alone.
Choose the Right 500W Panel
-
Fixed shingled panels: rigid framed options for permanent vehicle, shed, cabin or ground mounting.
-
Half-cut panels: use divided cell layouts; compare their dimensions, voltage and current with other fixed models.
-
Bifacial panels: can collect rear-side light when the installation provides clearance and reflective conditions.
-
Flexible panels: lower-profile options for compatible surfaces where weight and mounting height matter.
-

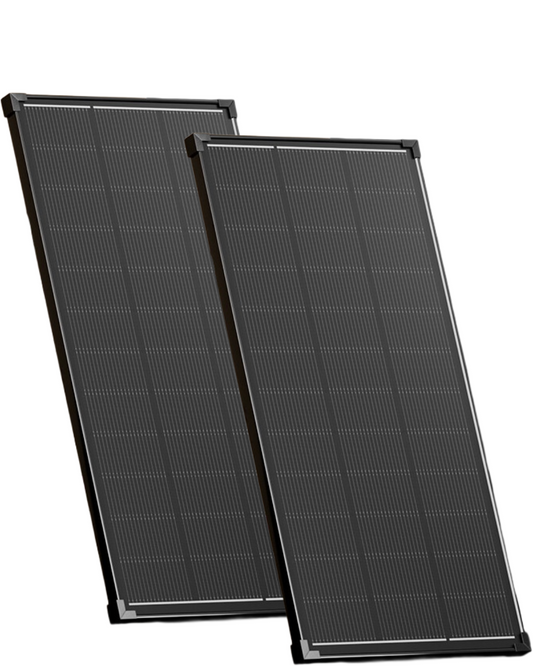

Bundles: two-, four-, six- and eight-panel packs for larger arrays; verify total array voltage, current and mounting requirements.
The strongest-ranking option is the 500W 12V shingled fixed solar panel. You can also compare the 500W half-cut shingled fixed panel and the dedicated flexible solar panel range.
Controller and Battery Sizing
Check Voc and Isc against the controller’s PV input limits and confirm its output is appropriate for the battery bank. A 500W panel may require materially more controller capacity than a smaller panel, especially on a 12V battery system.
For multi-panel arrays, series wiring increases voltage and parallel wiring increases current. Calculate the full cold-weather array voltage and maximum current with suitable safety margins. Compare MPPT solar charge controllers and lithium batteries.
Before Ordering
- Measure the complete mounting area and confirm the panel weight.
- Check Voc, Isc, Vmp and Imp against the controller or inverter.
- Confirm whether mounting equipment, leads or a regulator are included.
- Plan suitable cable, connectors, fuses and isolation.
- Use qualified installation assistance where required.
500W Solar Panel FAQs
Can a 500W panel charge a 12V battery?
Yes, when used through a compatible controller with sufficient PV input and charging-output capacity and the correct battery profile.
Will a 500W panel always produce 500W?
No. Rated wattage is measured under standard test conditions. Heat, shade, angle, weather, dirt, wiring and controller losses affect actual output.
Is one 500W panel better than two smaller panels?
It depends on the available space, shading, controller limits and desired redundancy. Compare the complete array footprint and electrical configuration.
