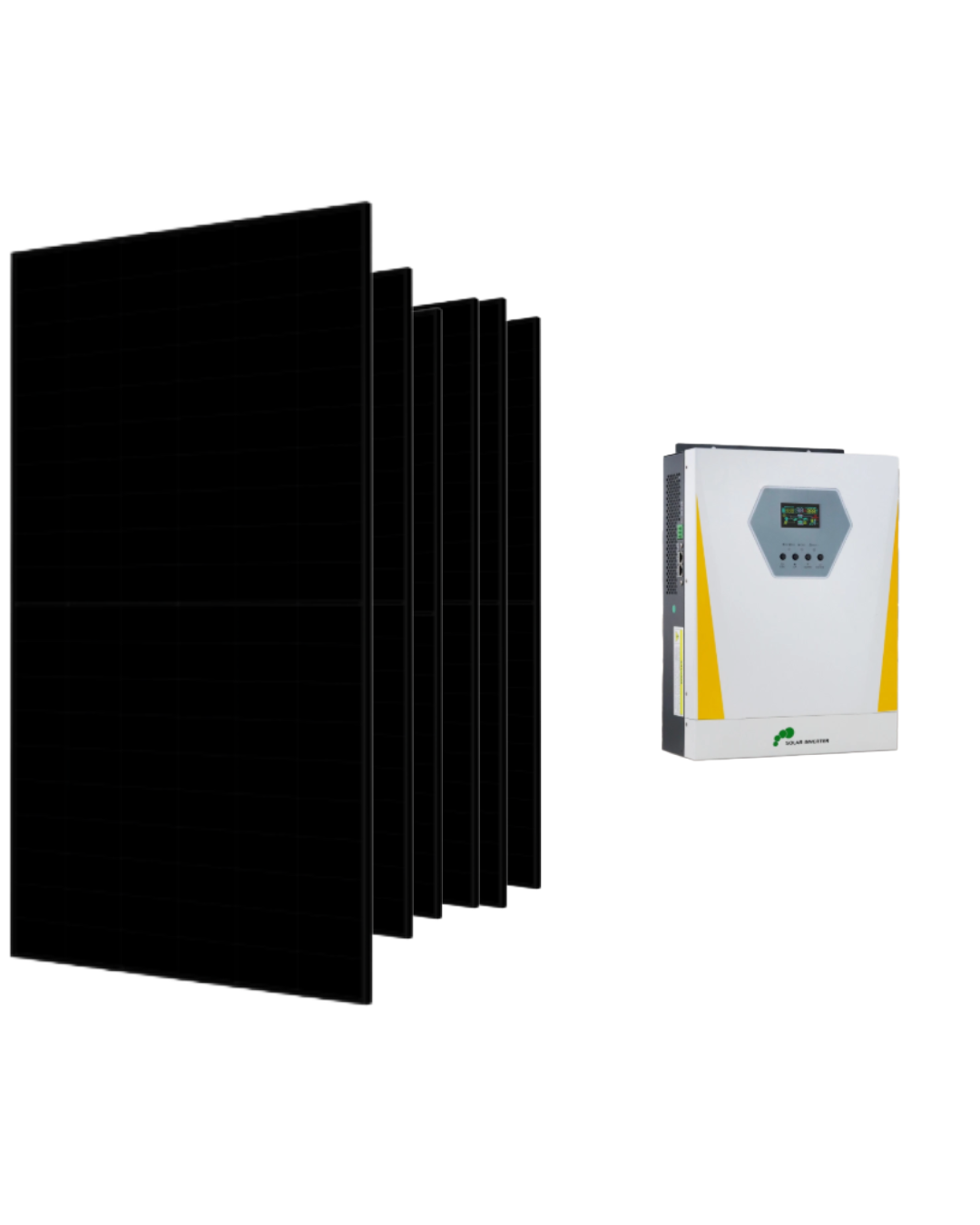

3 kW Solar System Kit — 6 × SunPower TCL 500W Panels + 3,200W Hybrid Inverter + Mounting Rails

This 3kW solar system kit combines six 500W SunPower TCL panels, one 3,200W hybrid inverter and mounting rails for a 3,000W solar array. It is intended as a foundation for a professionally designed residential-style, shed, cabin or off-grid solar project where the confirmed inverter model, battery requirements and mounting components are matched to the installation.

Important: the product title confirms the panels, inverter capacity and mounting rails. Batteries, installation labour and unspecified balance-of-system components should not be assumed to be included. Confirm the current inverter model, rail configuration and complete packing list with StarPower before ordering.

Confirmed 3kW Solar Kit Components

• 6 × SunPower TCL 500W solar panels — 3,000W total nominal panel capacity
• 1 × 3,200W hybrid inverter — exact model and datasheet should be confirmed before system design
• Mounting rails — confirm rail lengths, clamps and roof-specific fixings required for your installation

Items such as batteries, battery cables, AC/DC protection, isolators, connectors, switchboards, earthing equipment and installation services are included only when expressly stated in the current order or written quotation.

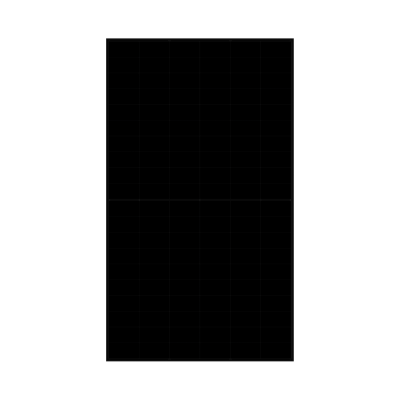

SunPower TCL 500W Panel Details

Six modules represent approximately 13.3 m² of panel surface before allowing for rail overhangs, spacing, roof access and installation clearances. A qualified installer should confirm usable roof area, structural capacity, wind loading, orientation and shading.

Browse the broader SunPower solar panel range or compare other 500W solar panel options.

Is a 3kW Solar System Suitable?

A 3kW array can suit smaller energy requirements, sheds, cabins and selected independent-power applications. Suitability depends on the appliances being supplied, when energy is used, local solar conditions, roof orientation, shading, system losses and—where off-grid operation is required—the usable battery capacity.

Do not size the system from panel wattage alone. Prepare a load list showing each appliance’s running watts, starting surge and expected daily runtime. For off-grid use, include consecutive low-sun days and seasonal variation when calculating solar and battery capacity.

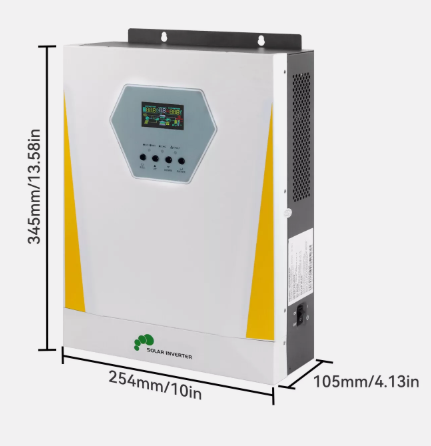

Hybrid Inverter & Battery Compatibility

The included inverter is described as a 3,200W hybrid inverter. Before installation, confirm the exact inverter model and verify:

• Maximum PV open-circuit voltage and MPPT operating range
• Maximum PV input current for the proposed string arrangement
• Battery voltage and supported battery chemistry
• Continuous AC output and appliance surge requirements
• Operating mode, communications and monitoring requirements
• Current Australian approvals for the intended grid-connected or stand-alone application

A battery is not identified in the confirmed kit components above. If storage is required, compare lithium LiFePO4 batteries and have the battery bank sized around daily consumption, autonomy and the inverter manufacturer’s compatibility requirements.

Expected Solar Production

The 3,000W array rating is measured under standard test conditions. Actual daily generation varies by Australian location, season, panel angle and orientation, shading, temperature, soiling, wiring losses and inverter operation. Any production estimate should be based on the installation address and a site-specific design rather than a single national daily-output figure.

Mounting, Installation & Compliance

Mounting requirements differ between tile, metal, ground-mounted and other structures. Confirm the supplied rail package and obtain the correct clamps, roof attachments, fasteners and waterproofing components for the installation.

Solar DC wiring, battery connections and 230/240V AC work can present serious hazards. Grid-connected and fixed electrical installations must be designed, approved and completed by appropriately qualified professionals in accordance with current Australian requirements and the equipment manufacturer’s instructions. The word “hybrid” does not by itself confirm that a particular installation is approved for grid export.

Compare 3kW, 5kW & 10kW System Kits

• 3kW kit: six 500W panels and a 3,200W hybrid inverter; suited to smaller load profiles where the system design confirms capacity.
• 5kW solar system kit: ten 500W panels with dual 3,200W hybrid inverters.
• 10kW solar system kit: twenty 500W panels with dual 5kW hybrid inverters.

For more package options, browse off-grid solar kits Australia.

3kW Solar System FAQs

Does this 3kW kit include a battery?

A battery is not listed among the confirmed components in the product title. Do not assume a battery is included unless it appears in the current written packing list or quotation.

Can this system run a whole house?

That depends on simultaneous loads, appliance starting currents, daily energy use, solar conditions and battery or grid availability. A detailed load assessment is required before making that determination.

Can the kit be connected to the electricity grid?

Grid connection depends on the exact inverter model, current approvals, network requirements and installation design. Confirm these details with an appropriately qualified installer before purchase or connection.

Are all mounting parts included?

The product title confirms mounting rails. Roof-specific hooks, clamps, fasteners, earthing parts and other installation hardware should be confirmed against the current packing list and roof type.

How much roof area is required?

The six listed panels provide approximately 13.3 m² of module surface. Additional space is required for panel spacing, rails, roof edges, access paths and regulatory clearances.

Before Ordering

• Request the current inverter model and datasheet.
• Confirm the complete packing list and freight arrangement.
• Provide the installation postcode, roof type and available roof dimensions.
• Prepare an appliance load list for off-grid or battery-backed applications.
• Have a qualified installer confirm string design, protection, mounting and compliance requirements.

Contact StarPower before purchase if you need the current inverter specification, a confirmed component schedule or assistance comparing this kit with a larger system.
